S230-38-48G adaptor BSP
\ufeff
-

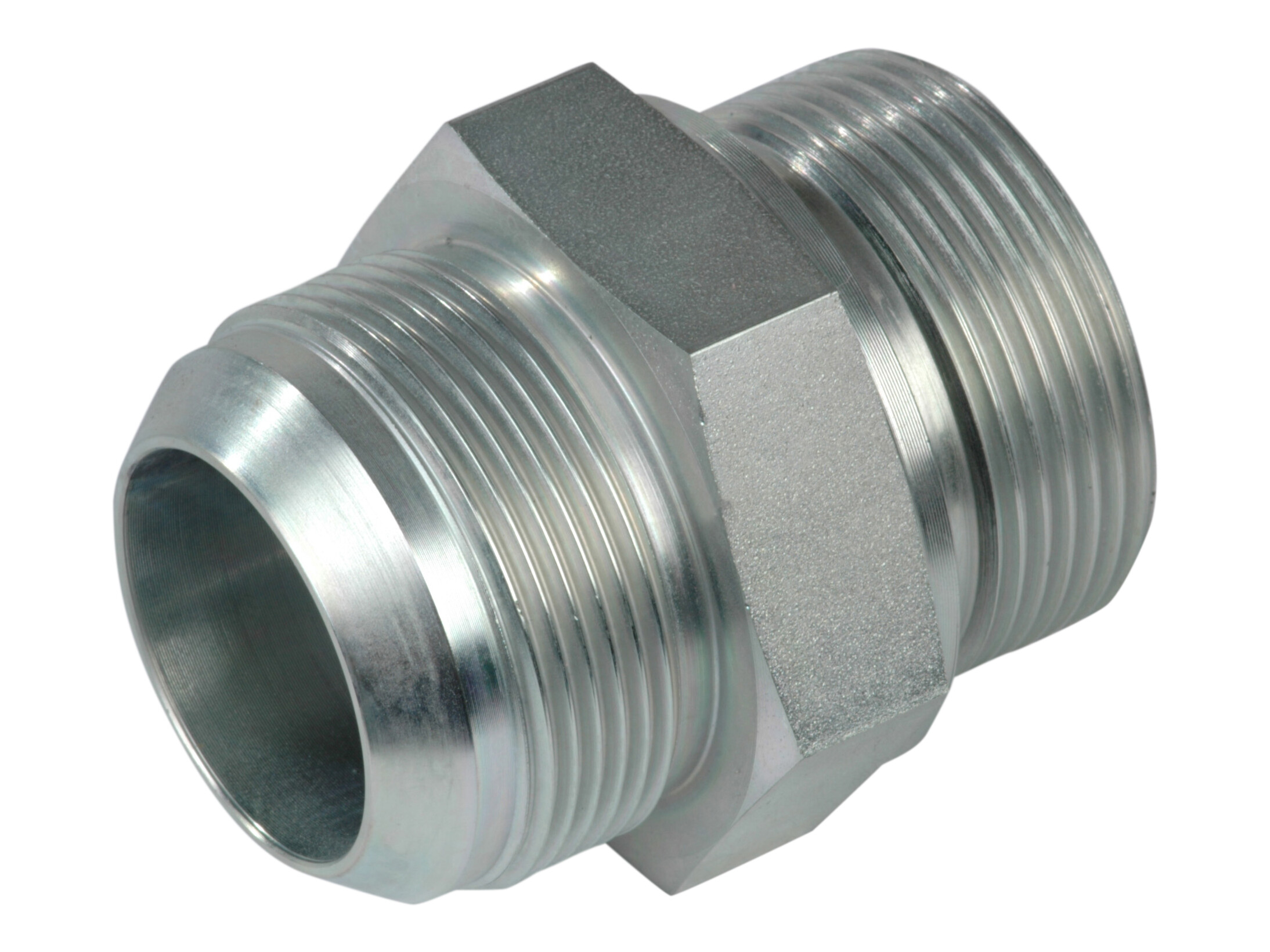

JIC 37° straight basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Varenummer:
M-38-1.1/2WD
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
68 mm
B
27,5 mm
CH
55 mm
D
22 mm
Diameter rør
38 mm
F
G 1.1/2 BSP
Gevind
G 1.1/2 BSP
Gevind udvendig
1.7/8-12 JIC
Gevind udvendig
G 1.1/2 BSP
J
1.7/8-12 JIC
Korrosions resistens
1400 hours salt spray DIN EN ISO 9227
Materiale
Steel
Mærke navn
FOR
Overfladebehandling
Electro-galvanized / White chromatized
Pakningsmateriale
NBR
Standard ISO
ISO 1179
T
38 mm
Temperatur maks.
+120 °C
Temperatur min.
-20 °C
Tryk maks.
250 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295496597
Gross weight
0,53 Kg
Net weight
0,53 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° straight basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
