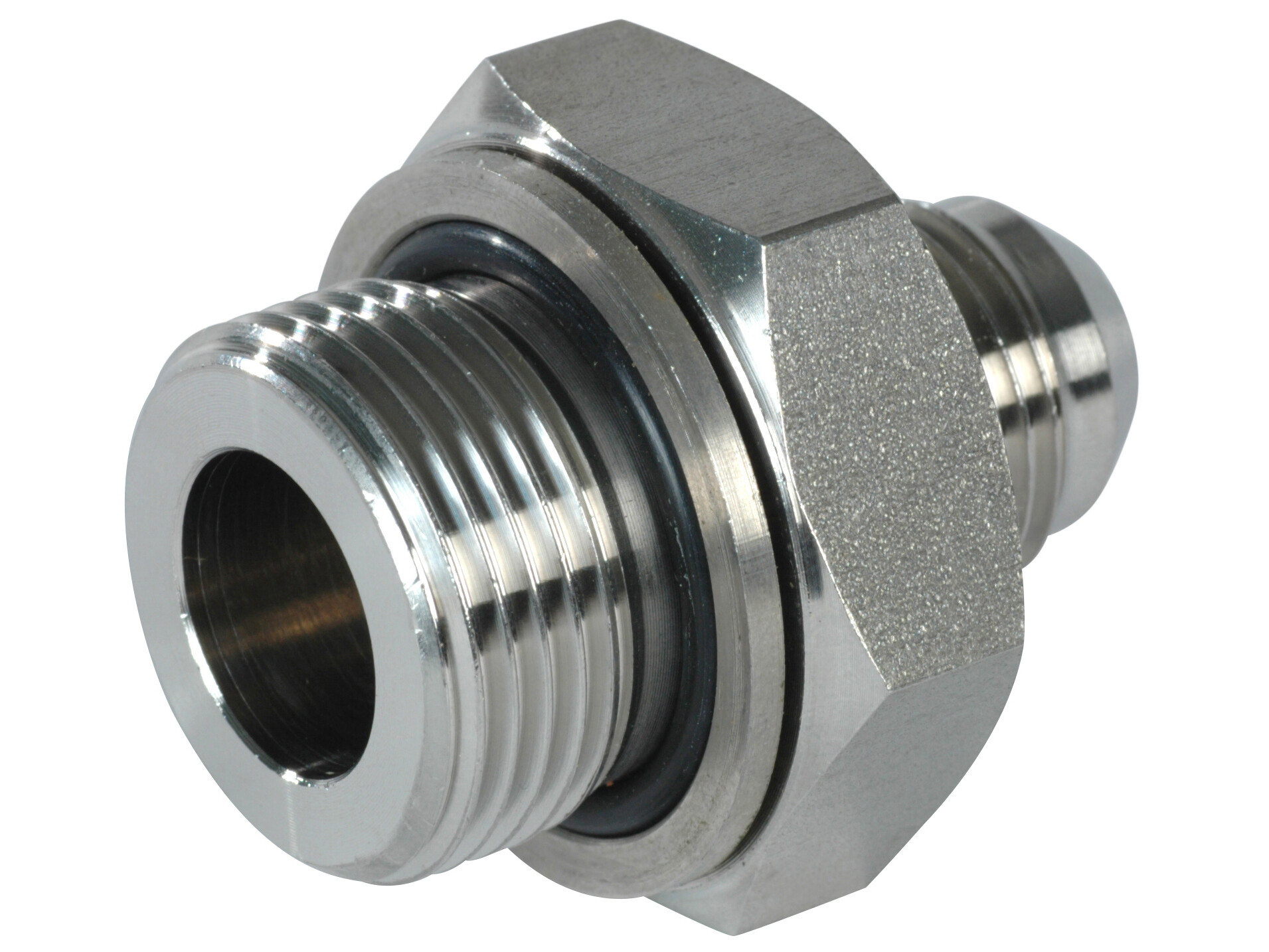

Adaptor BSP AISI316
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
M-06-1/8/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Hydraspecma
Diameter pipe
6 mm
Dimension C
4 mm
Dimension L
29.5 mm
Material
Stainless steel
Material quality
1.4404 / AISI316L
Pressure max.
830 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread
G 1/8 BSP
Thread outer
7/16-20 JIC
Thread outer
G 1/8 BSP
Pakke str.
0 pcs
Stregkode
5704295680873
Brutto vægt
0,02 Kg
Netto vægt
0,02 Kg
Oprindelsesland
ESP
Intrastat varekode
73072910
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
