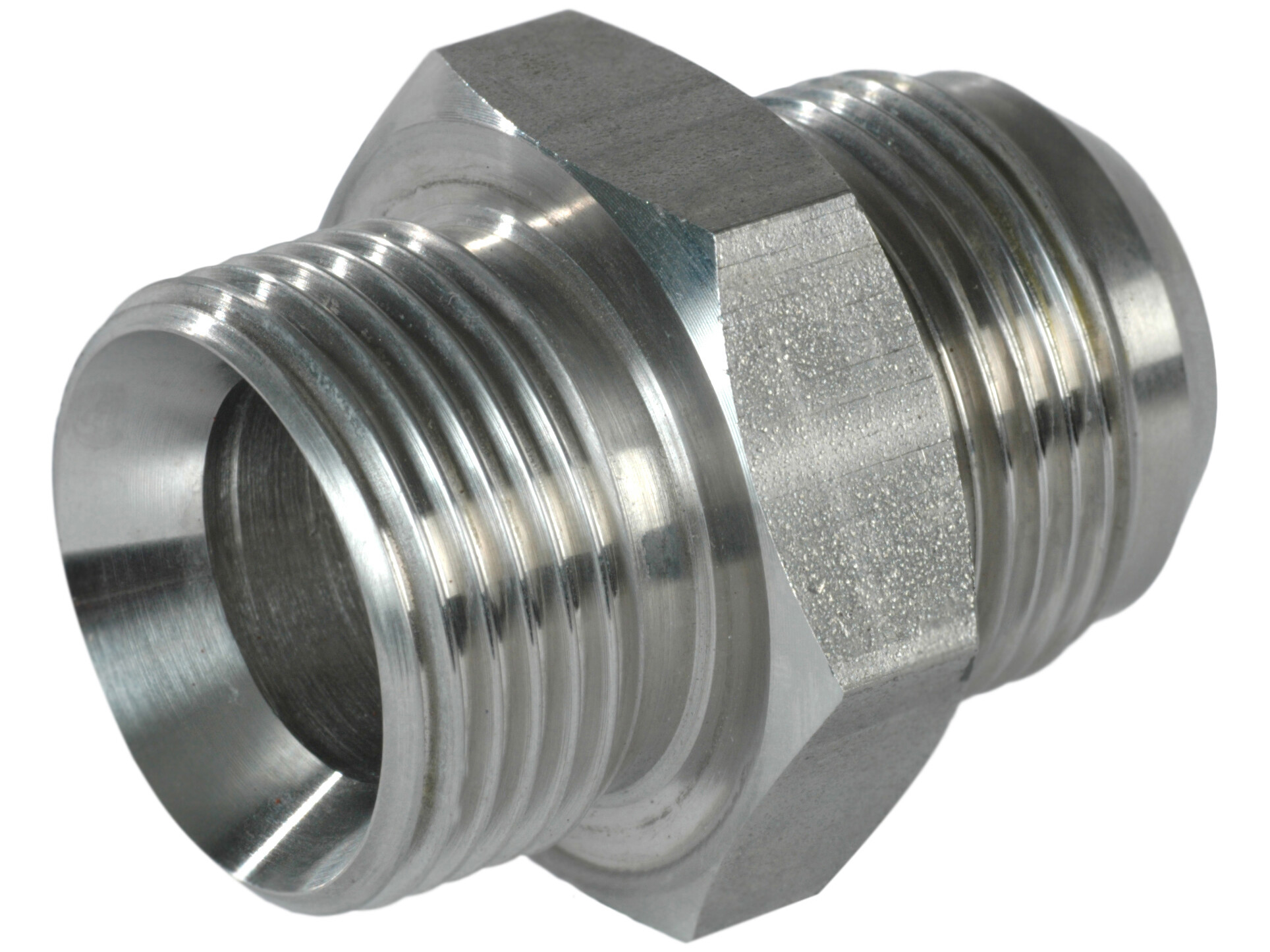

Adaptor BSP AISI316
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Artikelnummer:
M-25-1/71
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Hydraspecma
Diameter pipe
25 mm
Dimension C
21 mm
Dimension L
54 mm
Material
Stainless steel
Material quality
1.4404 / AISI316L
Pressure max.
420 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread
G 1 BSP
Thread outer
1.5/16-12 JIC
Thread outer
G 1 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295451824
Bruttovikt
0,23 Kg
Nettovikt
0,23 Kg
Ursprungsland
ESP
Intrastat artikelkod
73072910
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
