Screw coupling female HSN - DN38 - M42x2 (30S)
Screw coupling female HSN - DN38 - M42x2 (30S)
Partnumber:
HSN-38-F-30S
Package size:
0 pcs
Min. order quantity is:
1 pcs

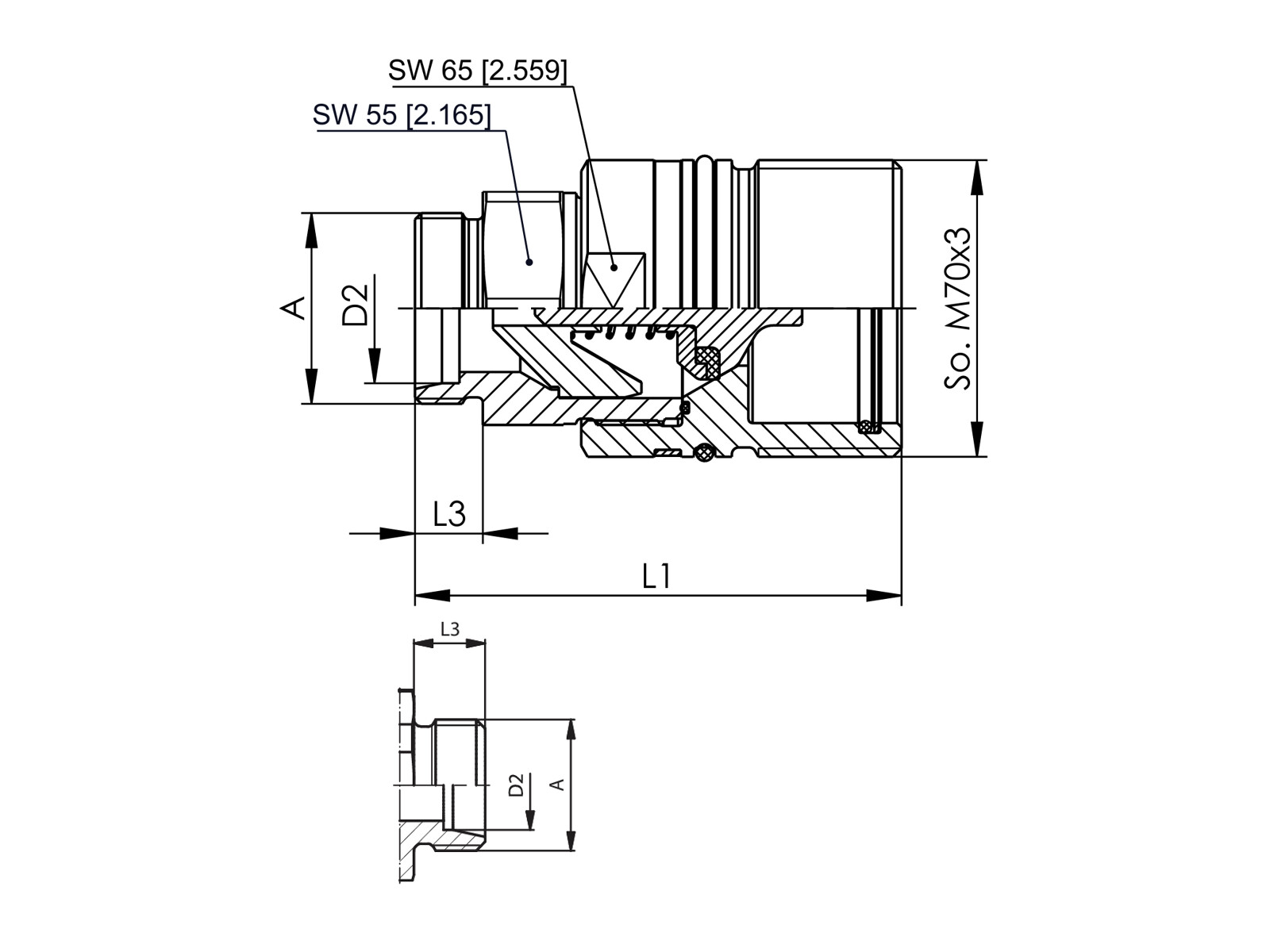

A
M42x2
Brand Name
Stauff
Burst Pressure
1600 Bar
Connection
Screw
D2
30 mm
Disconnection
Screw
Field of application
Construction Machinery, Industrial Hydraulic
Flowrate nominal LMin
684 lpm
ISO size
38
L1
114,7 mm
L3
20 mm
Material
Carbon steel
Model code
QRC-HSN-38-F-30S-S1-W3
Pressure max.
350 bar
Pressurized connection
Allowed
Sealing material
NBR, PTFE (Teflon®), Polyurethane
Series
S
Size
1.1/2 "
Spillage
44,5 ml
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread DIN standard
DIN 3861
Thread outer metric
M42x2
Package size
0 pcs
Barcode
Gross weight
Kg
Net weight
1,549 Kg
Country of origin
deu
Intrastat code
84812010
Screw coupling female HSN - DN38 - M42x2 (30S)
