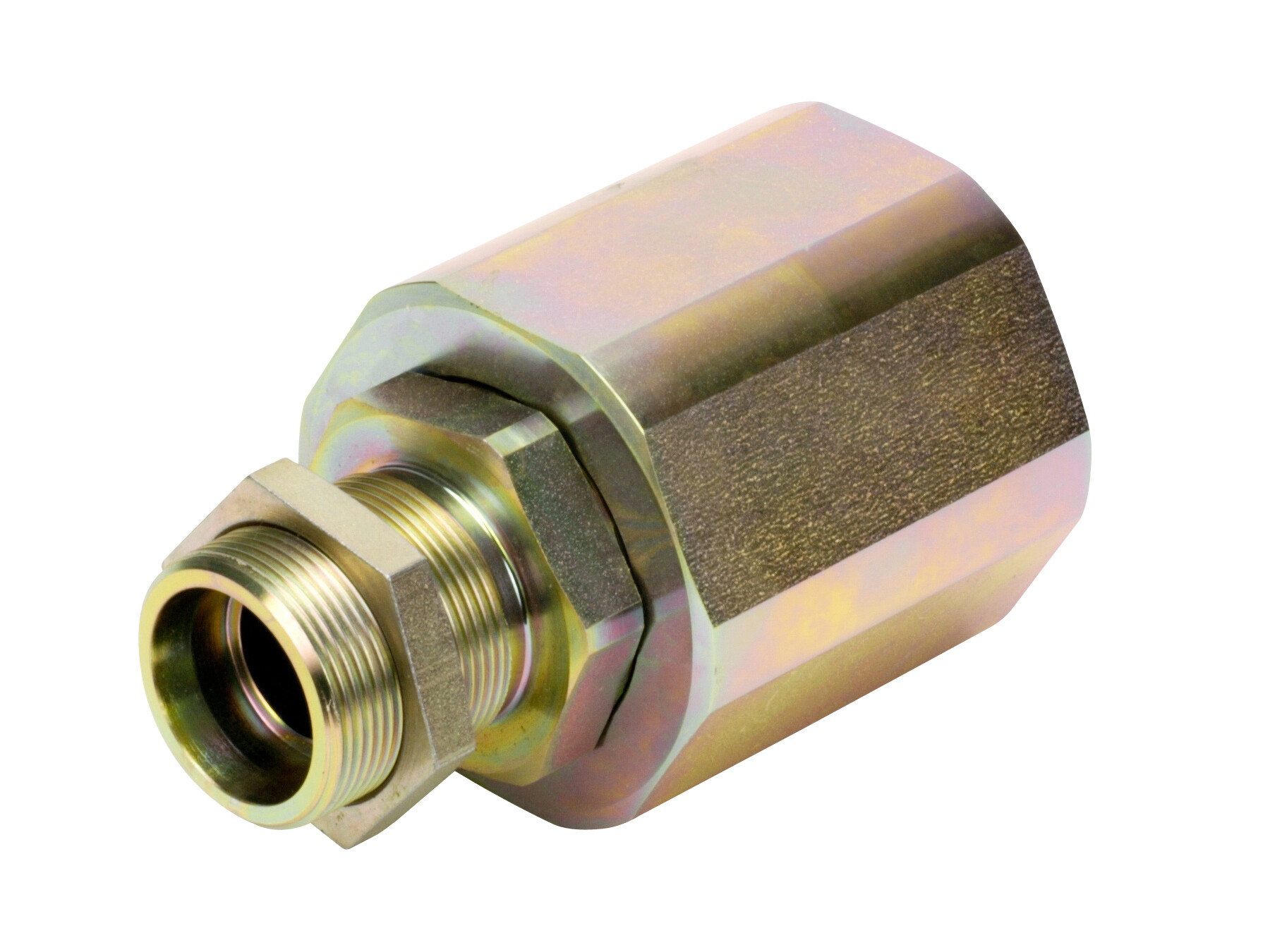

Screw coupling male HS - DN38 - M42x2 (30S) bulkhead

Standard DIN-coupling often used on mobile-cranes and within industry.

BSP female thread.

Can be connected by hand up till an approx. pressure of 50 bar.

Partnumber:
HS25-2-T3042

Package size:
0 pcs

Min. order quantity is:
1 pcs
Screw coupling female HS - DN38 - M42x2 (30S) bulkhead
Varenummer: HS25-1-T3042
Red plastic dust plug M70x3 (For male)
Varenummer: HS25-9-RT
Brand Name
Stauff

Diameter pipe
30 mm

Dimension C
136 mm

Dimension E metric
M42x2

Dimension H
85 mm

Dimension L2
140 mm

Dimension SW
55, 80 mm

Flow rate nominal LMin
350 lpm

ISO size
38

Material
Steel

Model code
QRC-HS-38-M-30SB-B-W66

Pressure max.
350 bar

Sealing material
NBR

Series
S

Size
1.1/2 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread outer metric
M42x2
Pakke str.
0 pcs

Stregkode
5704295238364

Brutto vægt
2,60 Kg

Netto vægt
2,60 Kg

Oprindelsesland
DEU

Intrastat varekode
84812010

Standard DIN-coupling often used on mobile-cranes and within industry.

BSP female thread.

Can be connected by hand up till an approx. pressure of 50 bar.
