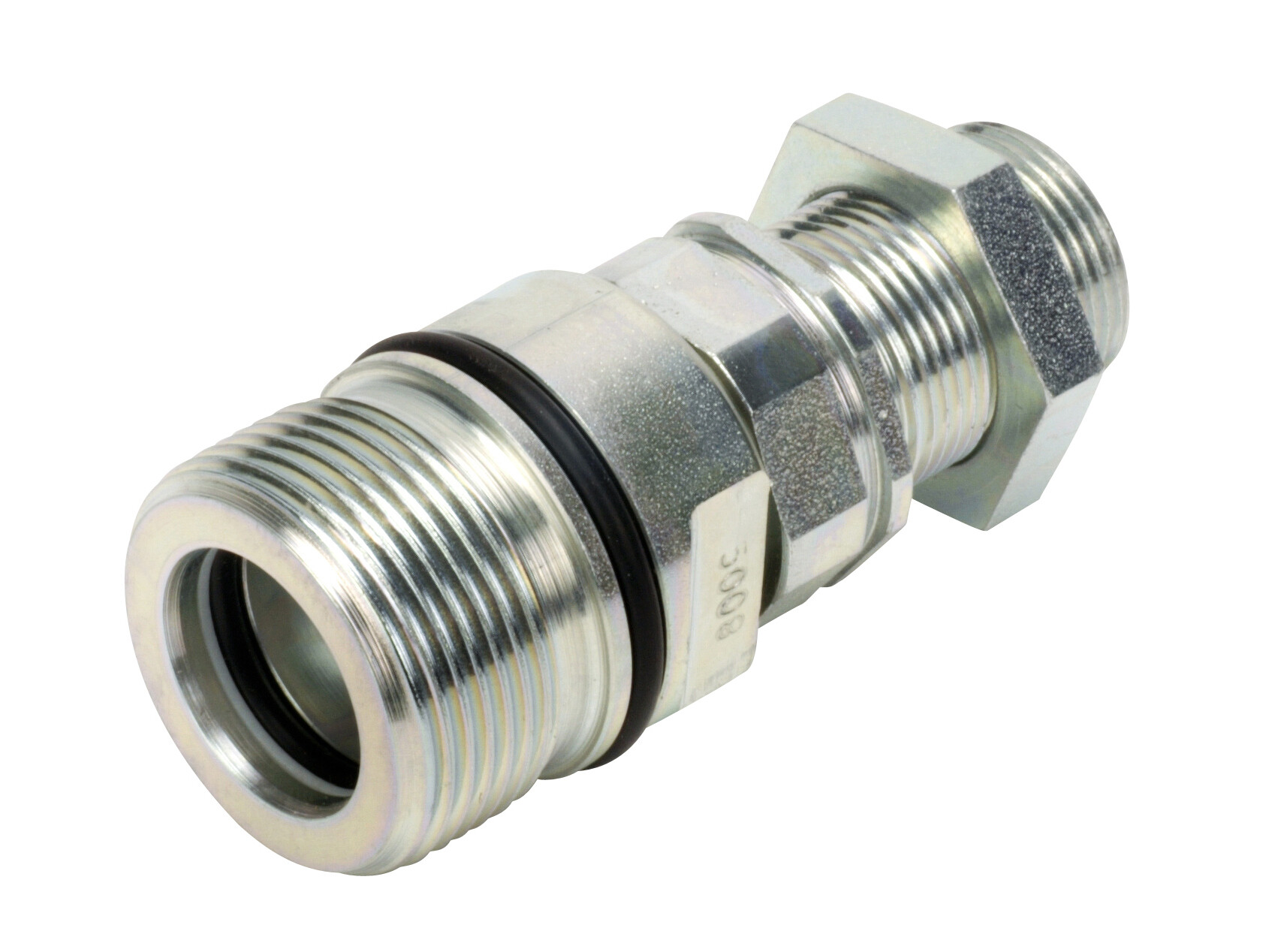

Screw coupling female HS - DN12,5 - M22x1.5 (14S) bulkhead

Standard DIN-coupling often used on mobile-cranes and within industry.

BSP female thread.

Can be connected by hand up till an approx. pressure of 50 bar.

Varenummer:
HS10-1-T1422

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Skruvkoppling p-sats
Varenummer: HS10-REP
Brand Name
Stauff

Diameter pipe
14 mm

Dimension A metric
M22x1,5

Dimension B
83 mm

Dimension D metric
M36x2

Dimension L1
83 mm

Dimension SW
30 mm

Flow rate nominal LMin
80 lpm

ISO size
12.5

Material
Steel

Model code
QRC-HS-12-F-14SB-BT-W66

Pressure max.
400 bar

Sealing material
NBR

Series
S

Size
1/2 "

Standard ISO
ISO 14541

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread outer metric
M22x1,5
Pakke str.
0 pcs

Stregkode
5704295759449

Brutto vægt
0,32 Kg

Netto vægt
0,32 Kg

Oprindelsesland
DEU

Intrastat varekode
84812010

Standard DIN-coupling often used on mobile-cranes and within industry.

BSP female thread.

Can be connected by hand up till an approx. pressure of 50 bar.
