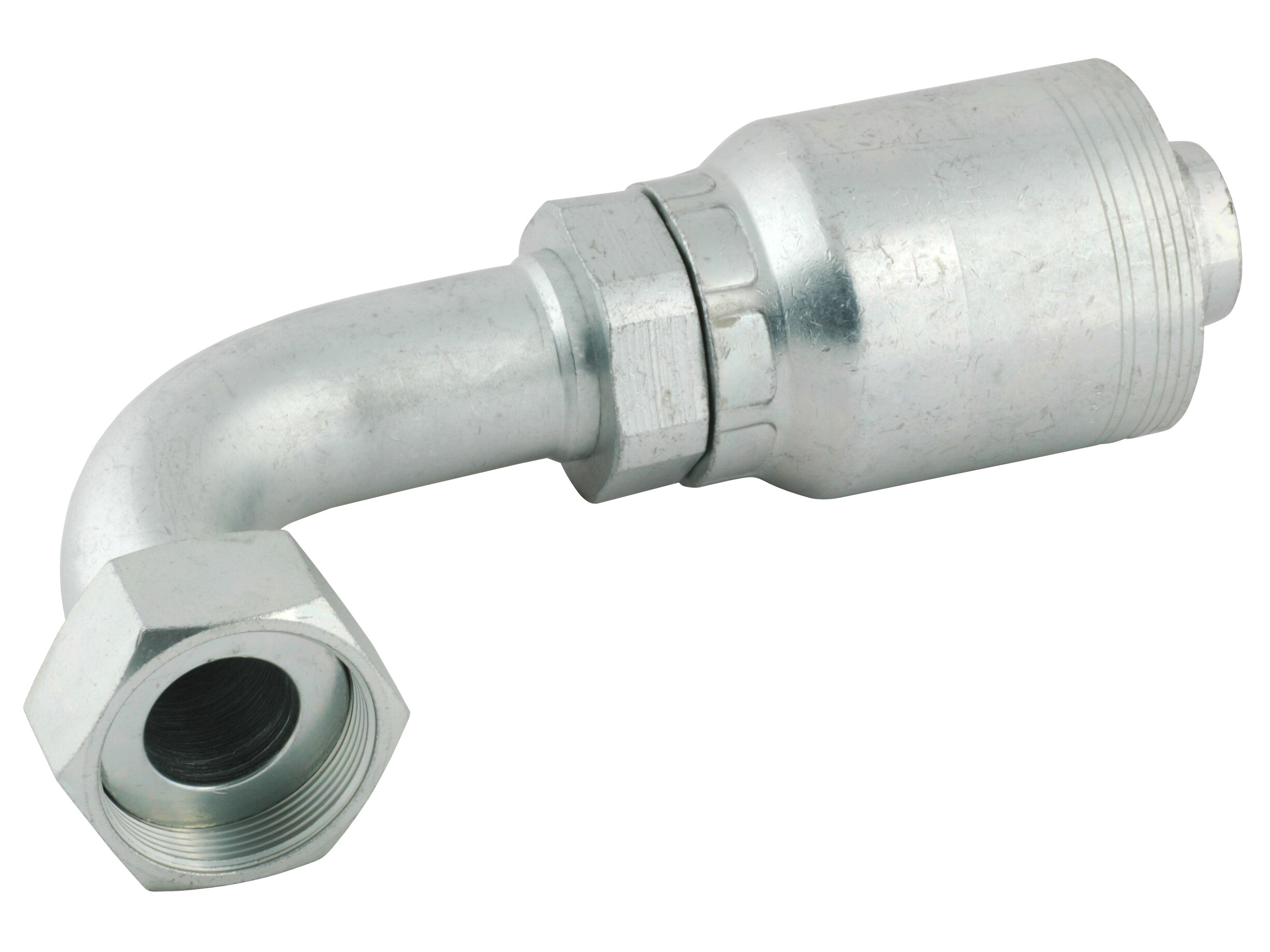

1.1/2" Insert - 2"-12 ORFS female

Connector description: Internally threaded ORFS hose connector with flat sealing surface.

Sealing: O-ring against metal.

Partnumber:

GSM2424FF90

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

2274 mm

Angle

90 °

1323 mm

Corrosion resistance

500 hours salt spray ASTM B-117

1.1/2 BSP

86 mm

60 mm

55 mm

Hose coupling type

With fixed ferrule

Hose size

1.1/2 "

Material

Steel

REACH compliant

Yes

RoHs compliant

Yes

Surface treatment

TuffCoat™

Thread

2-12 ORFS

Torque tightening

200 - 245 Nm

Package size

0 pcs

Barcode

5704334379669

Gross weight

1,66 Kg

Net weight

1,66 Kg

Country of origin

TUR

Intrastat code

73269098

Product information
Measure sketch

Connector description: Internally threaded ORFS hose connector with flat sealing surface.

Sealing: O-ring against metal.
