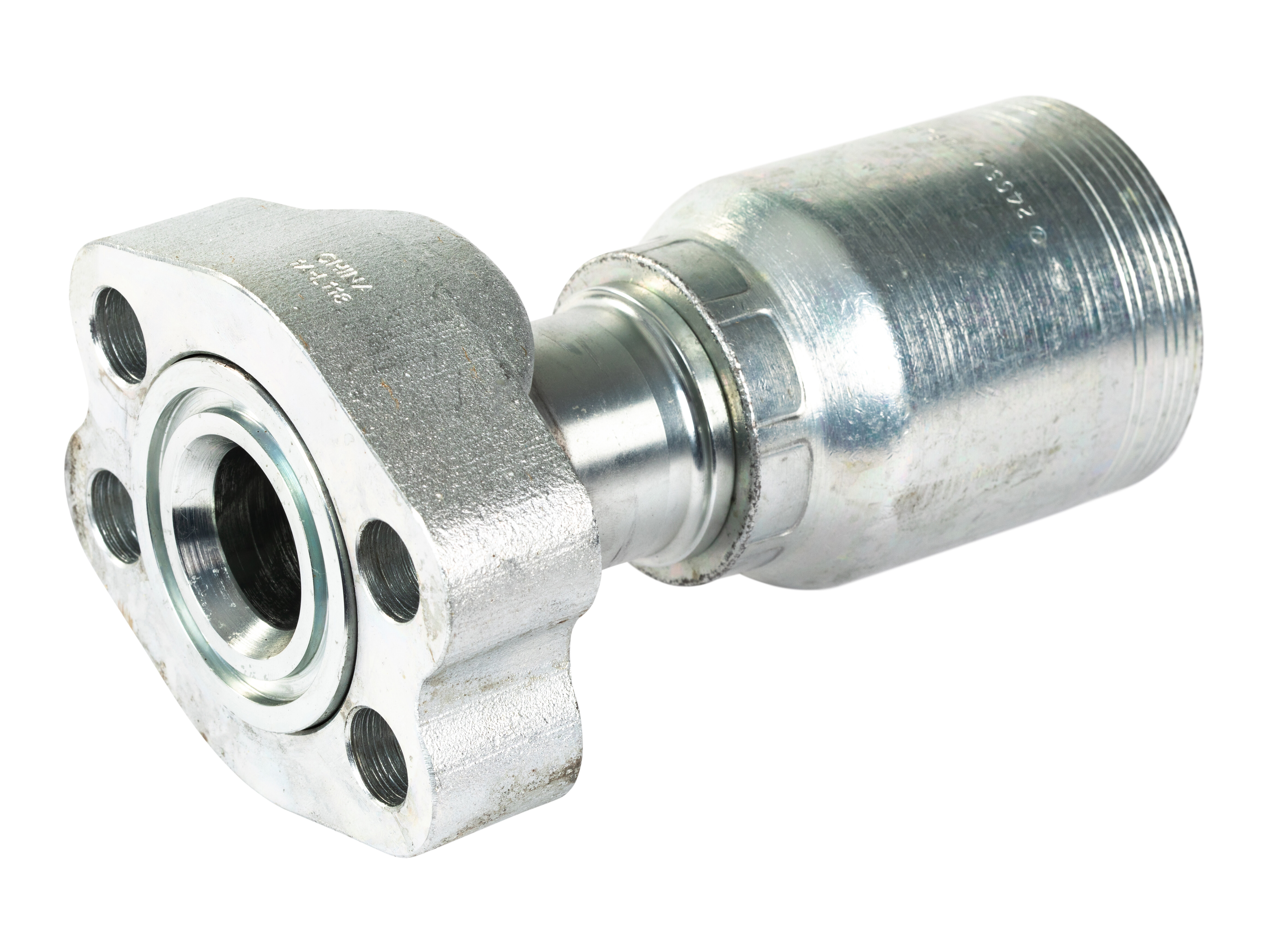

1.1/2" Coupling - 1.1/2" SAE6000 full flange

1.1/2" Coupling - 1.1/2" SAE6000 full flange

Connector description: SAE flanged hose connector with flange bracket included.

Varenummer:

GSM2424PHF

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifikationer
Dimensioner och frakt

Diameter flange

63.5 mm

Dimension A

200 mm

Dimension B

105 mm

Dimension D

1.1/2 "

Dimension K

63.5 mm

Flange

1.1/2 "

Flange SAE/DIN

6000 PSI

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Steel

Model kode

24GSM-24FLHCFM

Mærke navn

Gates

O-ring

47,22X3,53 mm

Overfladebehandling

TuffCoat™

REACH compliant

Yes

RoHs compliant

Yes

Shore

Slangekoblingstype

With fixed ferrule

Slangestørrelse

1.1/2 "

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Tilspændingsmoment

158 - 181 Nm

Tryk maks.

420 bar

Vinkel

0 °

Förpackningsstorlek

0 pcs

Streckkod

5704334598664

Bruttovikt

3,30 Kg

Nettovikt

3,30 Kg

Ursprungsland

USA

Intrastat artikelkod

73269098

Produktinformation
Måttskiss

Connector description: SAE flanged hose connector with flange bracket included.
