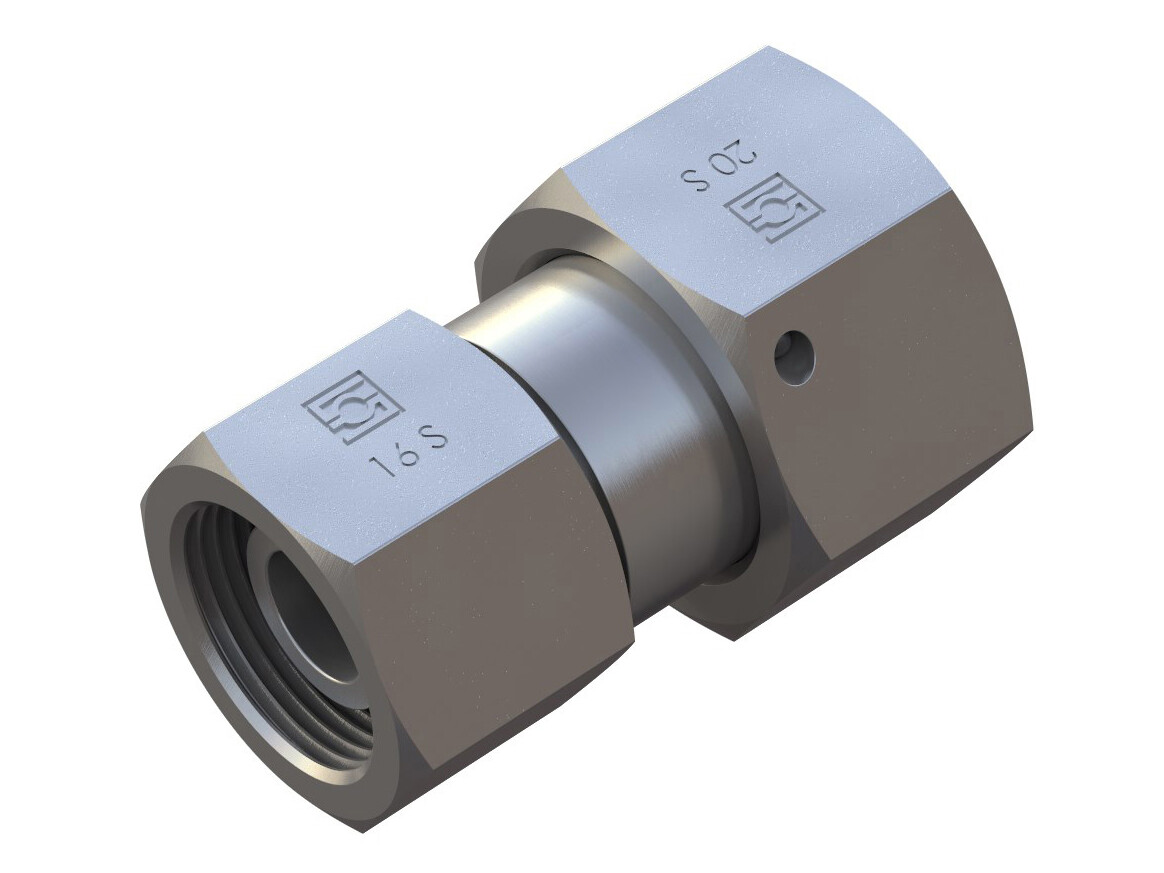

Straight fitting ø22L/15L with O-ring

Partnumber:

FISNV22L15L

Package size:

1 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Diameter pipe

22 - 15 mm

Dimension D1

22 mm

Dimension D2

15 mm

Dimension D3

11 mm

Dimension D4

11 mm

Dimension L1

42 mm

Dimension L2

44.3 mm

Dimension S1

36 mm

Dimension S2

27 mm

Material

Steel

Model code

FI-SNV-22/15L-V-W3-DKO

Pressure max.

250 bar

REACH compliant

Yes

RoHs compliant

Yes

Safety factor

Sealing material

FKM/FPM (Viton®)

Series

Series 1

Surface treatment

Zinc-Nickel plated

Temperature max.

+200 °C

Temperature min.

-25 °C

Package size

1 pcs

Barcode

5704334886280

Gross weight

Net weight

0,198 Kg

Country of origin

deu

Intrastat code

73071110

Product information

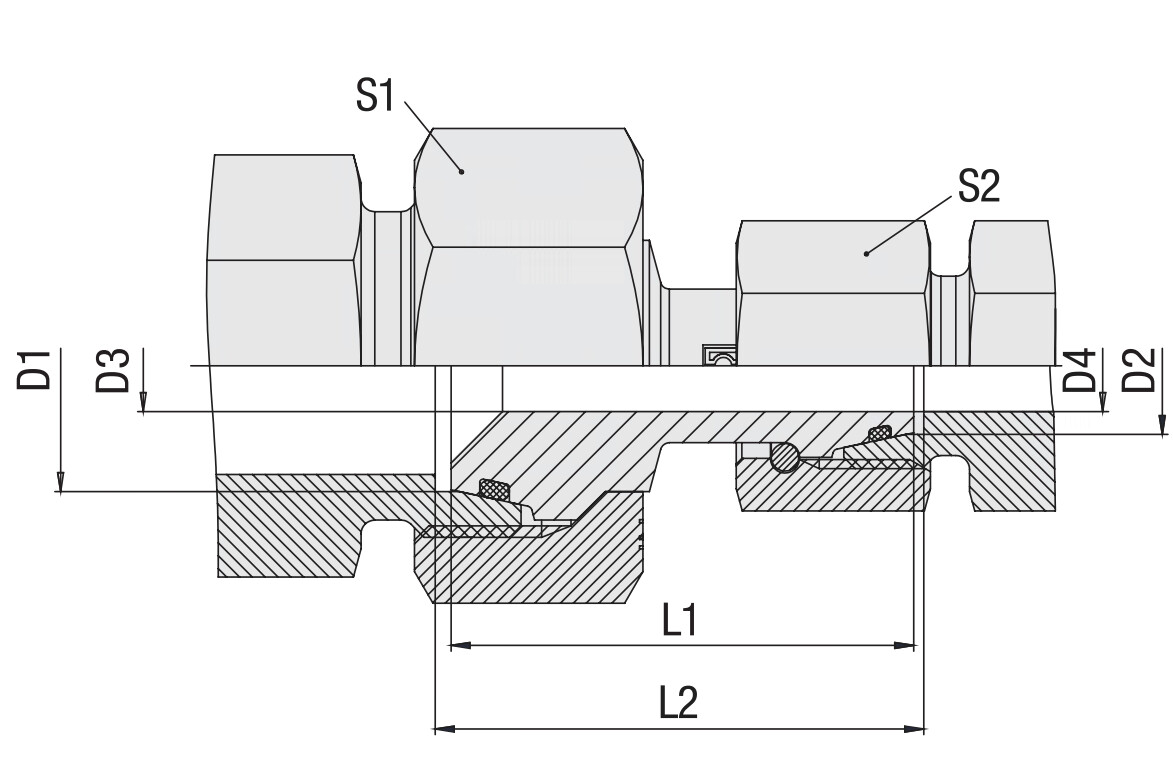

Measure sketch

Straight fitting ø22L/15L with O-ring
