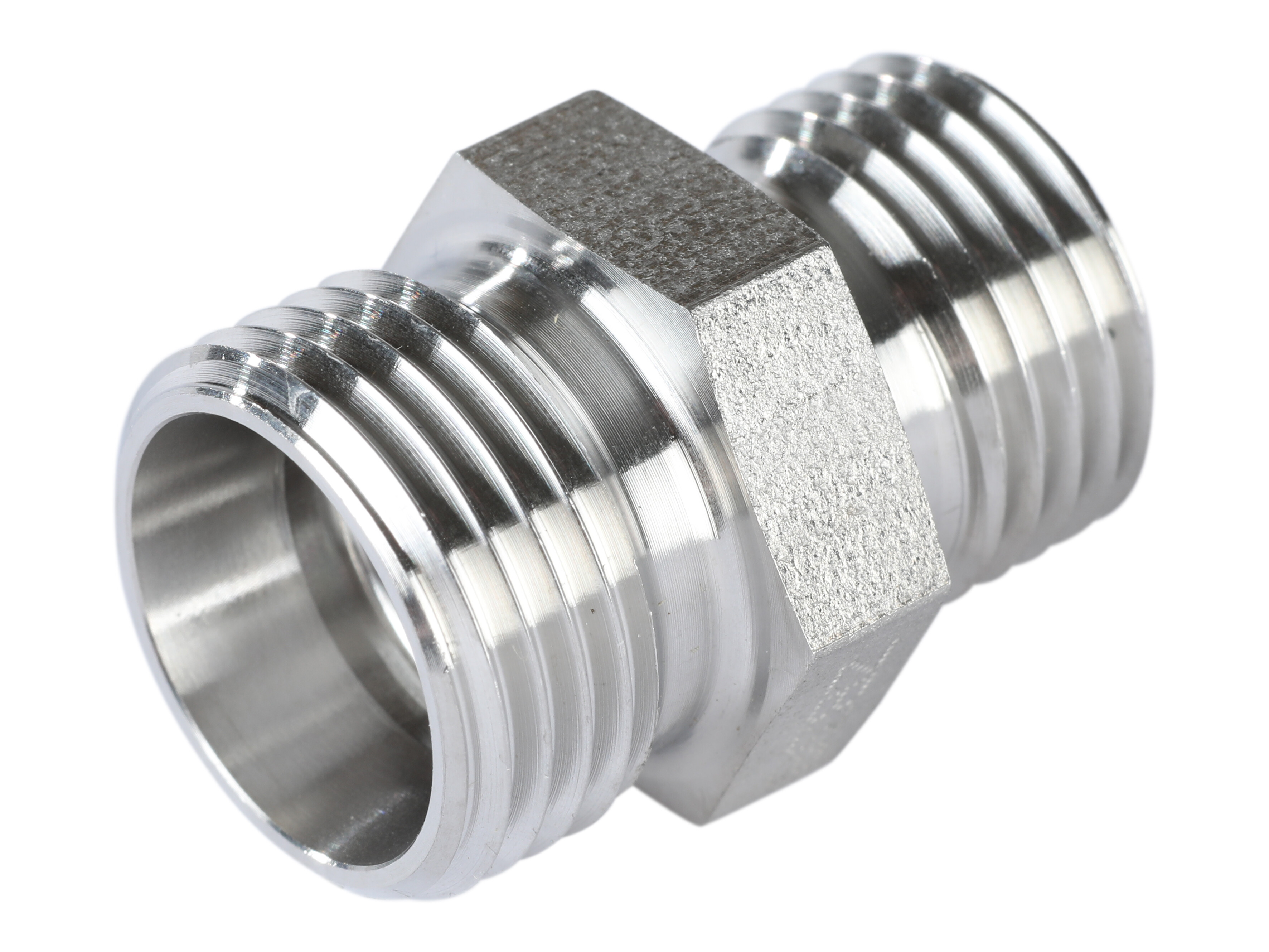

Reducing adaptor - ø18L x ø12L - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
ER1812LX/71
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
Volz
Diameter pipe
18 - 12 mm
Dimension D1
18 mm
Dimension D2
15 mm
Dimension D3
12 mm
Dimension D4
10 mm
Dimension L1
47.5 mm
Dimension L2
30 mm
Dimension L3
15.5 mm
Dimension S1
27 mm
Dimension S2
32 mm
Dimension S3
22 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
XGRV 18 12 L
Pressure max.
315 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
L
Series 1
L
Series 2
L
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread T
M26x1,5
Thread T2
M18x1,5 mm
Thread outer metric
M18x1,5, M26x1,5
Package size
0 pcs
Barcode
5704334203926
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
