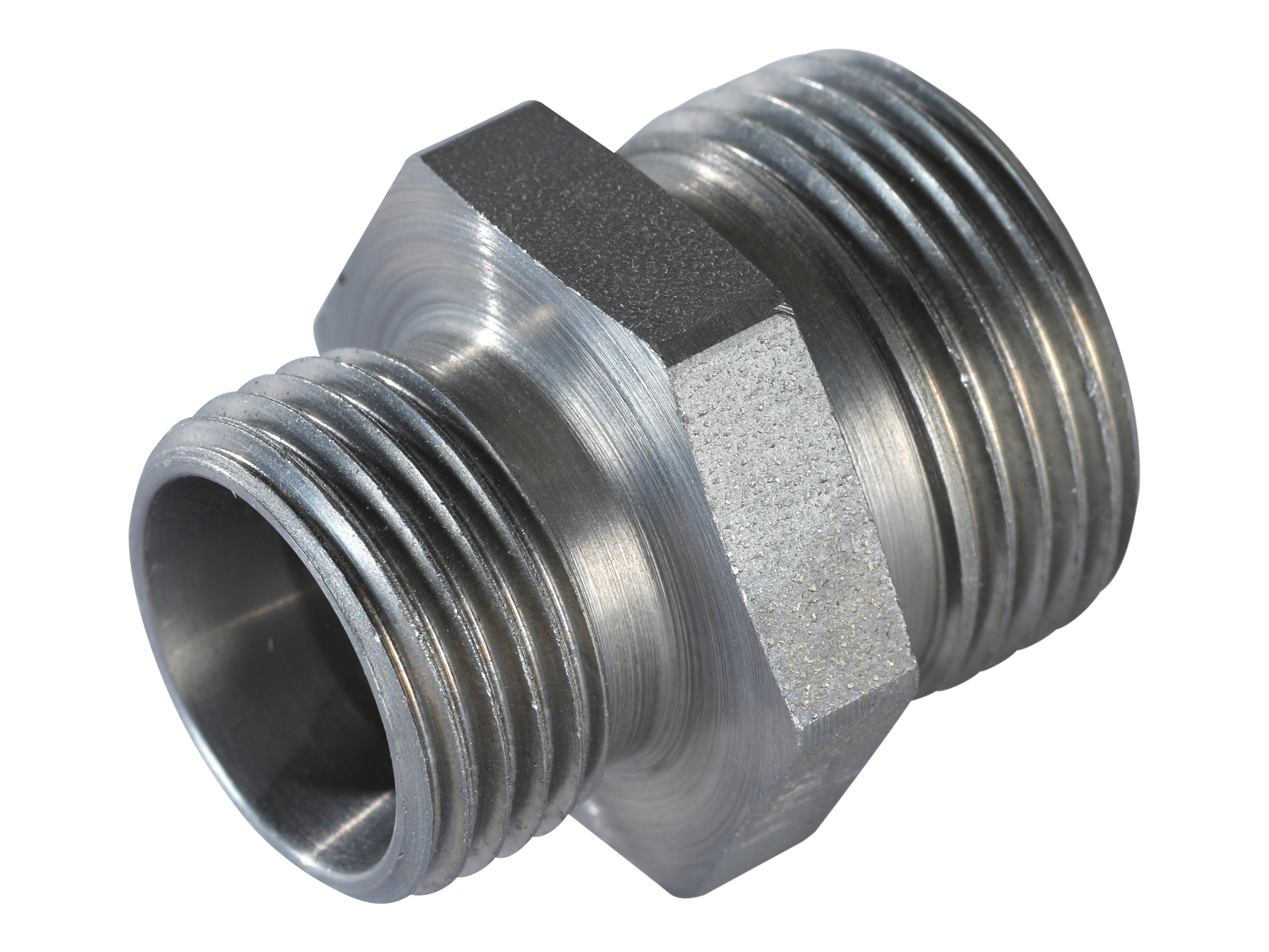

Reducing adaptor - ø16S x ø12S
Temperature/pressure reduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
ER1612SX
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
16 - 12 mm
Dimension D1
16 mm
Dimension D2
12 mm
Dimension S
27 mm
Dimension l1
20 mm
Material
Steel
Model code
XER1612SZN
Pressure max.
630 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
S
Series 1
S
Series 2
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread outer metric
M20x1,5, M24x1,5
Package size
0 pcs
Barcode
5704295348728
Gross weight
0,09 Kg
Net weight
0,09 Kg
Country of origin
DEU
Intrastat code
73071110
Temperature/pressure reduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Note: Opening 3D files requires a program that supports the file format
