Atos solenoid valve cetop3 DHE-0714/8-X00-DC without coi

Atos solenoid valve cetop3 DHE-0714/8-X00-DC without coi

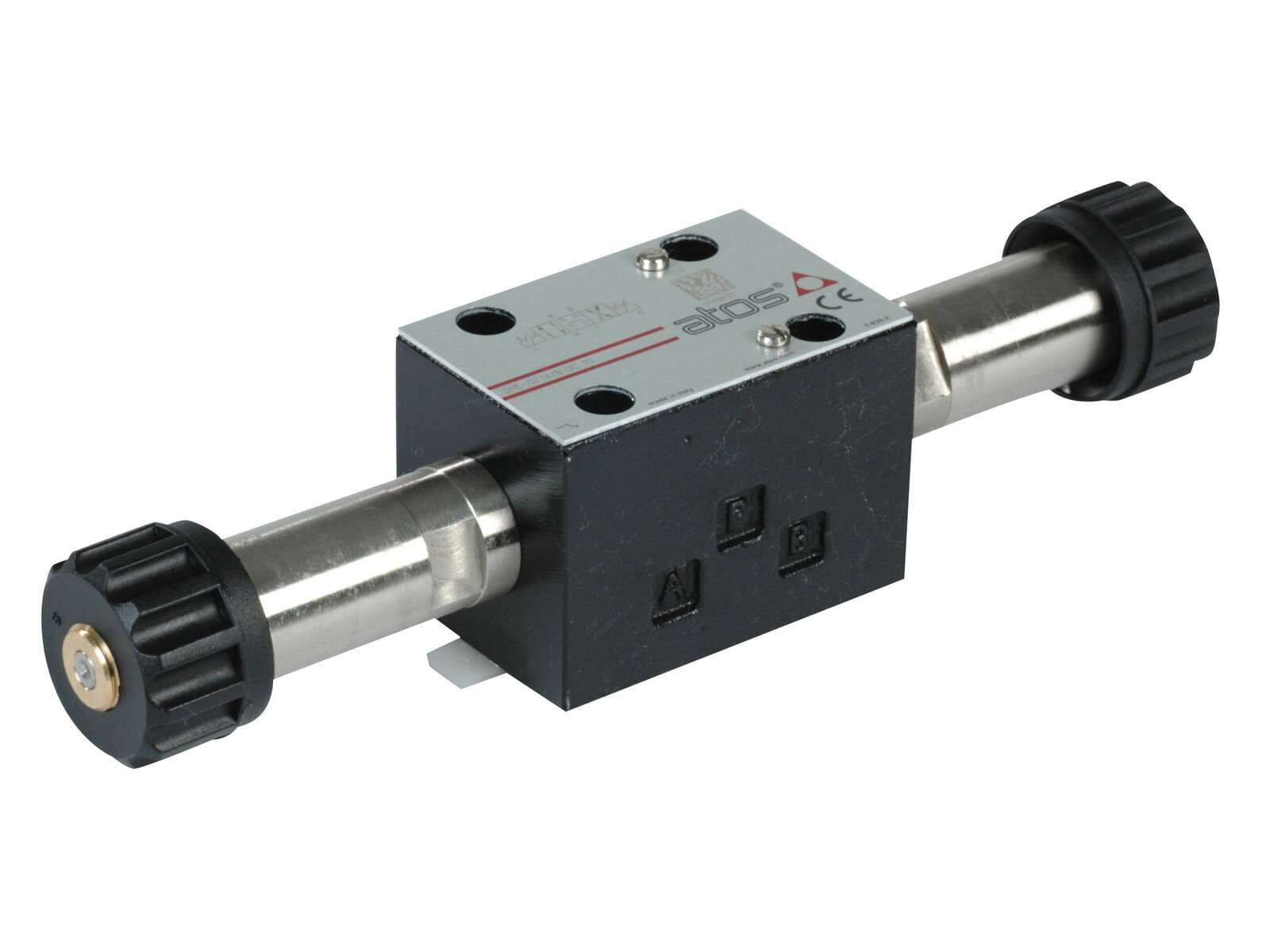

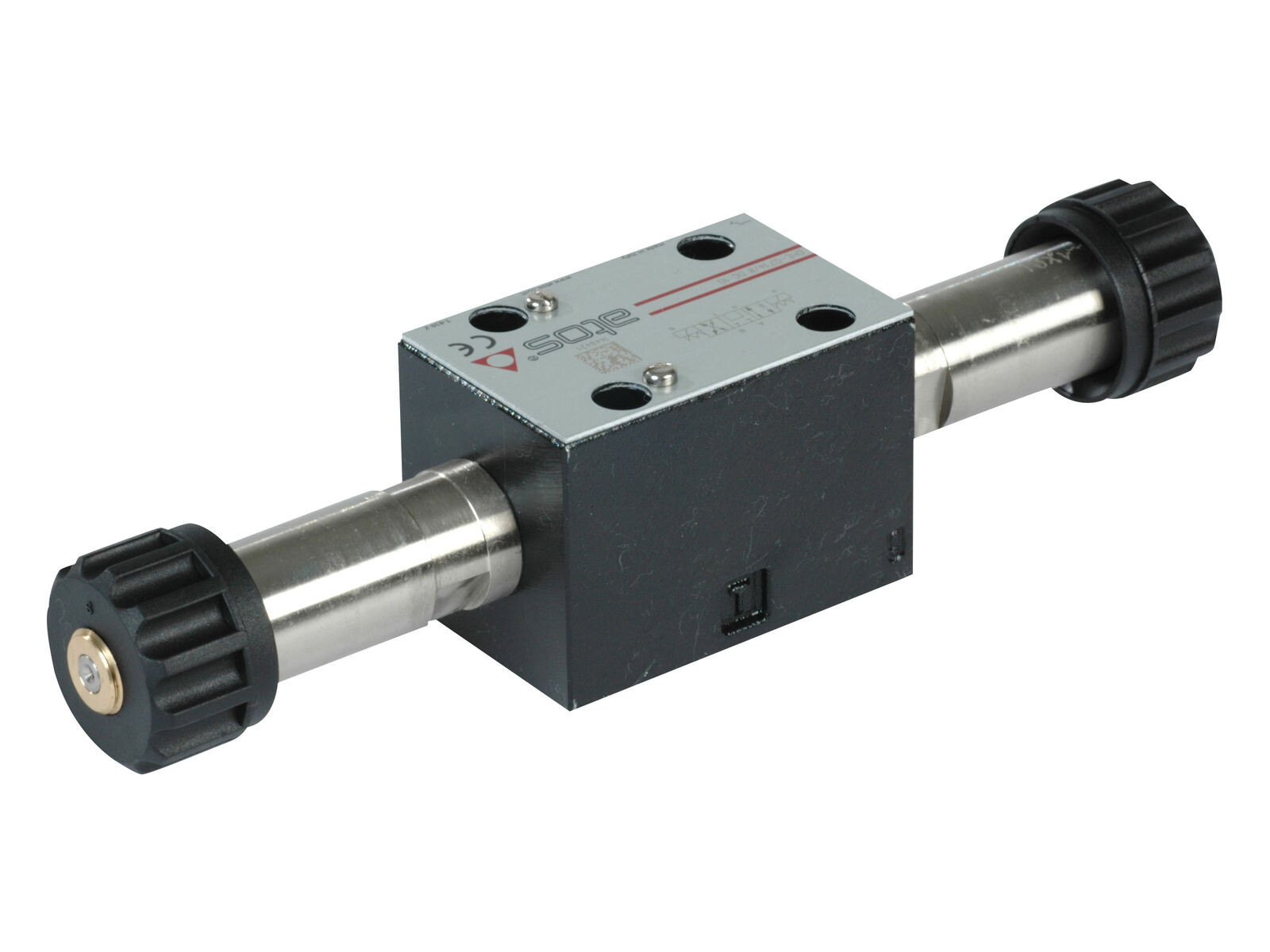

Atos solenoid valve cetop3 DHE-0714/8-X00-DC without coil

Partnumber:
DHE0714/8-X
Package size:
0 pcs
Min. order quantity is:
1 pcs
Sensor-/actuator cable - SAC-3P- 3.0-PUR/A-1L-Z
Artikelnummer: 1434992
M05x030 DS bolt indv.6kt 12.9 DIN912
Artikelnummer: 9123705030
Black DIN-connector A 2-pin
Artikelnummer: C28200N0R
12Vdc magnetspole DHE
Artikelnummer: COE12DC
220Vdc magnetspole DHE
Artikelnummer: COE220DC
24Vdc magnetspole DHE for din-stik.
Artikelnummer: COE24DC
DIN-connector with rectifier 1
Artikelnummer: MPM132-09NI
Cetop 3 valve without coil DHL-0714/8-X00
Artikelnummer: DHL0714/8-X
Plastic nut for DHE valve
Artikelnummer: 6-OE-1011116
Activation
Manual emergency override, Solenoid
Brand Name
Atos
Contamination level max.
20/18/15 - ISO 4406
Flow rate nominal LMin
80 lpm
Model code
DHE-0714/8-X00-DC
NG ISO-size
NG06
Number of ways/positions
4/3
Oil viscocity recommended
15 - 100 cSt
Pressure T max.
210 bar
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 4401
Temperature max.
+60 °C
Temperature min.
-20 °C
Torque tightening
8 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704334457688
Bruttovikt
1,18 Kg
Nettovikt
1,18 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010

Atos solenoid valve cetop3 DHE-0714/8-X00-DC without coil

Product datasheet Technical documentation link 1
