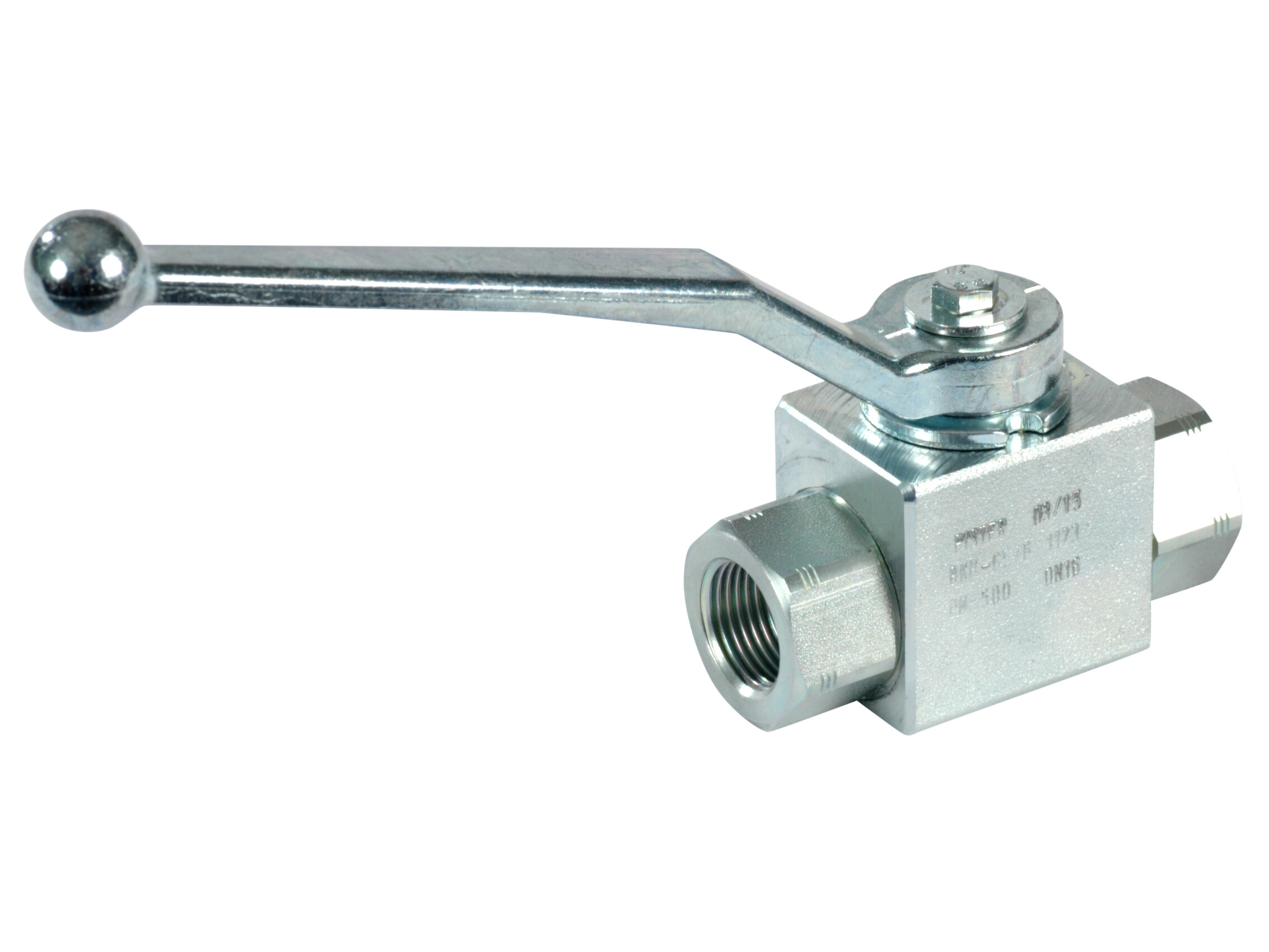

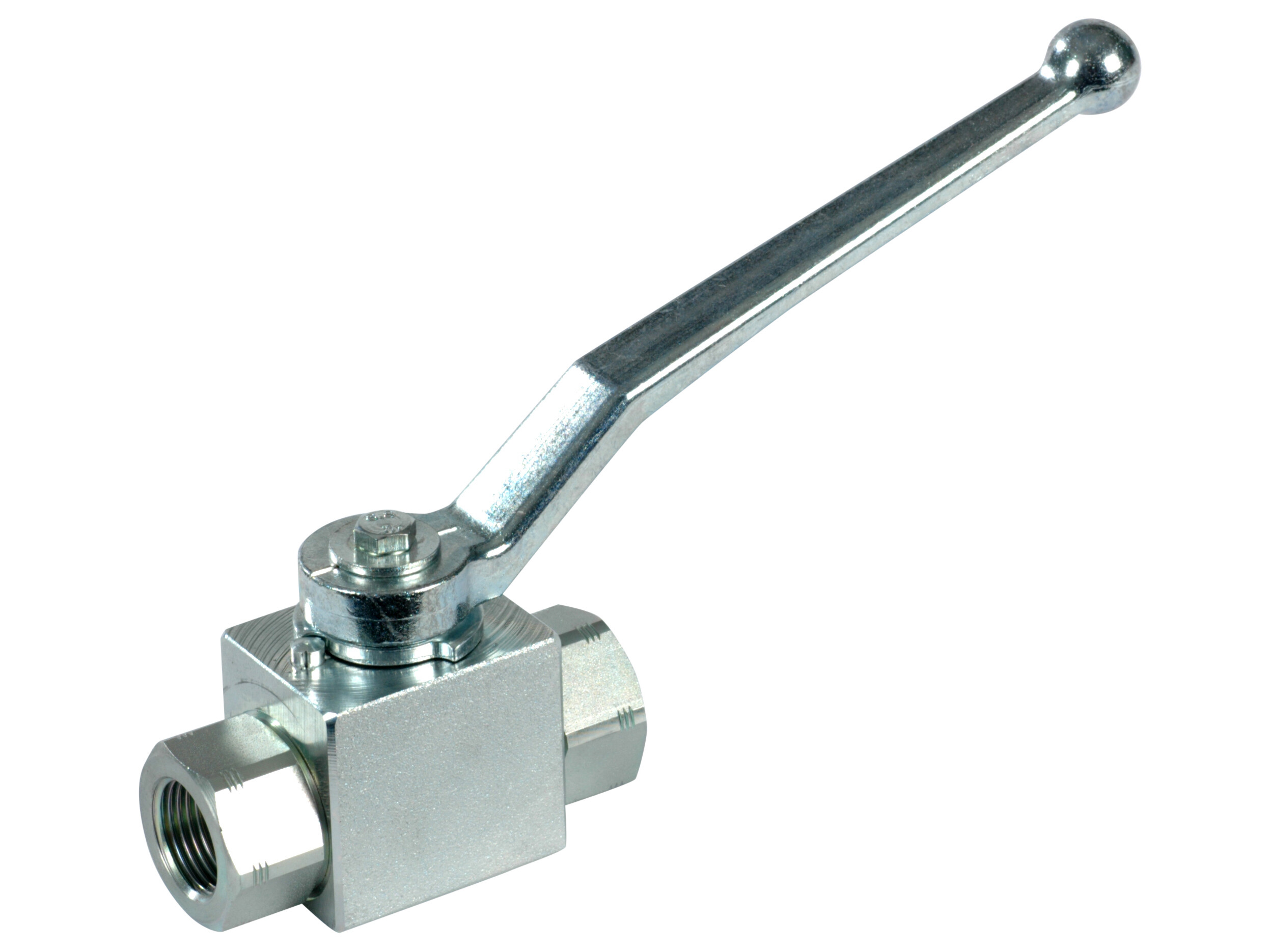

Ball valve-female 5/8 BSP BKH G5/8 16 1113 1
Ball valve-female 5/8 BSP BKH G5/8 16 1113 1
Artikelnummer:
BKH-5/8
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Activation
Manual
Brand Name
Pister Kugelhähne
Diameter inner
13 mm
Dimension B
38 mm
Dimension H1
46 mm
Dimension L
84 mm
Dimension L1
48 mm
Lever
Inclusive
Lever type
Angled
Material
Steel
Number of mounting holes
0
Number of ways/positions
2/2
Pressure max.
400 bar
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+60 °C
Temperature min.
-20 °C
Thread
G 5/8 BSP
Package size
0 pcs
Barcode
5704295022147
Gross weight
0,89 Kg
Net weight
0,89 Kg
Country of origin
DEU
Intrastat code
84812010
