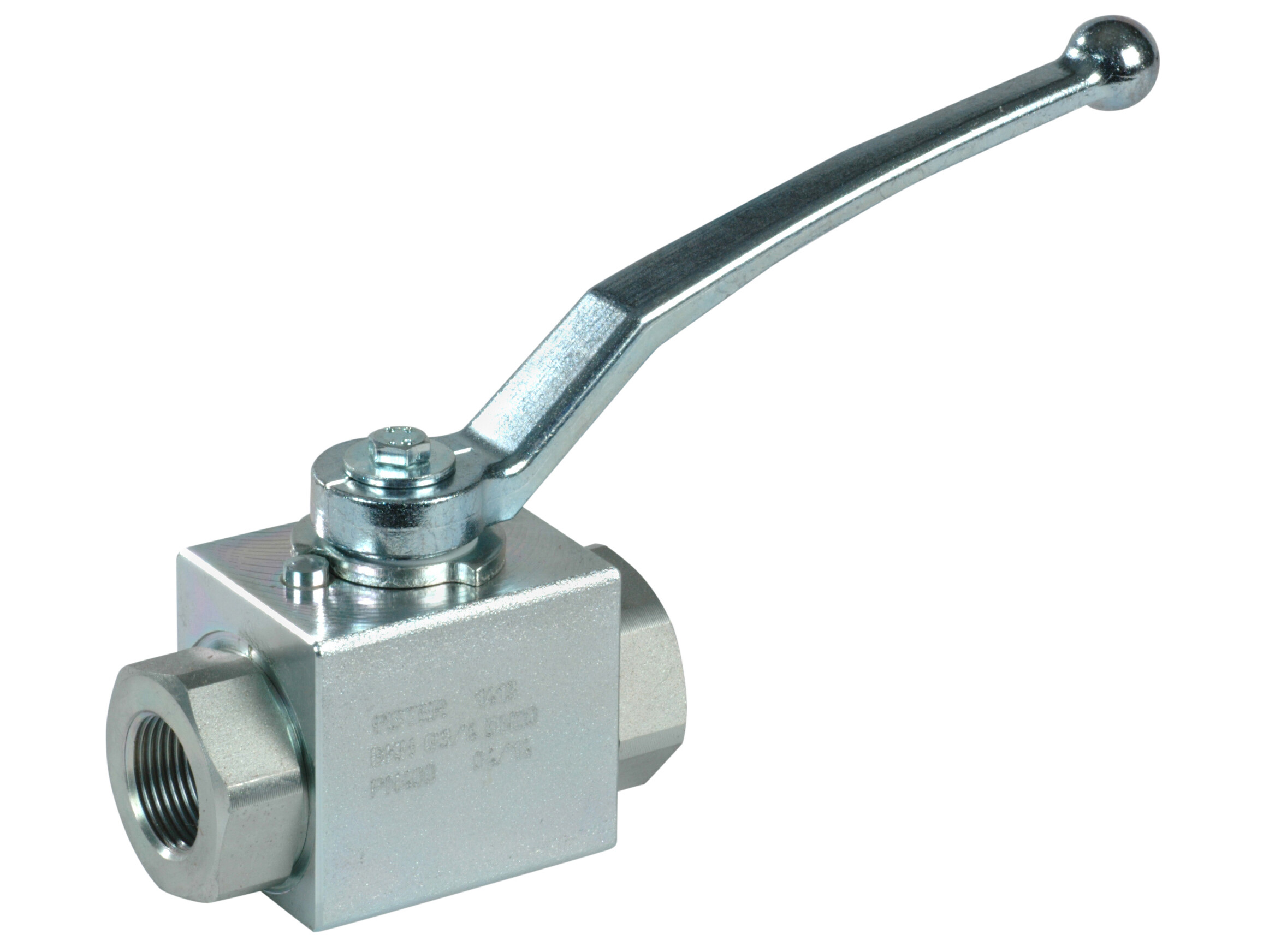

Ball valve - female RG 3/4 BKH G3/4 20 1413 1 stainless
Block ball valve - internal RG 1 BKH G1 25 1423 1 stainless ball Note: the product is made of steel while the ball is made of stainless steel
Partnumber:
BKH-3/4RK
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Manual
Brand Name
Pister Kugelhähne
Diameter inner
20 mm
Dimension B
49 mm
Dimension H1
57 mm
Dimension L
96 mm
Dimension L1
62 mm
Lever
Inclusive
Lever type
Angled
Material
Stainless steel, Steel
Number of mounting holes
0
Number of ways/positions
2/2
Pressure max.
400 bar
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+60 °C
Temperature min.
-20 °C
Thread
G 3/4 BSP
Package size
0 pcs
Barcode
5704295375410
Gross weight
1,55 Kg
Net weight
1,55 Kg
Country of origin
DEU
Intrastat code
84812010
Block ball valve - internal RG 1 BKH G1 25 1423 1 stainless ball Note: the product is made of steel while the ball is made of stainless steel
