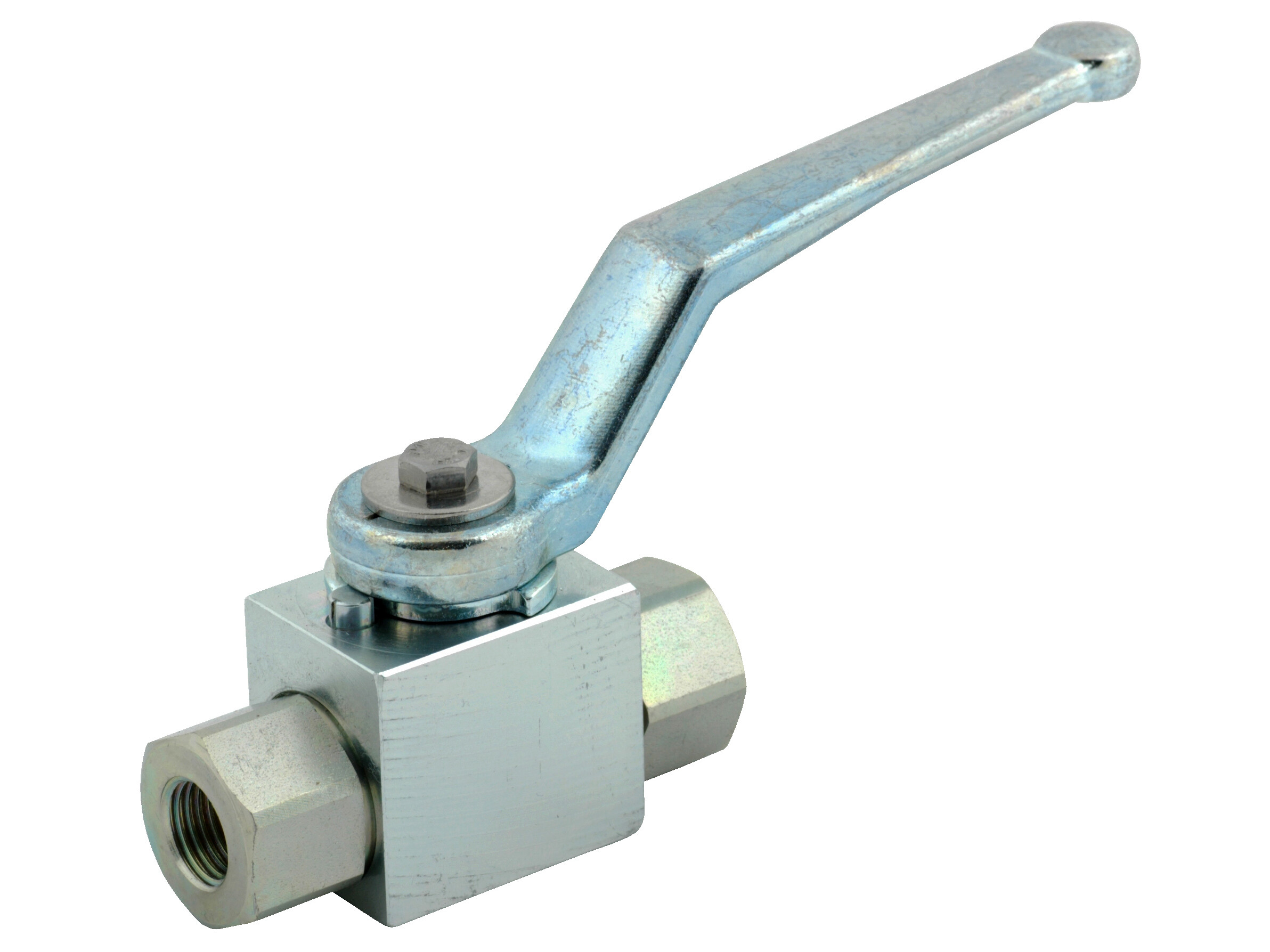

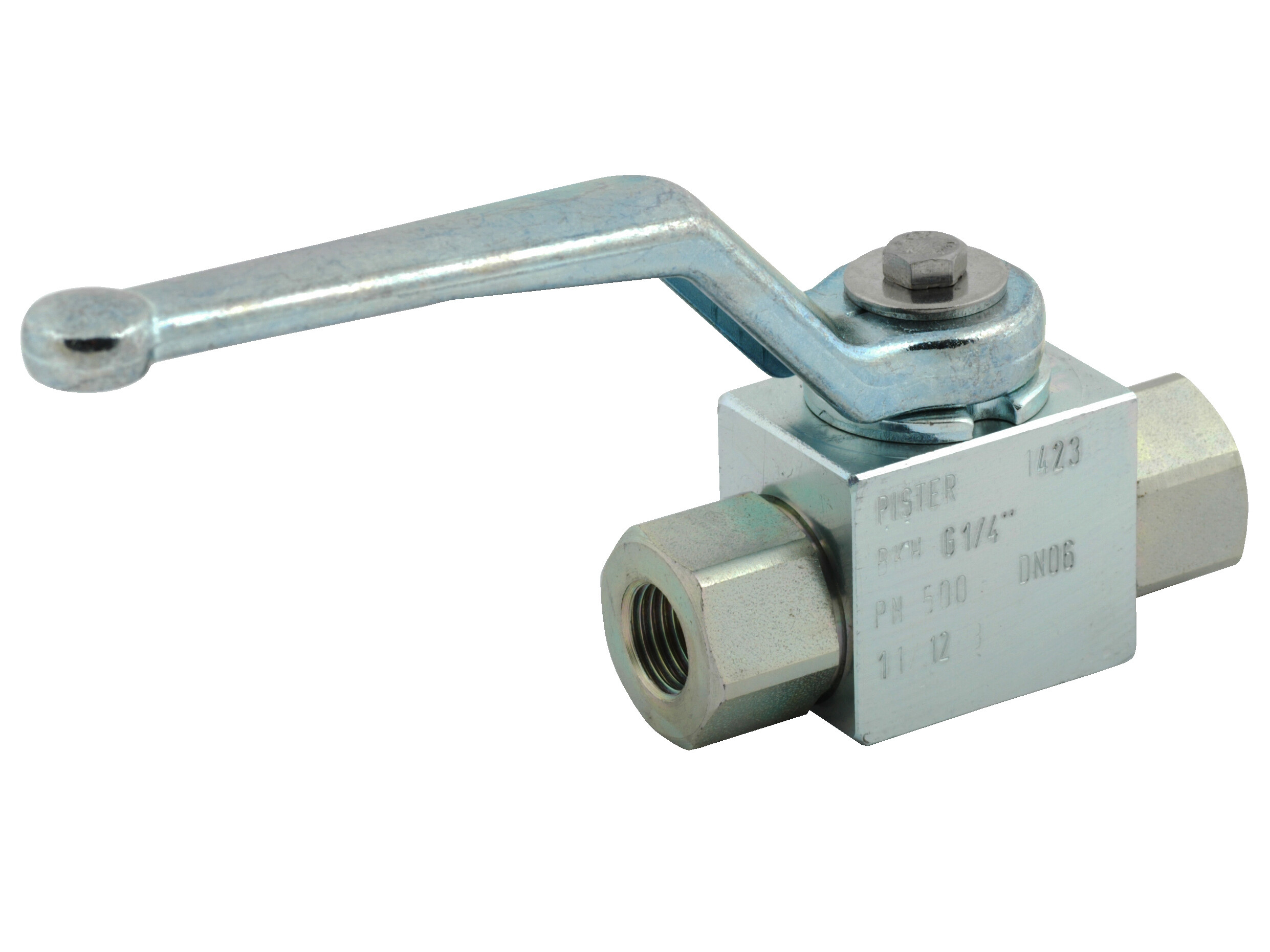

Ball valve - female RG 1/4 BKH G1/4 06 1423 1 stainless

Ball valve - female RG 1/4 BKH G1/4 06 1423 1 stainless

Block ball valve - internal RG 1 BKH G1 25 1423 1 stainless ball Note: the product is made of steel while the ball is made of stainless steel

Partnumber:

BKH-1/4RK

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Activation

Manual

Brand Name

Pister Kugelhähne

Diameter inner

6 mm

Dimension B

26 mm

Dimension H1

32 mm

Dimension L

69 mm

Dimension L1

36 mm

Lever

Inclusive

Lever type

Angled

Material

Stainless steel, Steel

Number of mounting holes

Number of ways/positions

2/2

Pressure max.

500 bar

Surface treatment

Electro-galvanized / White chromatized

Temperature max.

+60 °C

Temperature min.

-20 °C

Thread

G 1/4 BSP

Package size

0 pcs

Barcode

5704295388847

Gross weight

0,35 Kg

Net weight

0,35 Kg

Country of origin

DEU

Intrastat code

84812010

Product information
Measure sketch

Block ball valve - internal RG 1 BKH G1 25 1423 1 stainless ball Note: the product is made of steel while the ball is made of stainless steel
