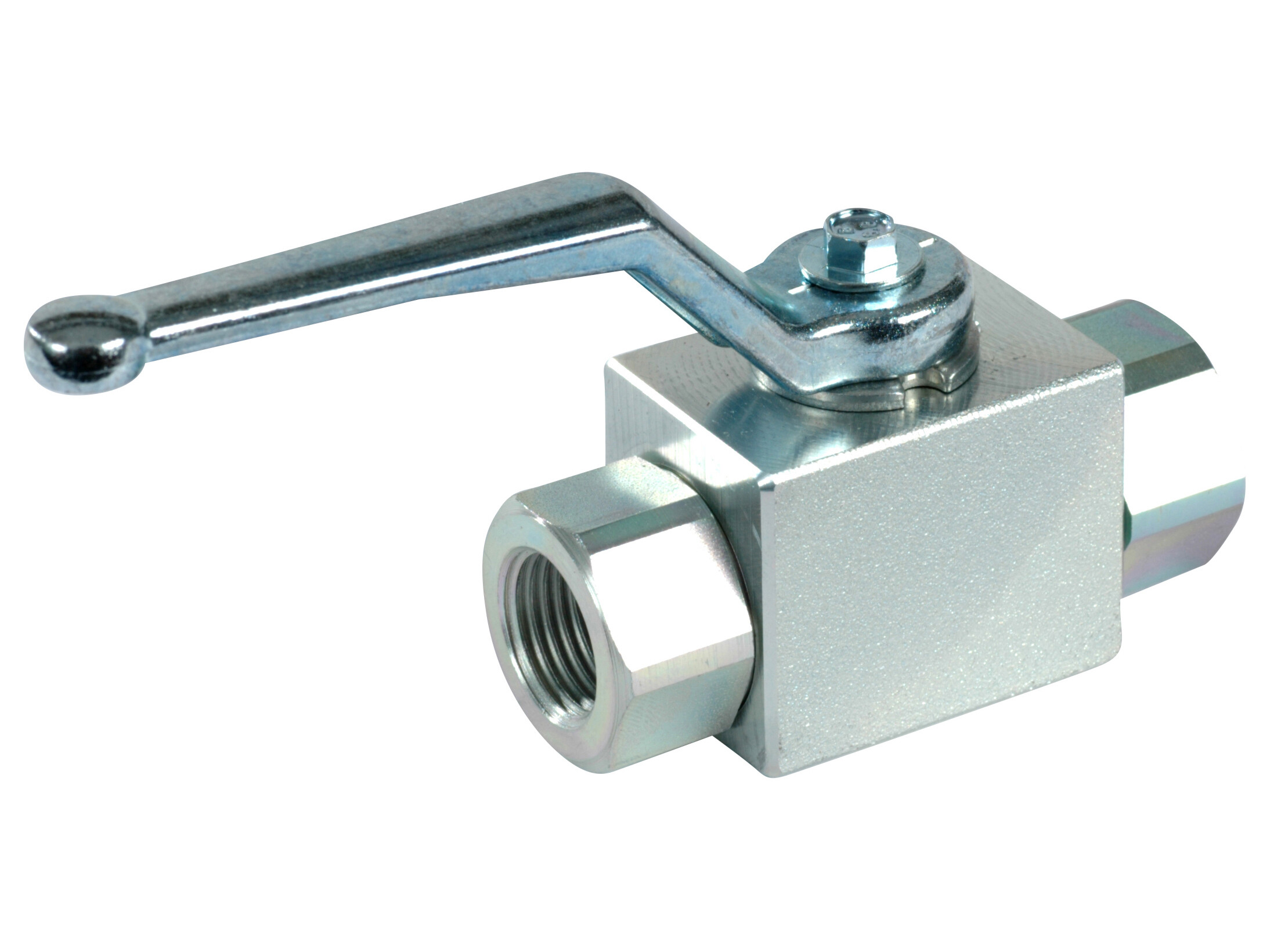

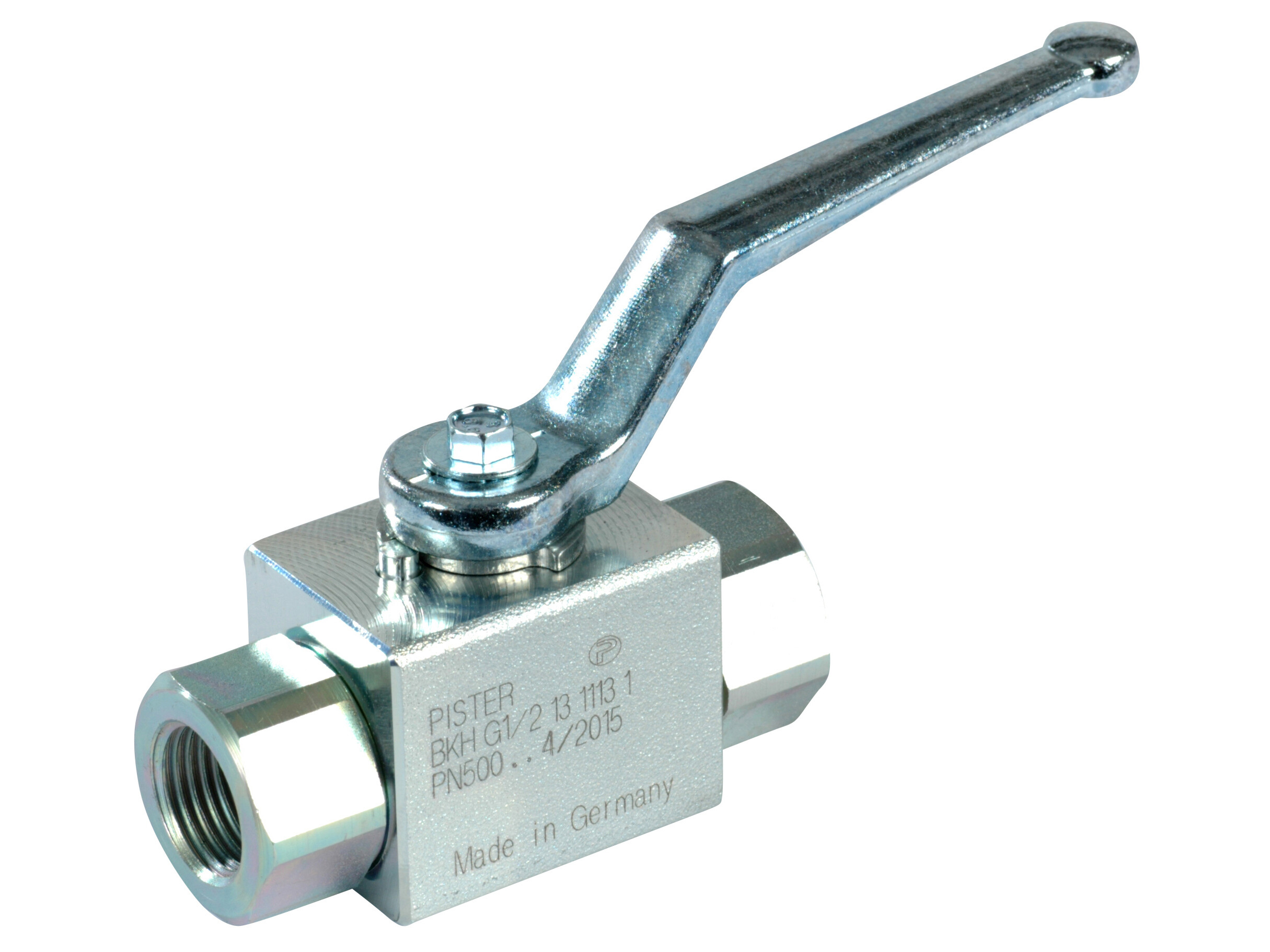

Ball valve-female 1/2 BSP BKH G1/2 13 1113 1
Ball valve-female 1/2 BSP BKH G1/2 13 1113 1
Partnumber:
BKH-1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Manual
Brand Name
Pister Kugelhähne
Diameter inner
13 mm
Dimension B
35 mm
Dimension H1
40 mm
Dimension L
85 mm
Dimension L1
48 mm
Lever
Inclusive
Lever type
Angled
Material
Steel
Number of mounting holes
0
Number of ways/positions
2/2
Pressure max.
500 bar
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+60 °C
Temperature min.
-20 °C
Thread
G 1/2 BSP
Package size
0 pcs
Barcode
5704295022116
Gross weight
0,64 Kg
Net weight
0,64 Kg
Country of origin
DEU
Intrastat code
84812010
Ball valve-female 1/2 BSP BKH G1/2 13 1113 1
