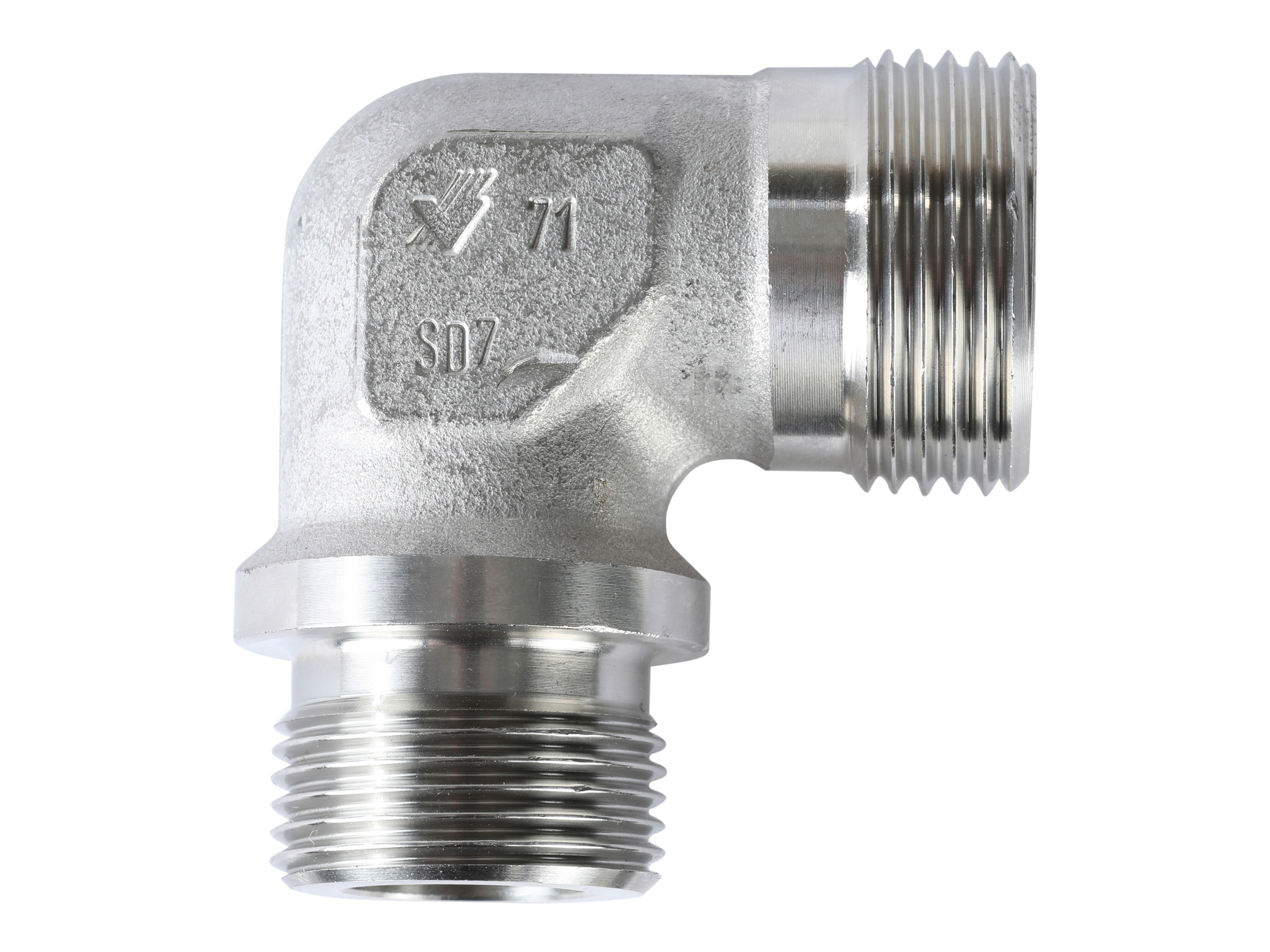

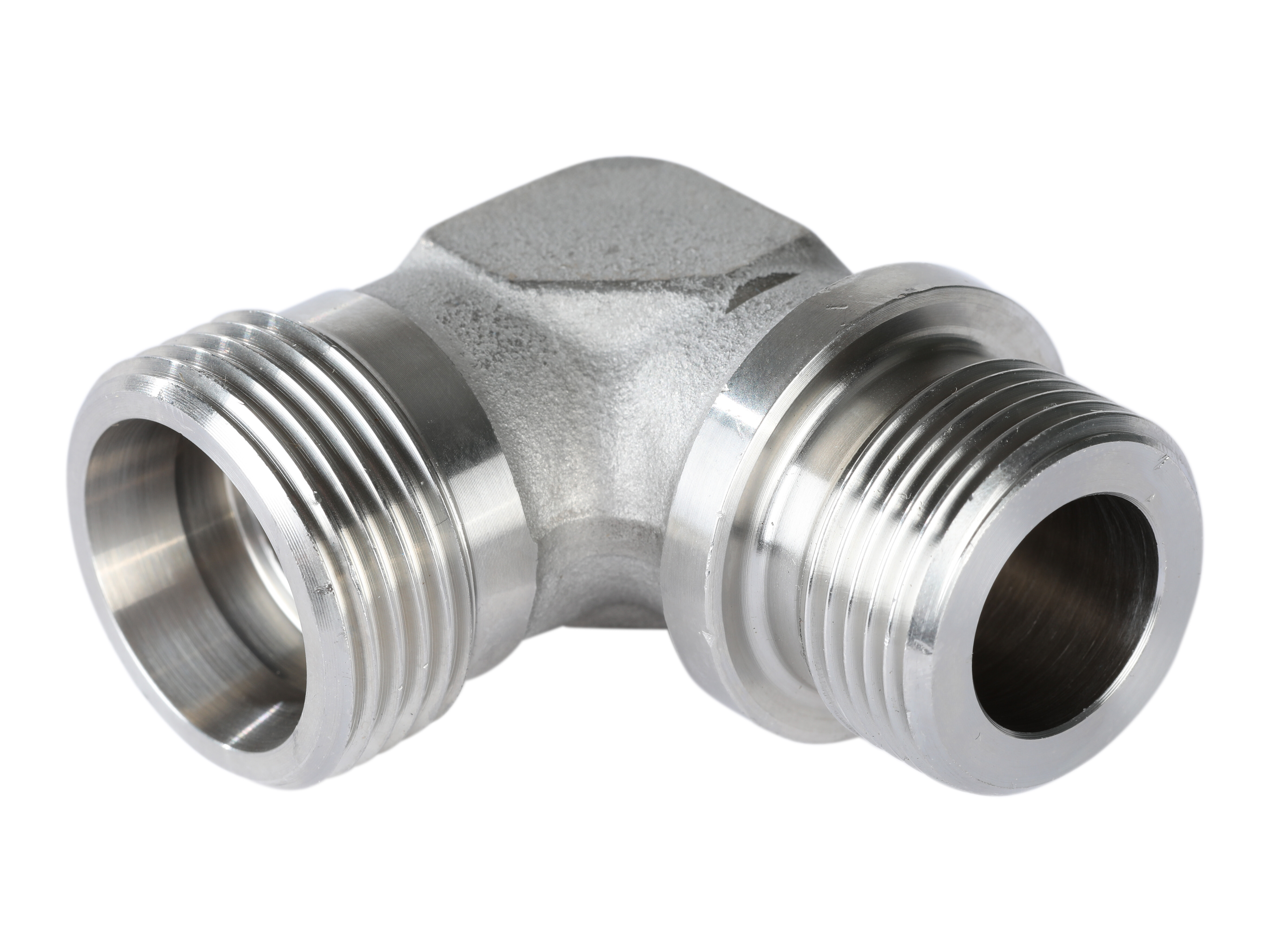

Stud elbow 90° - ø20S x 3/4" BSPT - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
B20RSX/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
Volz
Diameter pipe
20 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
XWEV 20 SR 3/4
Pressure max.
400 bar
Safety factor
4
Series
S
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread outer
G 3/4 BSP
Thread outer metric
M30x2
Förpackningsstorlek
0 pcs
Streckkod
5704334203148
Bruttovikt
0,22 Kg
Nettovikt
0,22 Kg
Ursprungsland
DEU
Intrastat artikelkod
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
