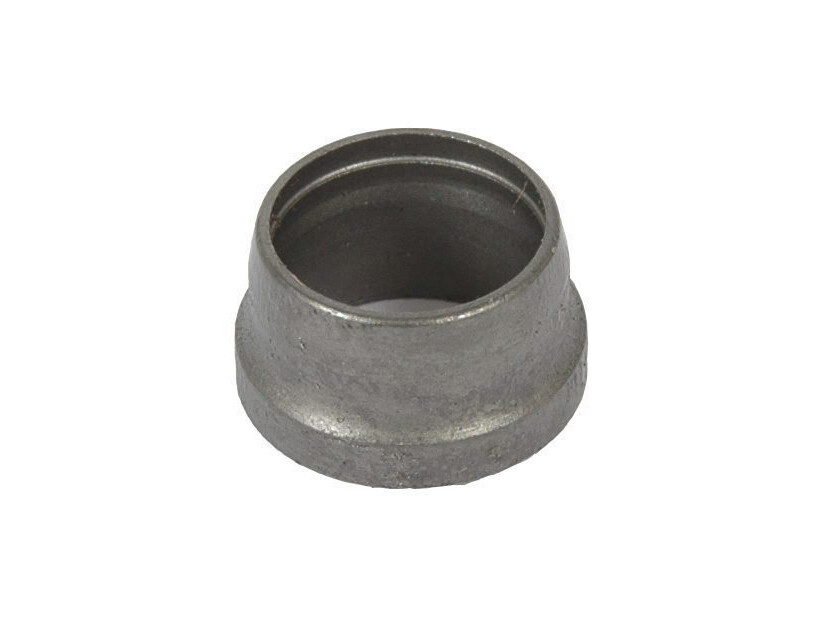

Cutting ring ø 20 1.4571
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Artikelnummer:
DS20S/71
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Diameter rör
20 mm
Dimension L1
12 mm
Dimension d1
20 mm
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
PDR 20 S
Märke namn
Volz
Serie
S
Säkerhetsfaktor
4
Temperatur max.
+400 °C
Temperatur min.
-60 °C
Tillverkningsmaterial
Acid-resistant steel
Tryck max.
420 bar
Package size
0 pcs
Barcode
5704295337272
Gross weight
0,01 Kg
Net weight
0,01 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Note: Opening 3D files requires a program that supports the file format
