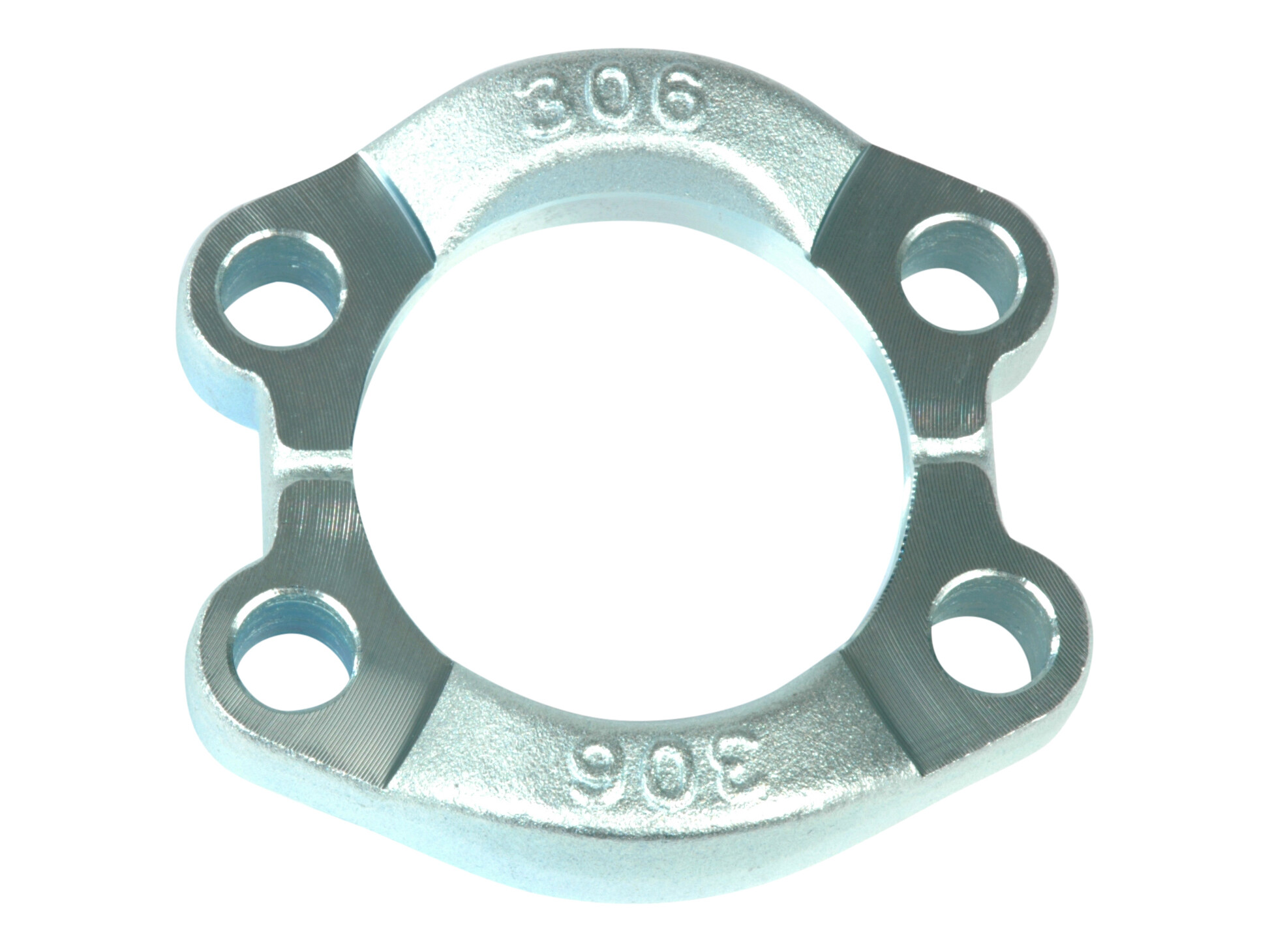

Flange clamp 2" SAE3000
Fuldflange 2" SAE3000
Varenummer:
AFSI306
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
72,3 mm
B
62,8 mm
Bolt dimension
M12x35 mm
Brand Name
Havit
C
77,8 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
102 mm
Diameter flange
71.4 mm
E
42,9 mm
F
97 mm
Flange
2 "
Flange SAE/DIN
3000 PSI
G
26 mm
H
16 mm
I
9 mm
L
13,3 mm
Material
Steel
O-ring
56,75X3,53 mm
Pressure max.
210 bar
Sealing material
Buna-N
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 pcs
Barcode
5704295321189
Gross weight
0,50 Kg
Net weight
0,50 Kg
Country of origin
DEU
Intrastat code
73079100
Fuldflange 2" SAE3000
