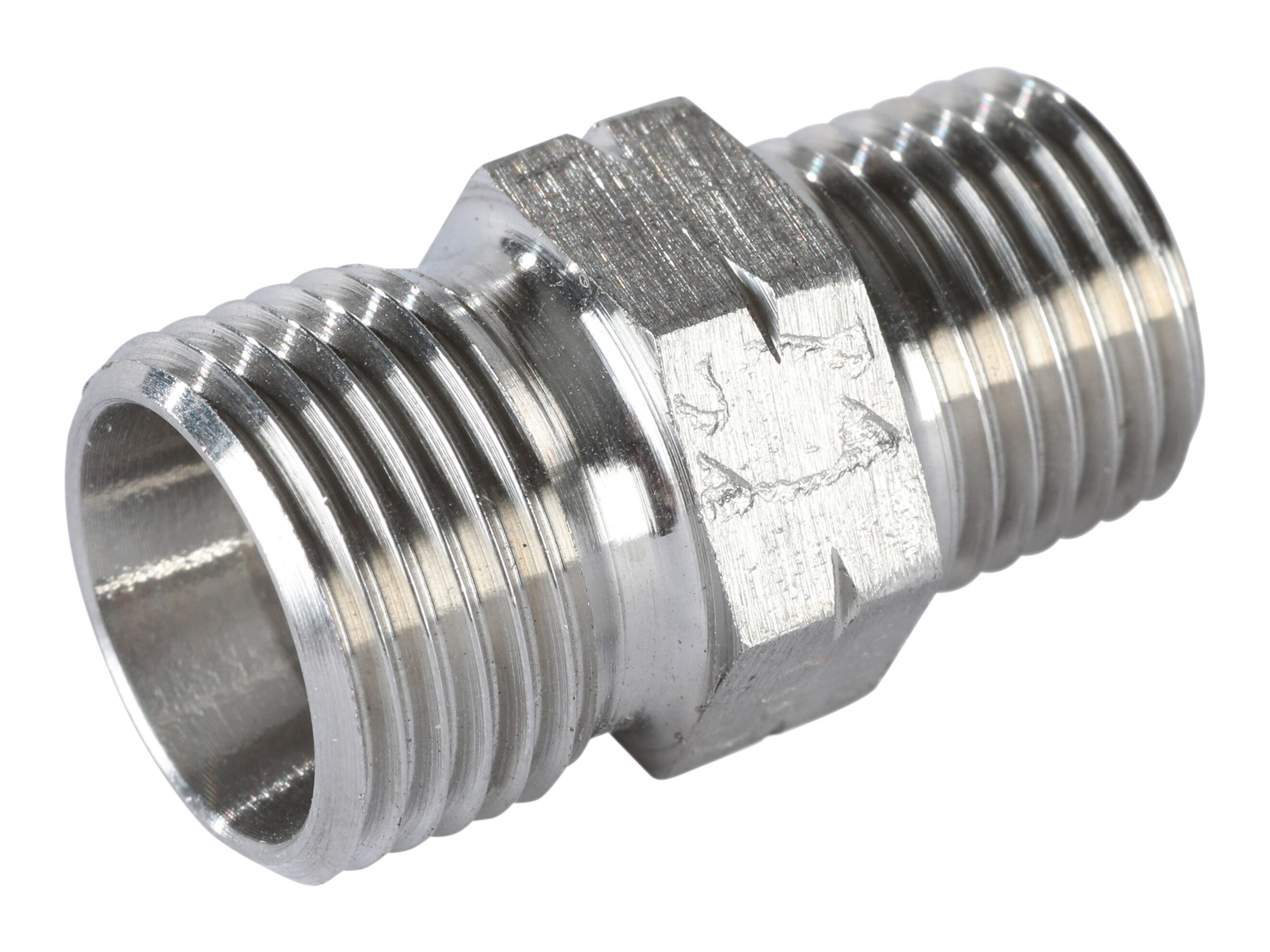

Stud fitting - ø8LL x M10x1 tapered - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
A08MLLX/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Volz
Diameter flange
63.5 mm
Diameter pipe
8 mm

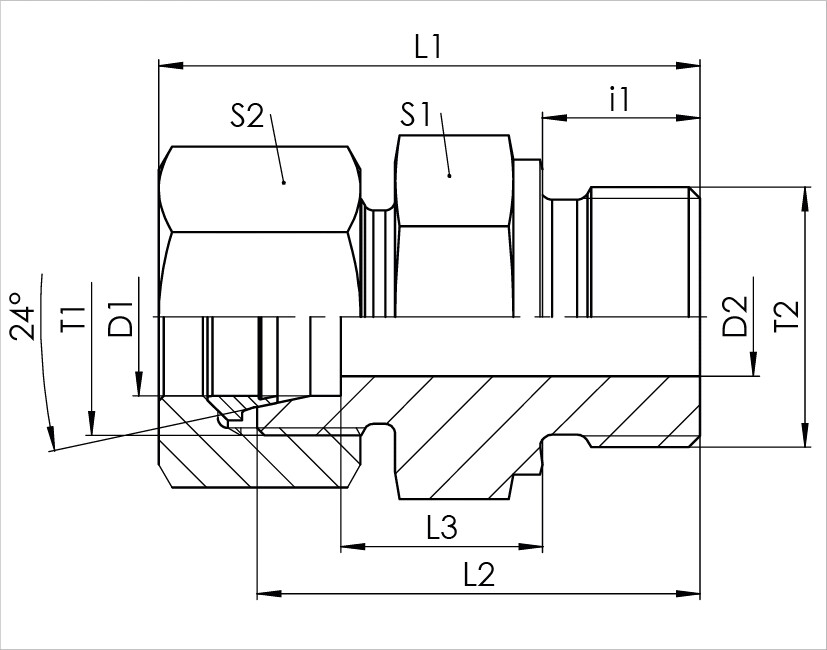

Dimension D1
8 mm
Dimension D2
4 mm
Dimension L1
31.5 mm
Dimension L2
23.5 mm
Dimension L3
8.5 mm
Dimension S1
14 mm
Dimension S2
17 mm
Dimension T2
18
Dimension i
8 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
XGEV 08 LM 10x1
O-ring
47,22X3,53 mm
Pressure max.
100 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
LL
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread T1
M14x1,5
Thread T2
M10x1 mm
Pakke str.
0 pcs
Stregkode
5704295911151
Brutto vægt
0,04 Kg
Netto vægt
0,04 Kg
Oprindelsesland
DEU
Intrastat varekode
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
