Pressure relief valve, Sterlin
Relief Valve, Direct Acting, Poppet Type, Side to Nose.
- Fast response
- Virtually leak-free.
- Minimal pressure variation with flow change.
- Hardened working parts for maximum durability.

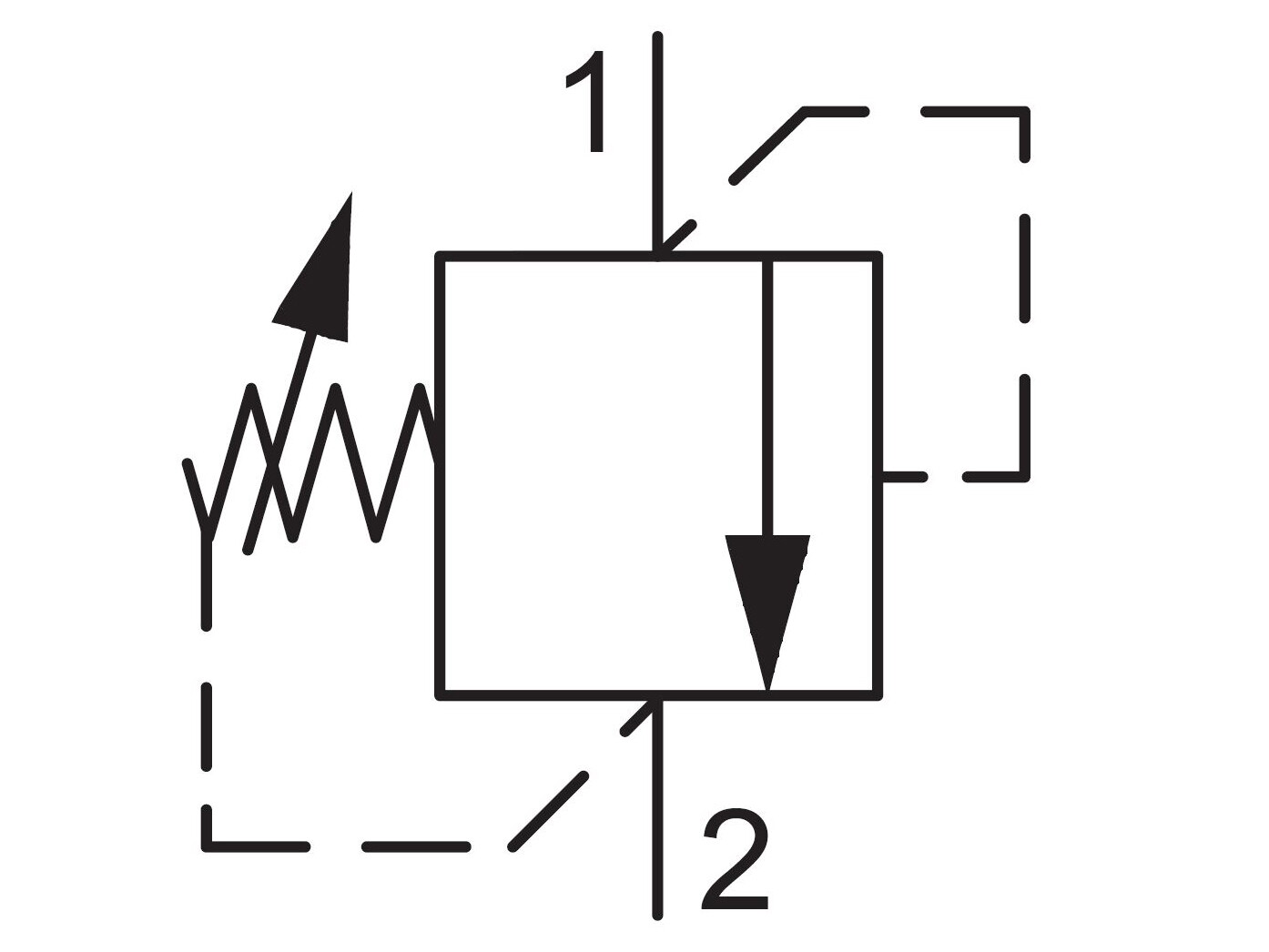

Operation
The adjustable spring-loaded poppet is shifted at valve setting by pressure on port [1] allowing relief flow to port [2].
Reverse flow, [2] to [1], is blocked. Back pressure on port [2] adds to the valve setting.
Artikelnummer:
A04D2MZN
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Hydraspecma
Cavity
CAV04-2
Contamination level max.
18/16/13 - ISO 4406
Flow rate nominal LMin
150 lpm
Oil viscocity recommended
15 - 50 cSt
Pressure T max.
420 bar
Pressure max.
420 bar
Pressure setting max.
350 bar
Pressure setting min.
5 bar
Sealing material
NBR
Torque tightening
50 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704295401768
Bruttovikt
0,28 Kg
Nettovikt
0,28 Kg
Ursprungsland
GBR
Intrastat artikelkod
84812010
Relief Valve, Direct Acting, Poppet Type, Side to Nose.
- Fast response
- Virtually leak-free.
- Minimal pressure variation with flow change.
- Hardened working parts for maximum durability.
Operation
The adjustable spring-loaded poppet is shifted at valve setting by pressure on port [1] allowing relief flow to port [2].
Reverse flow, [2] to [1], is blocked. Back pressure on port [2] adds to the valve setting.
