MultiFaster Fixed part 2P208 2 outlet 1/2 , 1/2 BSP femal

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.

Varenummer:
2P208212GFC

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Female 1/2 2P Multifaster KIT2FNB12GASF
Varenummer: K2FNB12GASF

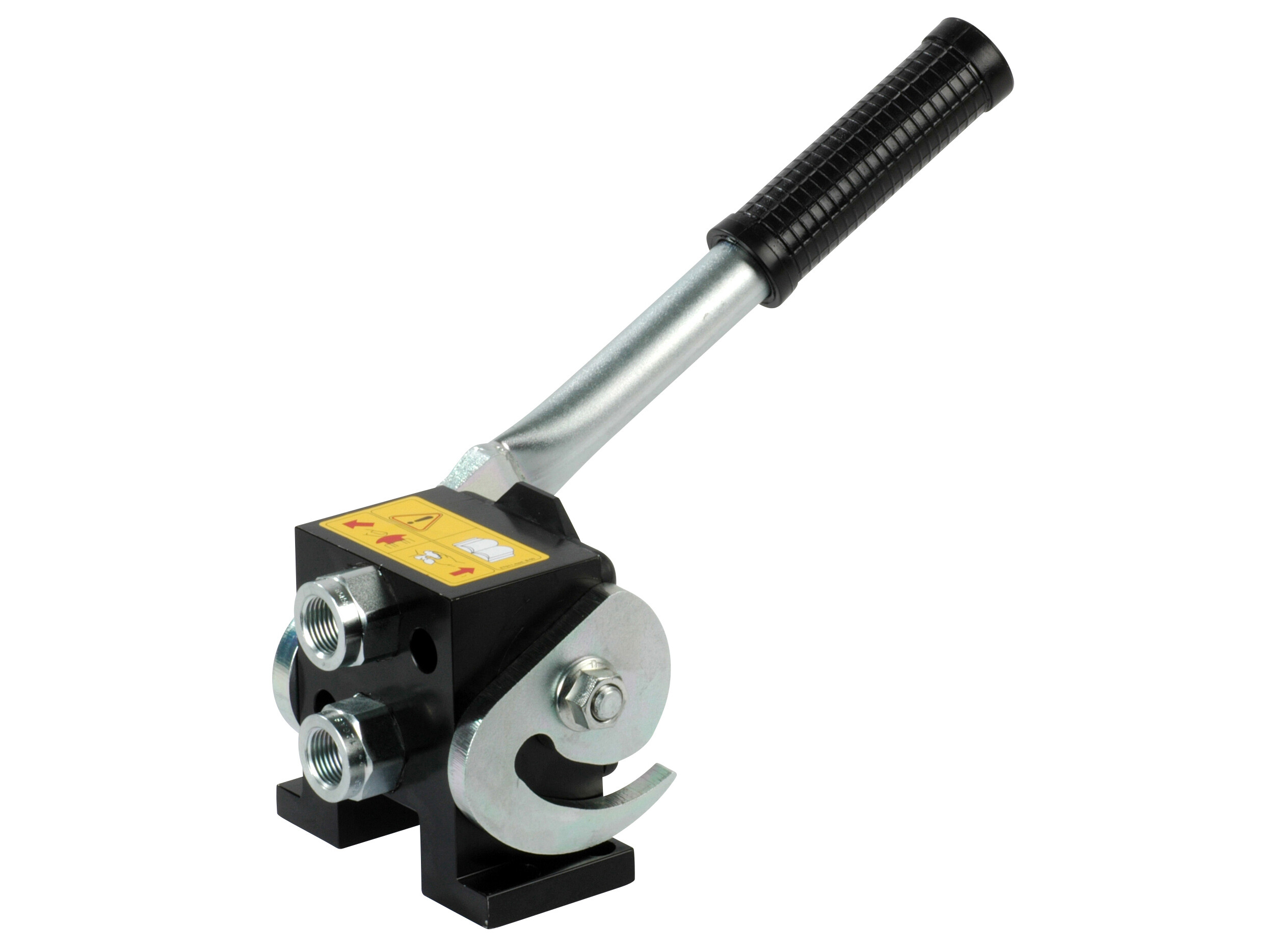

Lever for 2P208 MultiFaster
Varenummer: KITLP208
Sikkerhedskit MultiFaster Rød
Varenummer: KITSP5S
Automatic dust cap
Varenummer: KITTAP2
Brand Name
Faster

Corrosion resistance
500 hours salt spray ISO 9227

Flow rate nominal LMin
70 lpm

Model
2P208

Model code
2P208-2-12GFC

Number of connectors
2

Pressure burst min.
1000 bar

Pressure max.
250 bar

Pressurized connection
Not allowed

Sealing material
NBR, Polyurethane

Series
P208

Size
1/2 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread
G 1/2 BSP
Pakke str.
0 pcs

Stregkode
5704334216001

Brutto vægt
3,00 Kg

Netto vægt
3,00 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
