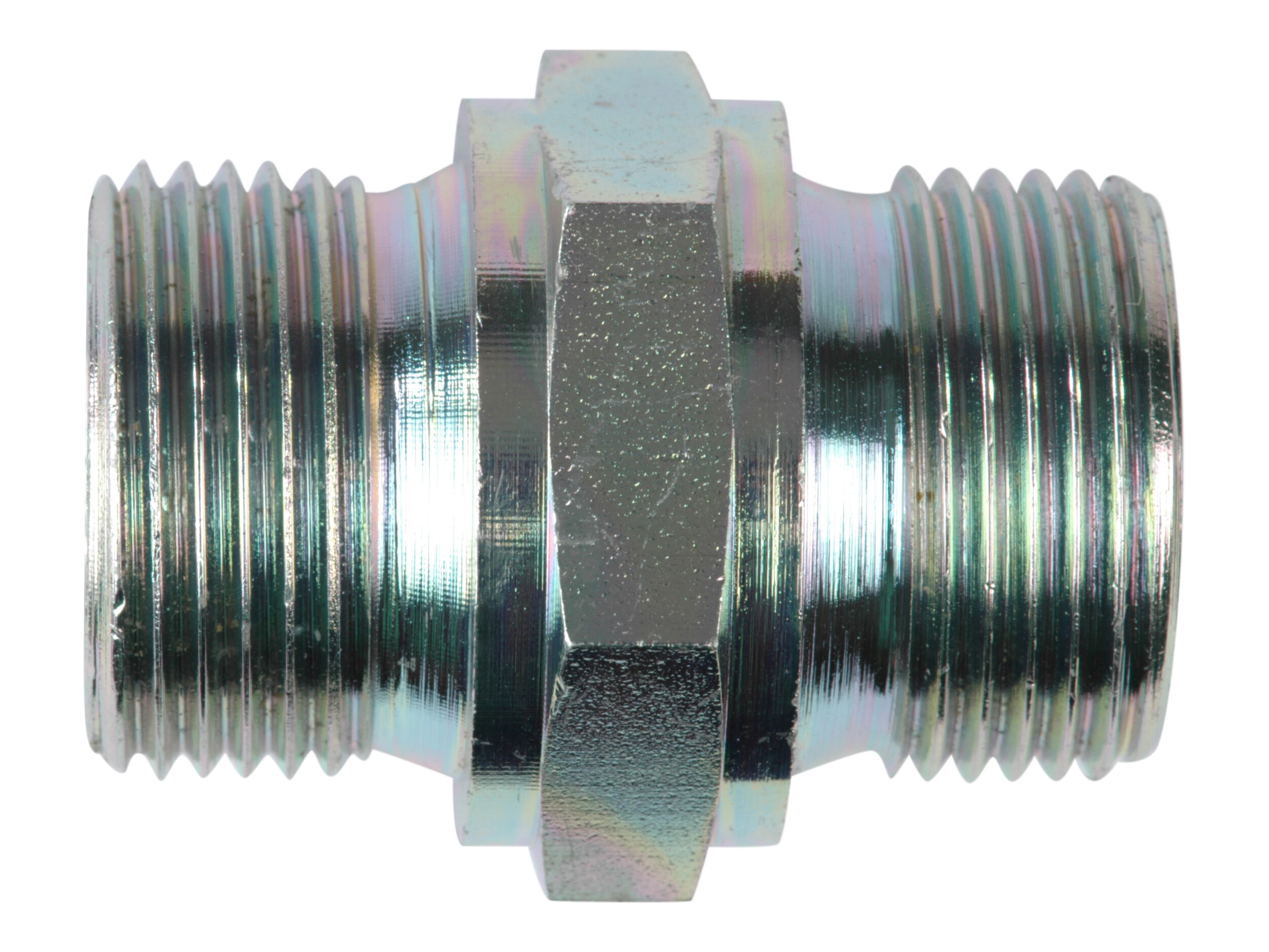

Adaptor 3/4" BSP

Adaptor External G-thread, BSPP 60 ° cone For washer seal / rubber steel washer

Partnumber:

01BP12

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

I.M.M Hydraulics

Dimension CH1

32 mm

Dimension F

G 3/4 BSP

Dimension L

47 mm

Dimension L2

16 mm

Material

Steel

Model code

1700-12-12

Pressure max.

250 bar

Surface treatment

Electro zinc plated

Thread outer

G 3/4 BSP

Package size

0 pcs

Barcode

5704334254690

Gross weight

0,14 Kg

Net weight

0,14 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Adaptor External G-thread, BSPP 60 ° cone For washer seal / rubber steel washer
