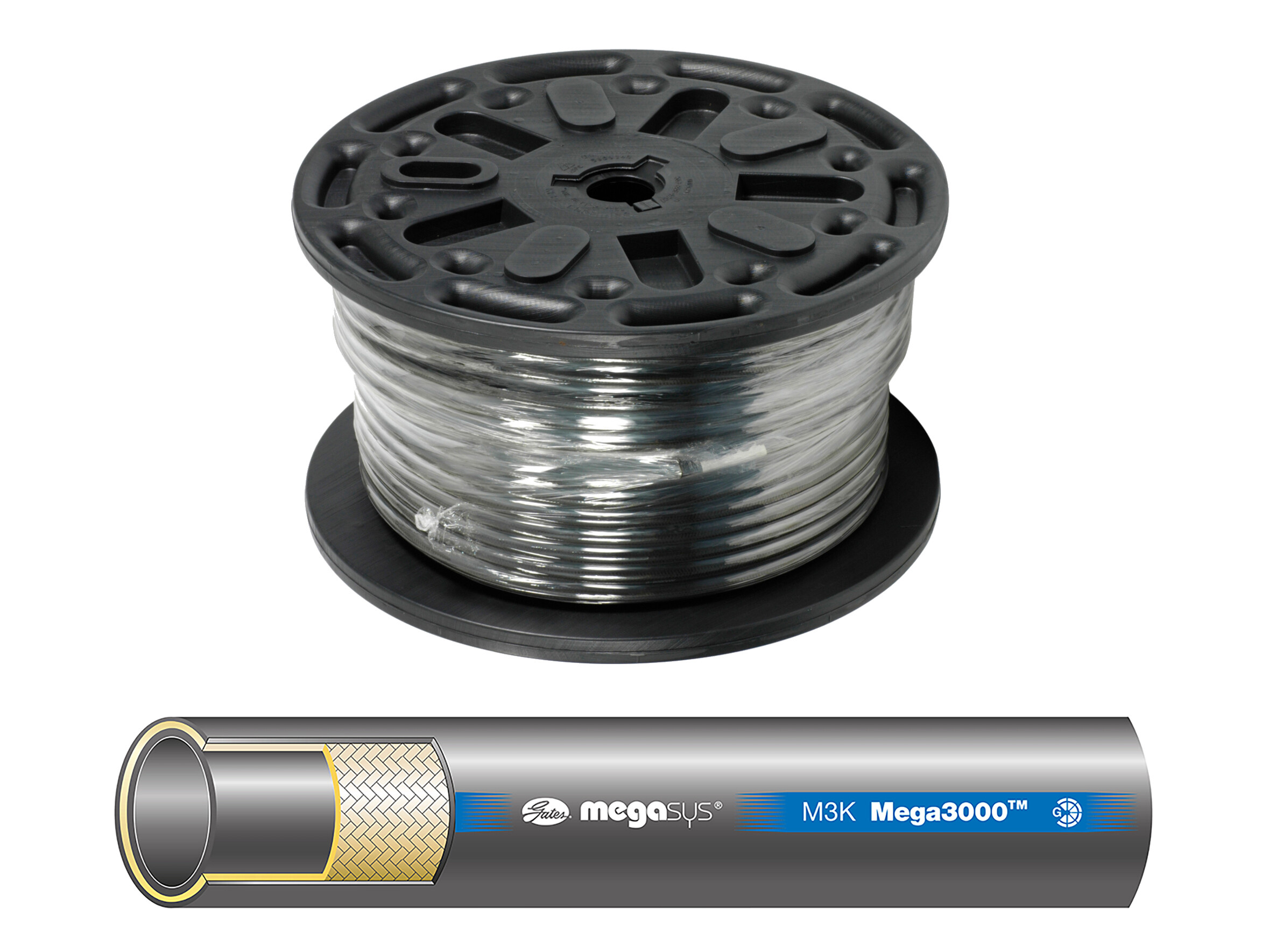

1" Hydraulic hose M3K - 225 bar - 2SC - 50M reel
Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils.
Are supplied on a reel containing 50 meter hose. 1 reel may hold up to maximum 3 pcs. of which the shortest may be minimum 3 meters.
Partnumber:
16M3K-RL50
Package size:
50 m
Min. order quantity is:
50 m
Användingsområde
Diesel, Grease, Oil, Water
Armering
2 layer high tensile steel wire braid
Bestillingsenhed
Plastic roll
Böjningsradie
115 mm
Diameter inv.
25 mm
Diameter utv.
37.7 mm
Flamresistent
Yes
Innertub
NBR (Nitrile)
Längd/rulle
50 m
Märke namn
Gates
REACH compliant
Yes
RoHs compliant
Yes
Slang godkännanden
ABS, BV, DNV, LR, MSHA
Slangdimension
1 "
Slangtyp
M3K
Standard EN
EN 857 1SC, EN 857 2SC
Standard ISO
ISO 11237 R17, ISO 18752 TYPE B
Standard SAE
SAE 100R17
Temperatur intermittent max.
+120 °C
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
225 bar
Tryck spräng min.
900 bar
Yttertub
NBR/PVC
Package size
50 m
Barcode
5414465102974
Gross weight
1,43 Kg
Net weight
1,43 Kg
Country of origin
TUR
Intrastat code
40092100
Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils.
Are supplied on a reel containing 50 meter hose. 1 reel may hold up to maximum 3 pcs. of which the shortest may be minimum 3 meters.
Crimp dimensions for 16M3K-RL50
|
Hose type |
Diamter - inch |
Hose coupling type |
Ferrule |
Crimp dimension - mm |
Skiving - int. |
Skiving - ext. |
Operating pressure |
|---|---|---|---|---|---|---|---|
| 16M3K | 1 | P16 | P1630 |
40.7 mm
±0.1
|
No | No | 225 |
| 16M3K | 1 | G16 |
45.7 mm
±0.25
|
No | No | 225 | |
| 16M3K | 1 | R16 | R1630 |
40.6 mm
0.0
0.4 |
No | No | 225 |
