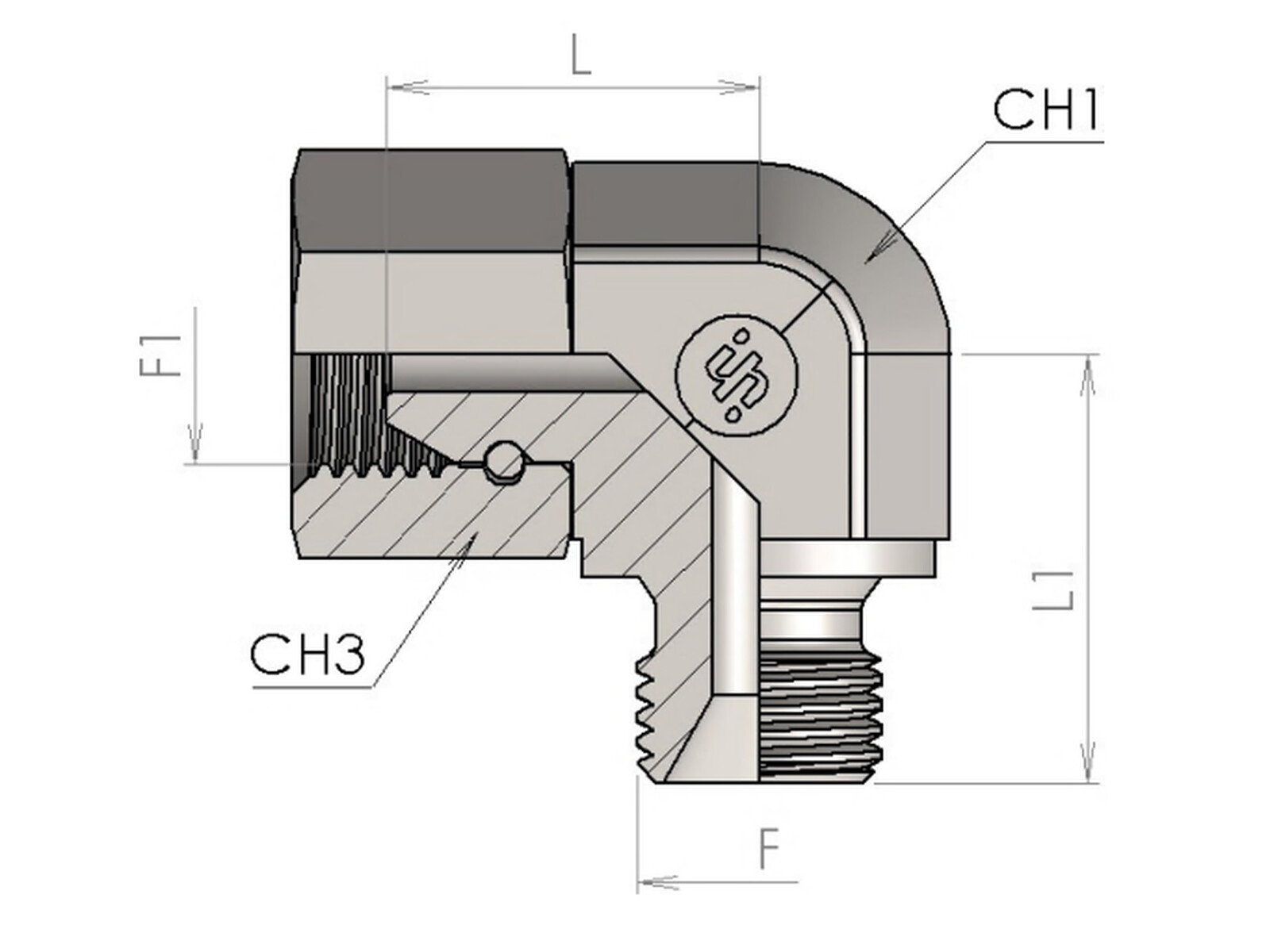

Elbow 1/4 BSP, short Fabricated version for seal
Elbow 1/4 BSP, short Fabricated version for seal
Partnumber:
16BP04SP
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
I.M.M Hydraulics
CH1
19 mm
CH3
19 mm
F
G 1/4 BSP
F1
G 1/4 BSP
L
20 mm
L1
23 mm
Material
Steel
Material quality
1,0726
Model code
3200-04-04
Pressure max.
350 bar
Surface treatment
Electro zinc plated
Thread inner
G 1/4 BSP
Thread outer
G 1/4 BSP
Ø tube
8 mm
Pakke str.
0 pcs
Stregkode
5704334310778
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
swe
Intrastat varekode
73071110
Elbow 1/4 BSP, short Fabricated version for seal
