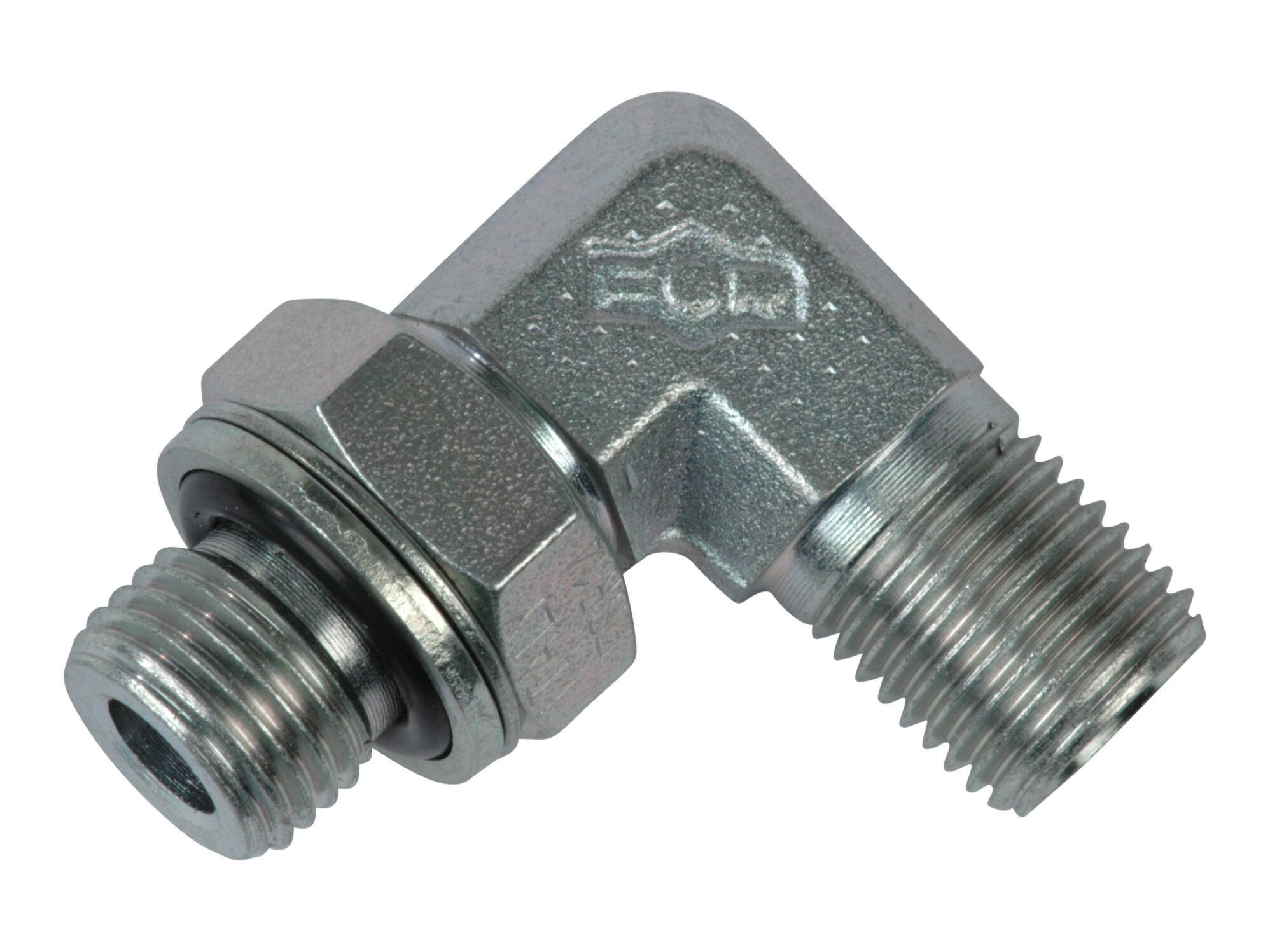

Adjustable elbow 1/4 BSPx1/4 B

Varenummer:

06BB0404

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Dimension B

27 mm

Dimension CH

19 mm

Dimension D

31.5 mm

Material

Steel

Pressure max.

400 bar

Size

6 mm

Surface treatment

Electro zinc plated

Thread F (See drawing)

G1/4 - BSP

Thread F1 (See drawing)

G1/4 - BSP

Thread outer

G 1/4 BSP

Package size

0 pcs

Barcode

5704334002352

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Adjustable elbow 1/4 BSPx1/4 B

Note: Opening 3D files requires a program that supports the file format
