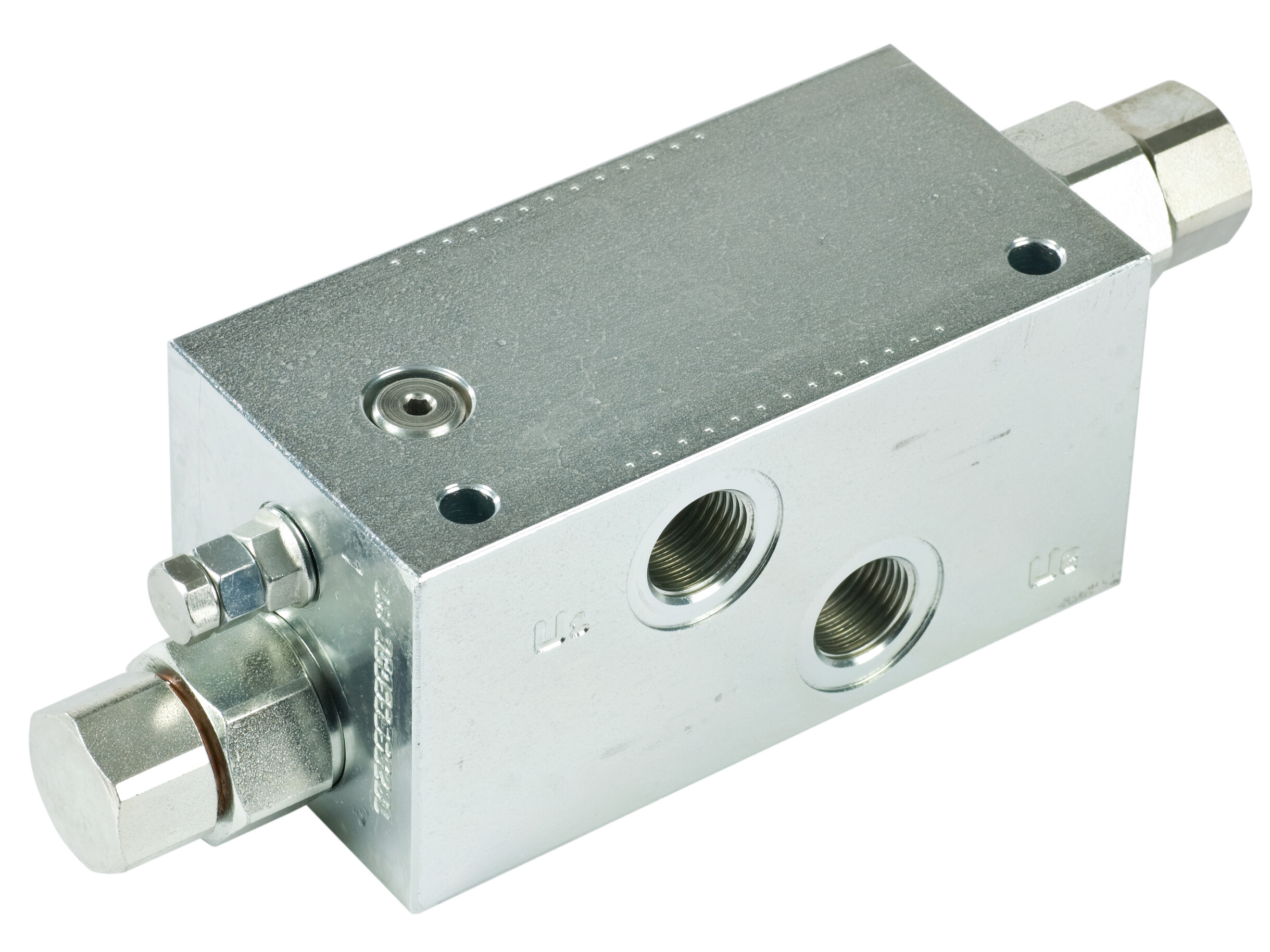

Double overcentervalve 1/2 VODL/N1516/12/G5.p4.PR/ac

It is preferable to place the valve as close to the actuator as possible, preferably directly on the actuator with fixed connections. This provides maximum protection in case of hose breaks and the like

Artikelnummer:
1556532101

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Brand Name
Walvoil

Contamination level max.
18/16/13 - ISO 4406

Flow rate nominal LMin
160 lpm

Material
Steel

Model code
VODL/N1516/12/G5.p4.PR/ac

Oil viscocity recommended
10 - 200 cSt

Pilot ratio
1:4

Pressure max.
350 bar

Pressure setting max.
350 bar

Pressure setting min.
50 bar

Sealing material
NBR

Temperature max.
+80 °C

Temperature min.
-20 °C

Thread
G 1/2 BSP
Package size
0 pcs

Barcode
5704334247142

Gross weight
5,35 Kg

Net weight
5,35 Kg

Country of origin
ITA

Intrastat code
84812010

It is preferable to place the valve as close to the actuator as possible, preferably directly on the actuator with fixed connections. This provides maximum protection in case of hose breaks and the like
