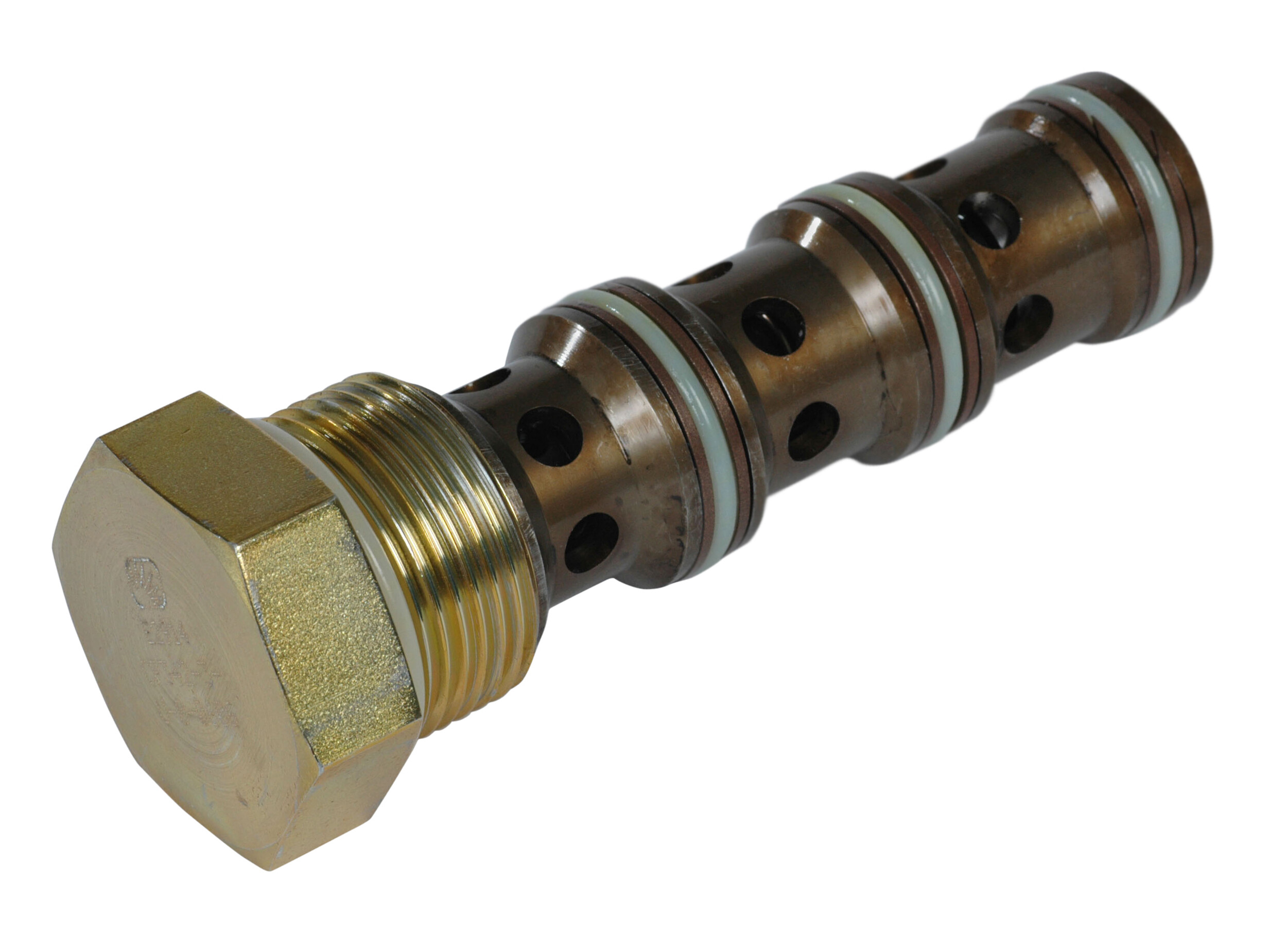

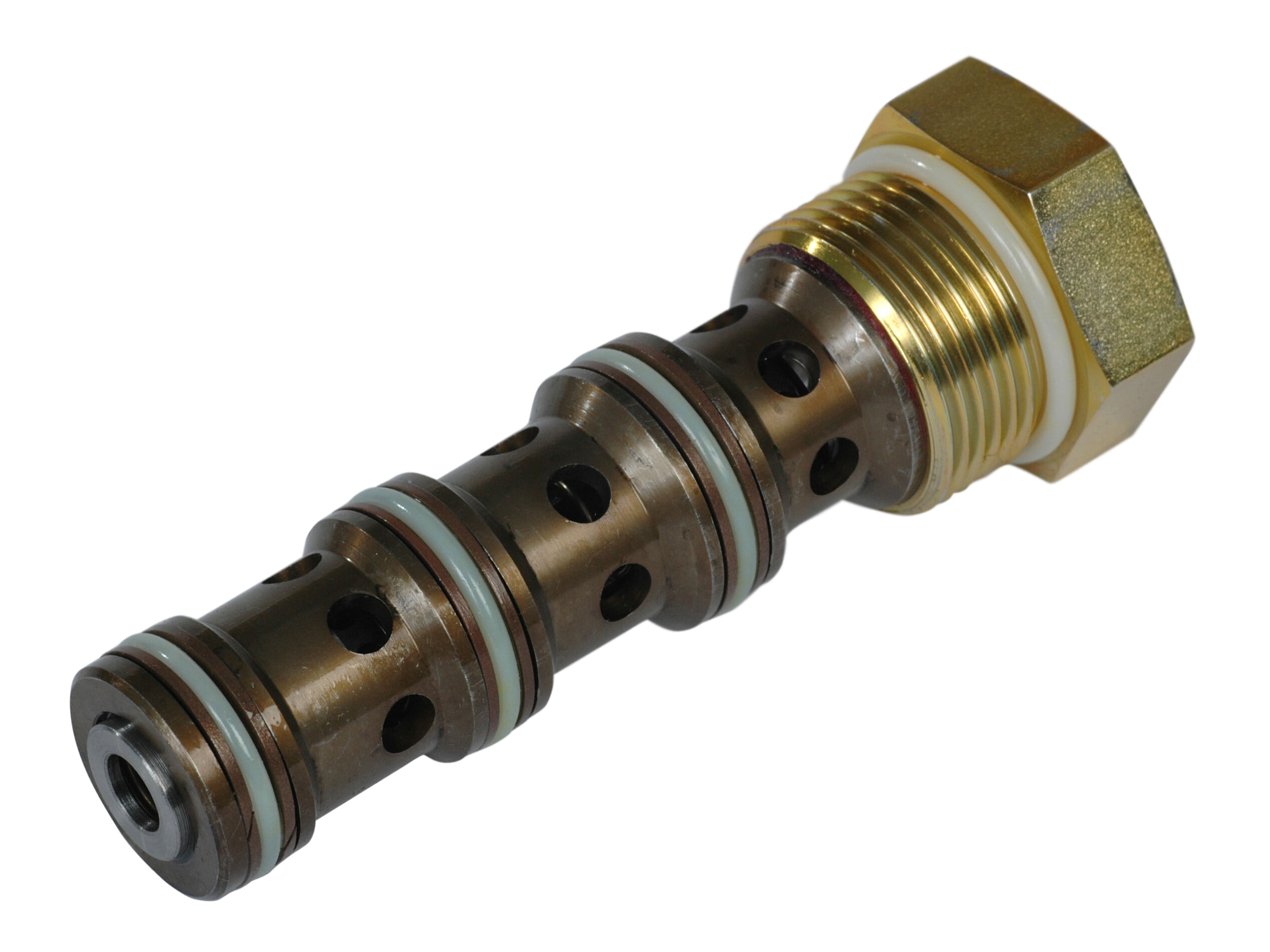

Flow Divider ventil 45l/m 1:1 CP342-3-U-0-0606
This is a fixed ratio flow divider/combiner valve.
In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.
In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve.
Varenummer:
137698
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Cavity
CP16-4
Flow Nominel
150 lpm
Flow maks. reguleret
45 lpm
Flow min. reguleret
45 lpm
Forureningsgrad maks.
20/18/14 - ISO 4406
Model kode
CP342-3-U-0-0606
Mærke navn
Danfoss
Olieviskositet anbefalet
12 - 54 cSt
Pakningsmateriale
NBR
Temperatur maks.
+100 °C
Temperatur min.
-40 °C
Tilspændingsmoment
122 - 136 Nm
Tryk maks.
450 bar
Trykkompenseret
Yes
Package size
0 pcs
Barcode
5704334467632
Gross weight
0,37 Kg
Net weight
0,37 Kg
Country of origin
ITA
Intrastat code
84812010
This is a fixed ratio flow divider/combiner valve.
In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.
In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve.
