Sequence valve 35l/m 210Bar (7-97) CP240-2-B-0-A-C-XXX
CP240-2, Sequence Valve, Normally Closed, Spool Type, Hydraulic Pilot, Internal Drain.

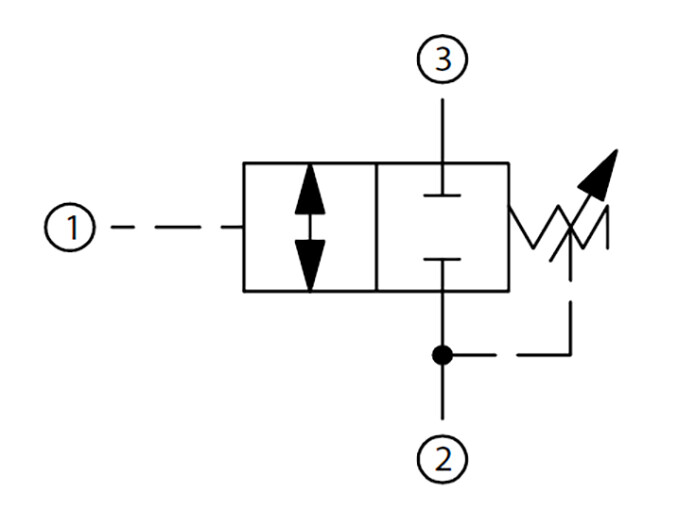

This is a hydraulically pilot operated spool valve, normally closed from port 3 to 2 with the spring chamber referenced to port 2. When the pilot pressure on port 1 reaches the setting, the valve will begin to open port 3 to 2. Port 2 should always be connected to tank. This is ideal for sensing pressure in a remote area of a circuit to sequence another operation.
Partnumber:
132078.000
Package size:
1 pcs
Min. order quantity is:
1 pcs
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow rate nominal LMin
23 lpm
Key size
25.4 mm
Model code
CP240-2-B-0-A-C-XXX
Oil viscocity recommended
12 - 54 cSt
Pressure max.
210 bar
Pressure setting max.
97 bar
Pressure setting min.
7 bar
Sealing material
NBR
Torque tightening
41-47 Nm
Förpackningsstorlek
1 pcs
Streckkod
5704334881674
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
ita
Intrastat artikelkod
84812010
CP240-2, Sequence Valve, Normally Closed, Spool Type, Hydraulic Pilot, Internal Drain.
This is a hydraulically pilot operated spool valve, normally closed from port 3 to 2 with the spring chamber referenced to port 2. When the pilot pressure on port 1 reaches the setting, the valve will begin to open port 3 to 2. Port 2 should always be connected to tank. This is ideal for sensing pressure in a remote area of a circuit to sequence another operation.
