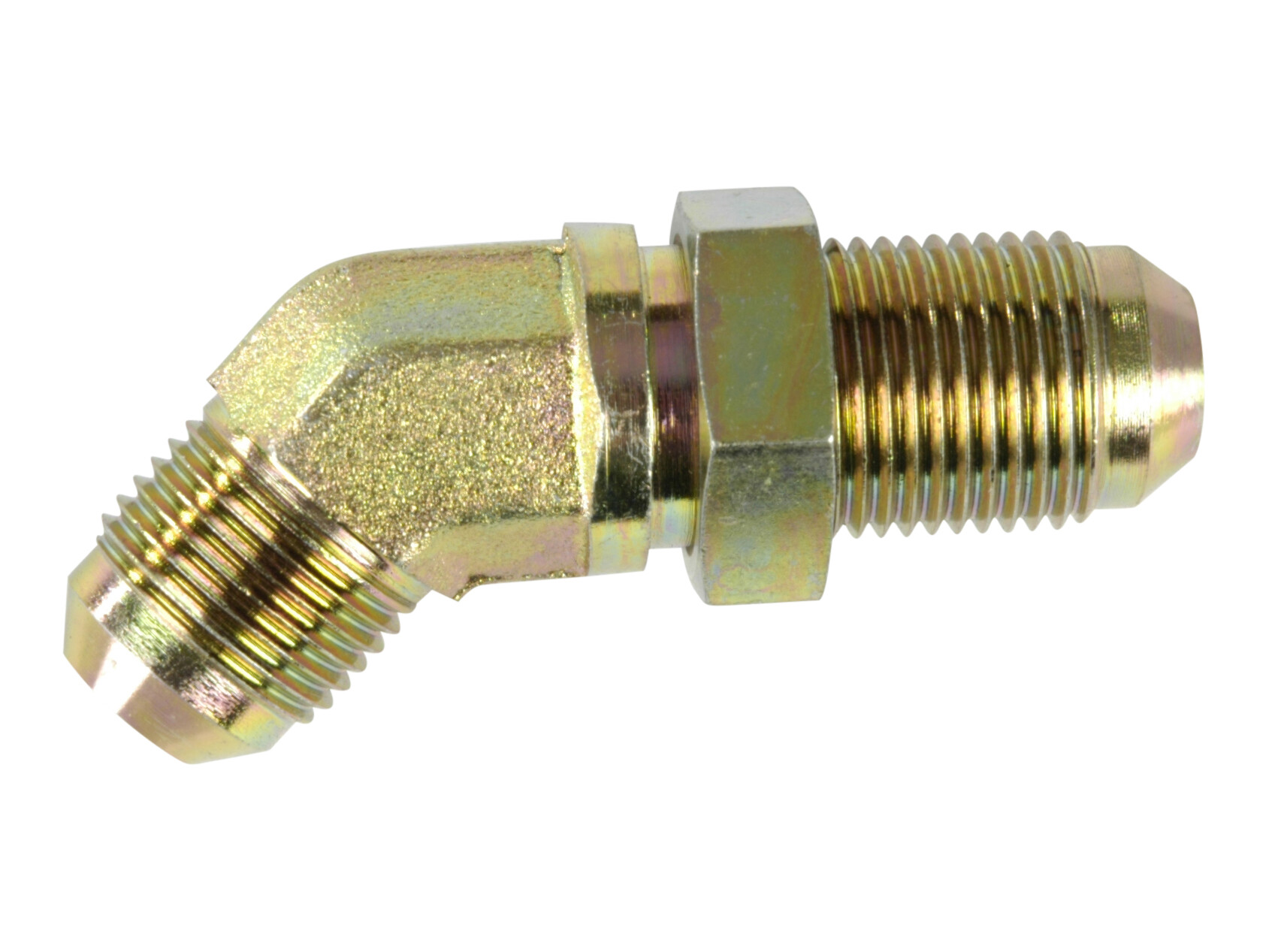

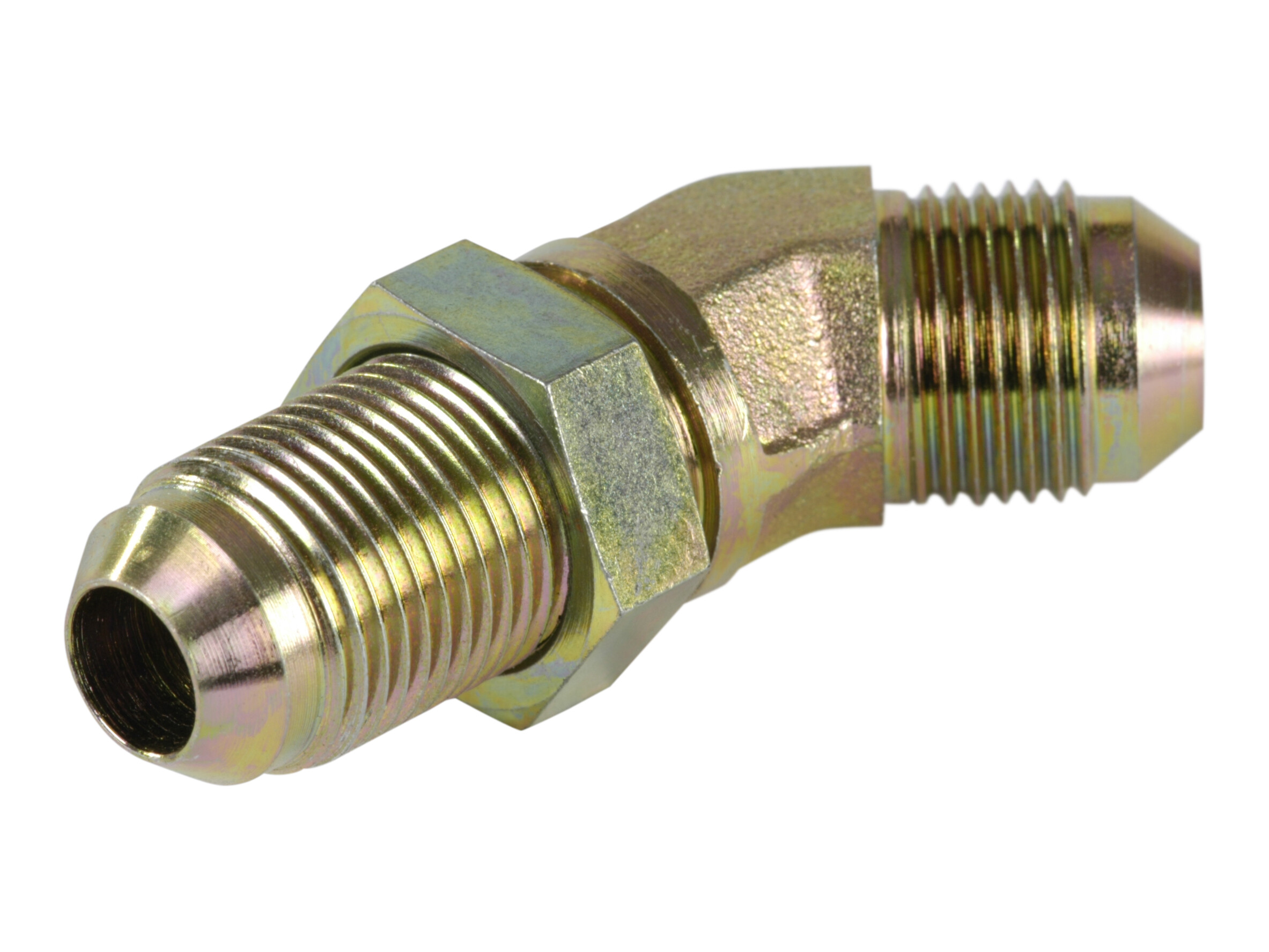

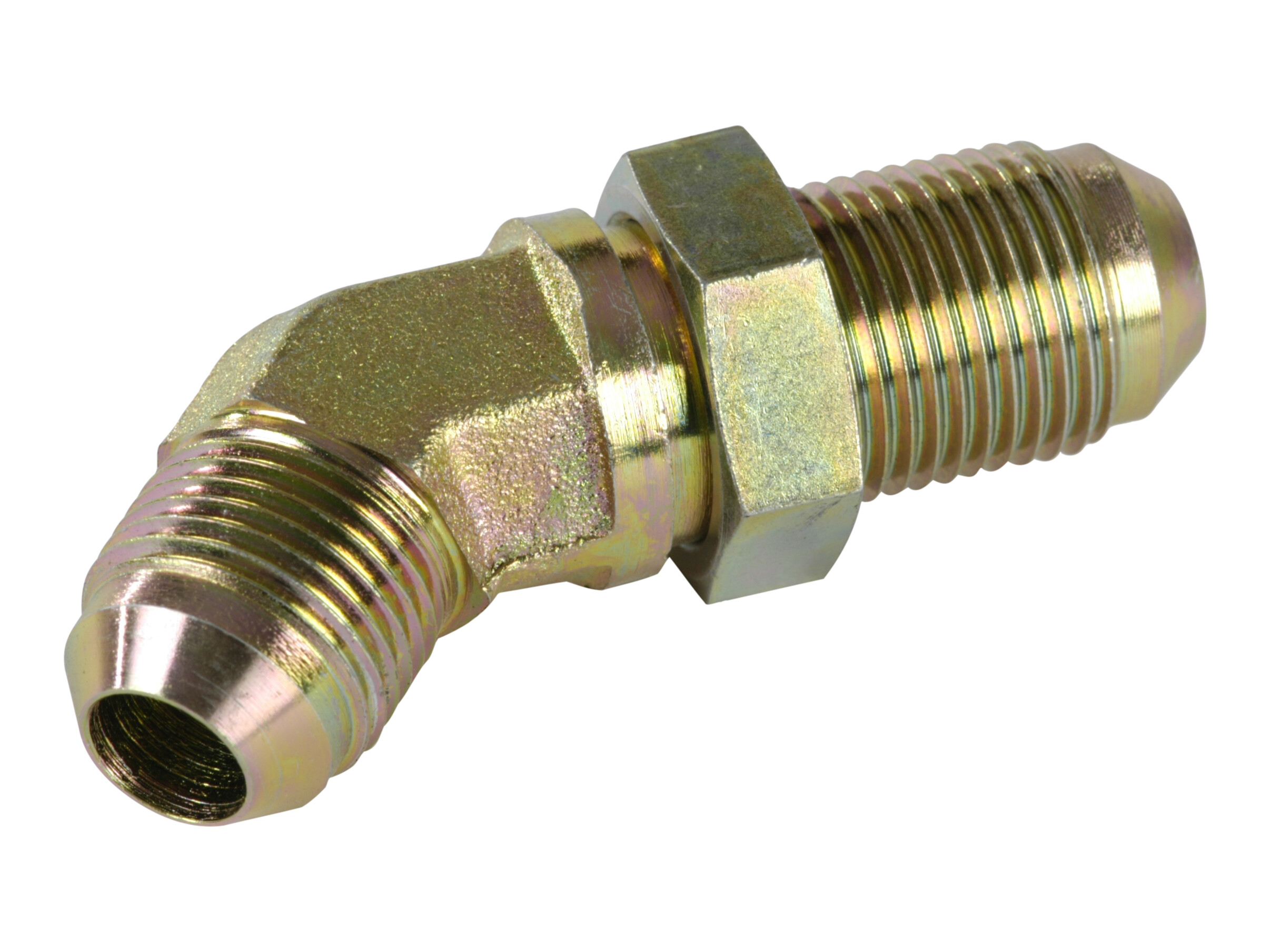

S665-12-45U bulkhead elbow
S665-12-45U bulkhead elbow
Partnumber:
VUP-12
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
Dimension B
25 mm
Dimension C
49 mm
Dimension CH
24 mm
Dimension D
35 mm
Dimension J
3/4-16 JIC
Dimension J1
3/4-16 JIC
Dimension T
12 mm
Dimension T1
12 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
3/4-16 JIC
Pakke str.
0 pcs
Stregkode
5704295979540
Brutto vægt
0,12 Kg
Netto vægt
0,12 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
S665-12-45U bulkhead elbow
