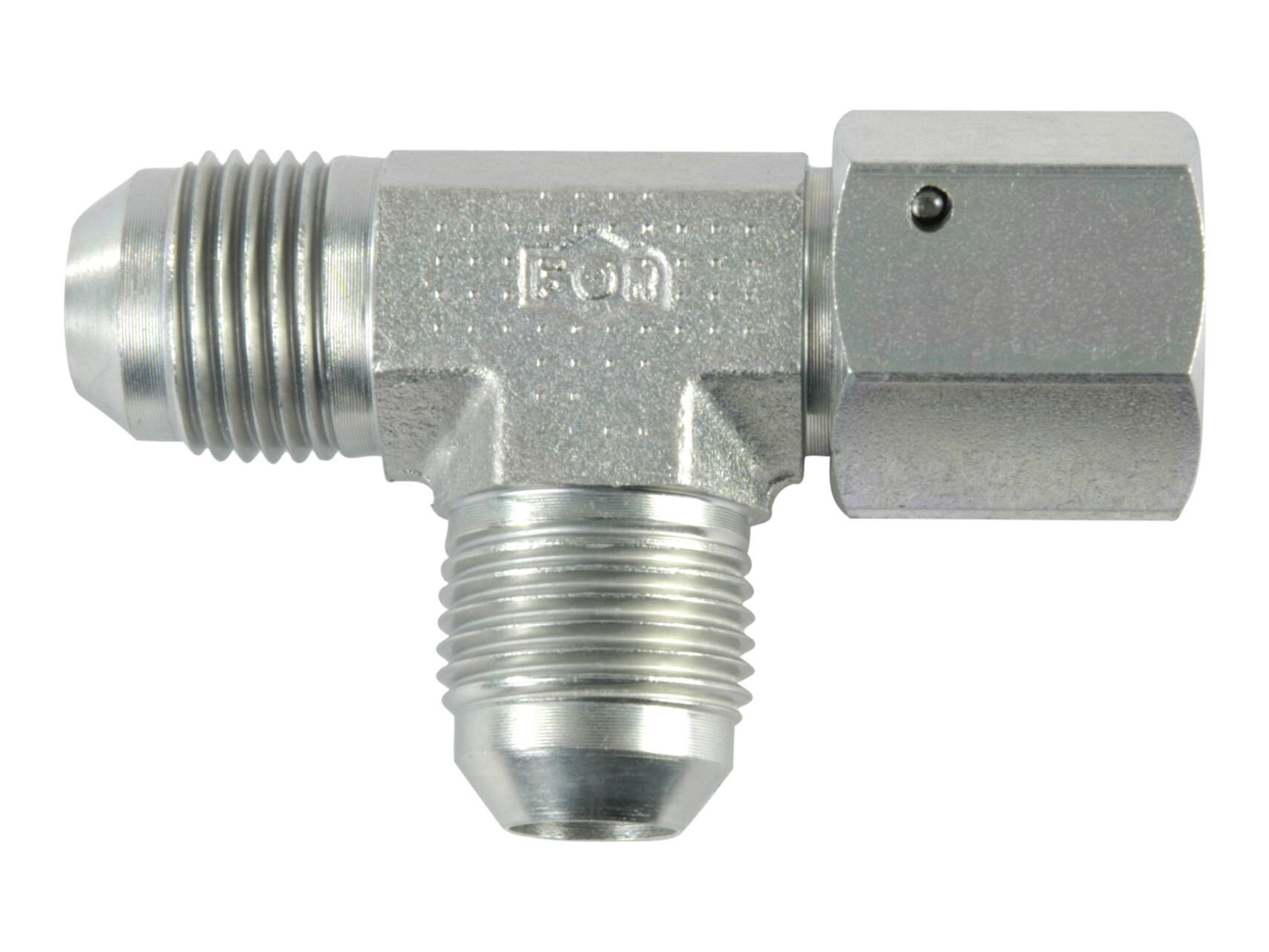

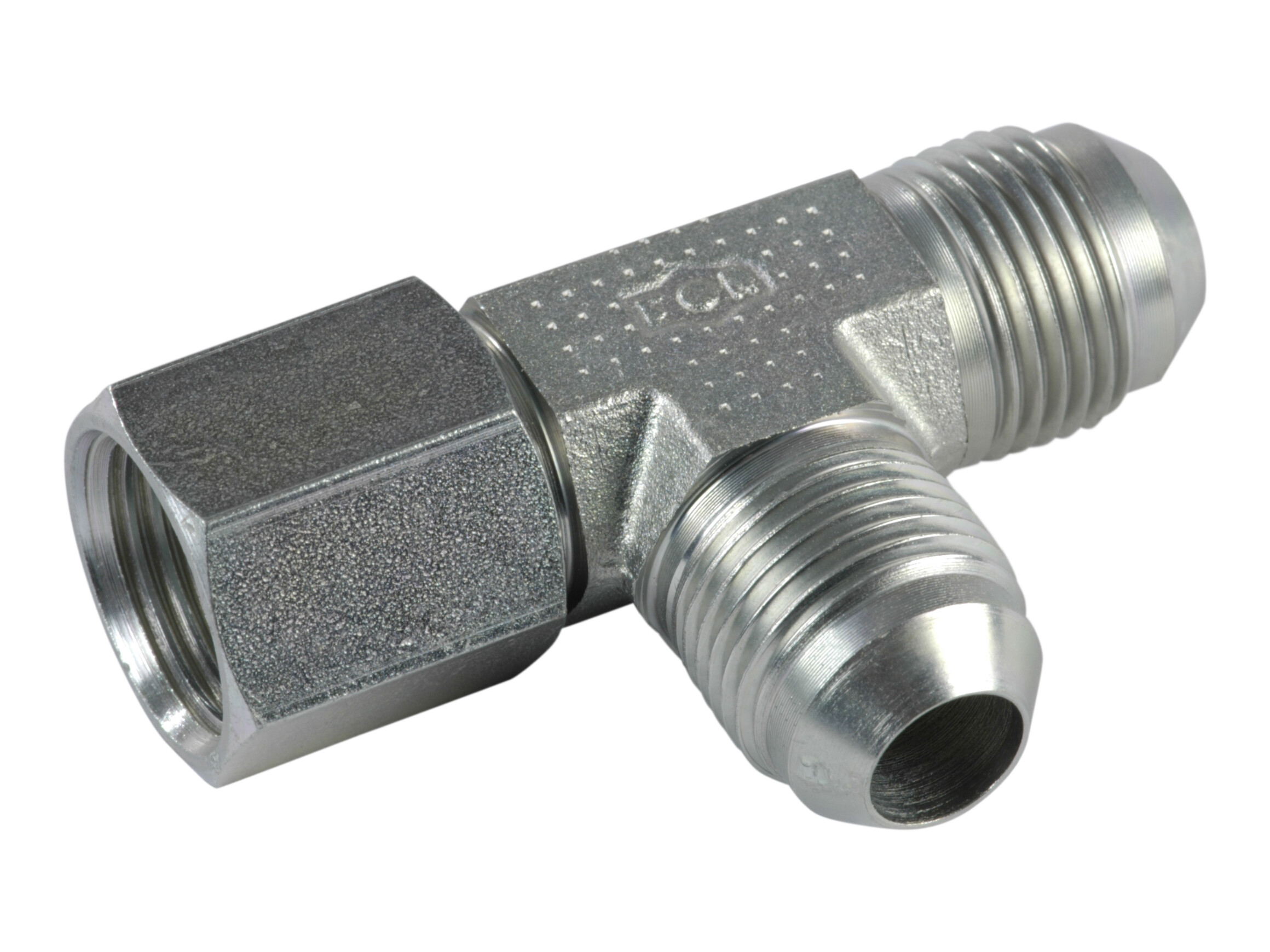

L-forskruning stilbar 3/4-16 JIC udv x 3/4-16 JIC omløber
L-forskruning stilbar 3/4-16 JIC udv x 3/4-16 JIC omløber
Partnumber:
TGD-12
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
Dimension B
31.5 mm
Dimension B1
31.5 mm
Dimension C
35.5 mm
Dimension CH
22 mm
Dimension J
3/4-16 JIC
Dimension J1
3/4-16 JIC
Dimension J2
3/4-16 JIC
Dimension T
12 mm
Dimension T1
12 mm
Material
Stål
Pressure max.
350 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread inner
3/4-16 JIC
Thread outer
3/4-16 JIC
Package size
0 pcs
Barcode
5704334062127
Gross weight
0,14 Kg
Net weight
0,14 Kg
Country of origin
ITA
Intrastat code
73071110
L-forskruning stilbar 3/4-16 JIC udv x 3/4-16 JIC omløber
