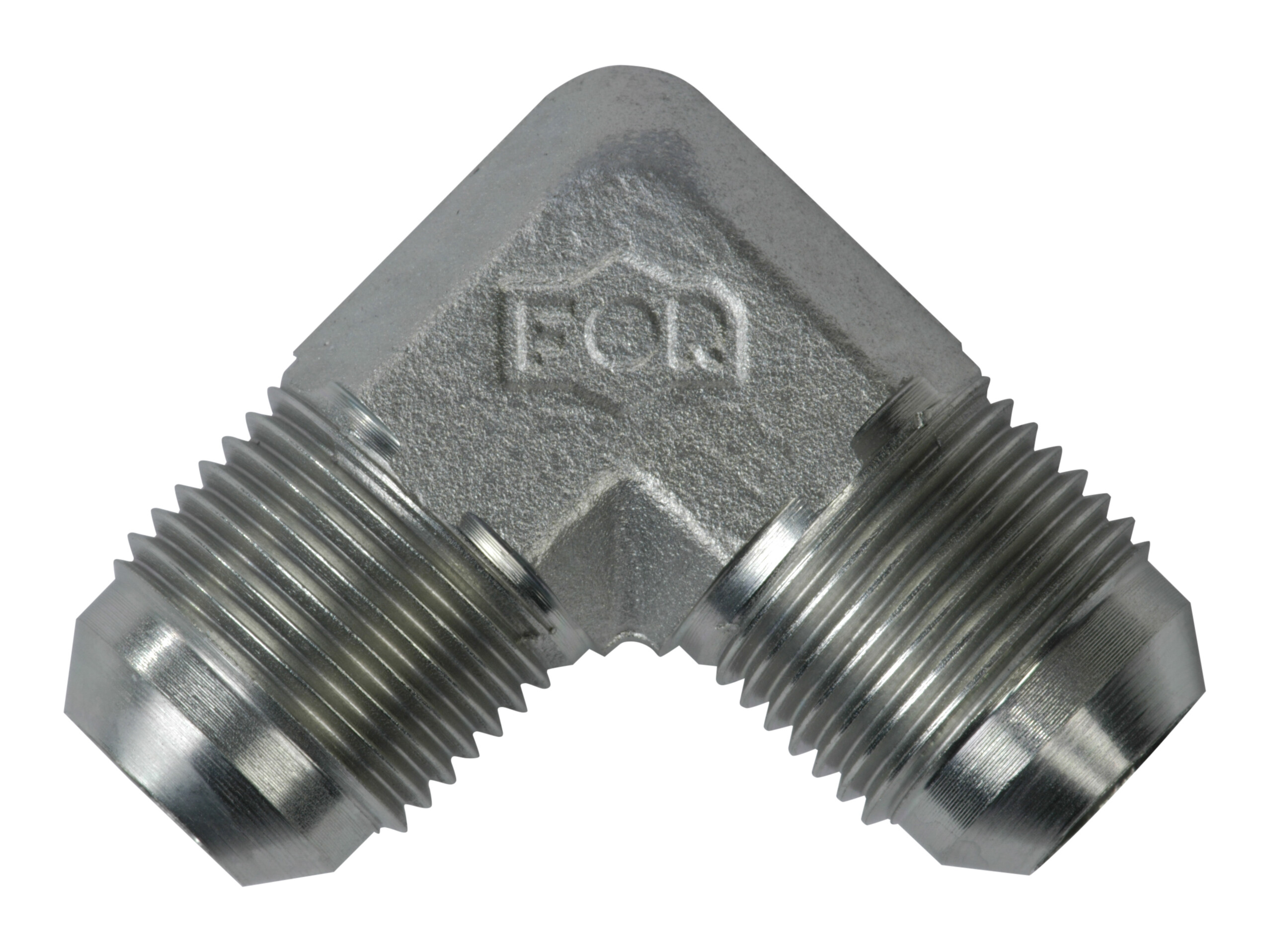

CU-12 - Vinkelsamler 90 gr 3/4-16 JIC udv x 3/4-16 JIC udv
Vinkelsamler 90 gr 3/4-16 JIC udv x 3/4-16 JIC udv
Partnumber:
CU-12
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
Dimension B
31.5 mm
Dimension B1
31.5 mm
Dimension J
3/4-16 JIC
Dimension J1
3/4-16 JIC
Dimension T
12 mm
Dimension T1
12 mm
Material
Stål
Pressure max.
350 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
3/4-16 JIC
Package size
0 pcs
Barcode
5704334232469
Gross weight
0,09 Kg
Net weight
0,09 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelsamler 90 gr 3/4-16 JIC udv x 3/4-16 JIC udv
Note: Opening 3D files requires a program that supports the file format
