Straight fitting, reduction
\ufeff

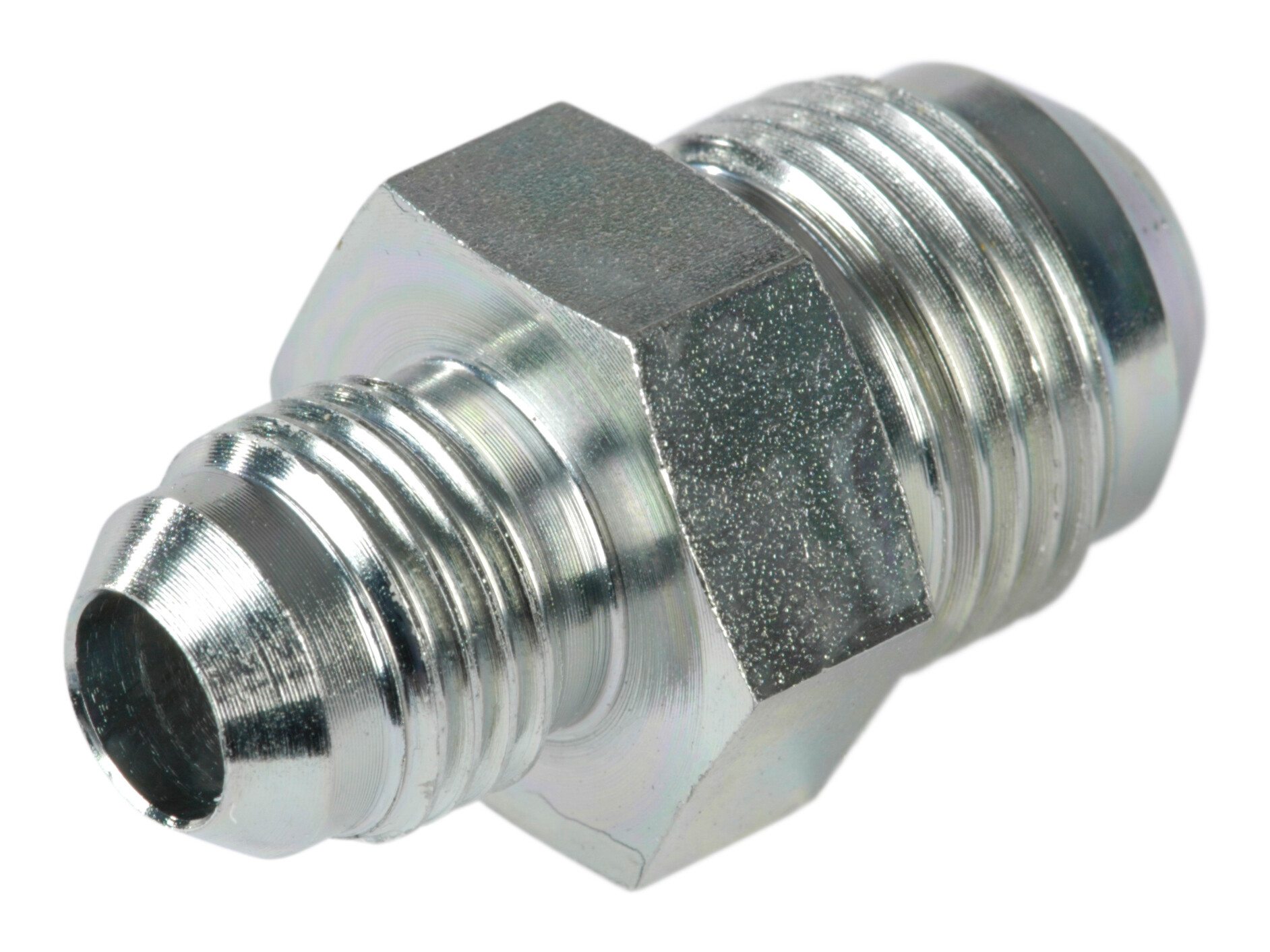

JIC 37° straight male shrinking extension connector
Partnumber:
MU-12-10
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
39 mm
Angle
0 °
B
17 mm
B1
14 mm
Brand Name
FOR
CH
21 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe 1
12 mm
Diameter pipe 2
10 mm
Dimension J1
9/16-18 JIC
J
3/4-16 JIC
Material
Steel
Model code
SA102001/1210
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
T
12 mm
T1
10 mm
Thread outer
3/4-16, 9/16-18 JIC
Package size
0 pcs
Barcode
5704334214274
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
JIC 37° straight male shrinking extension connector
