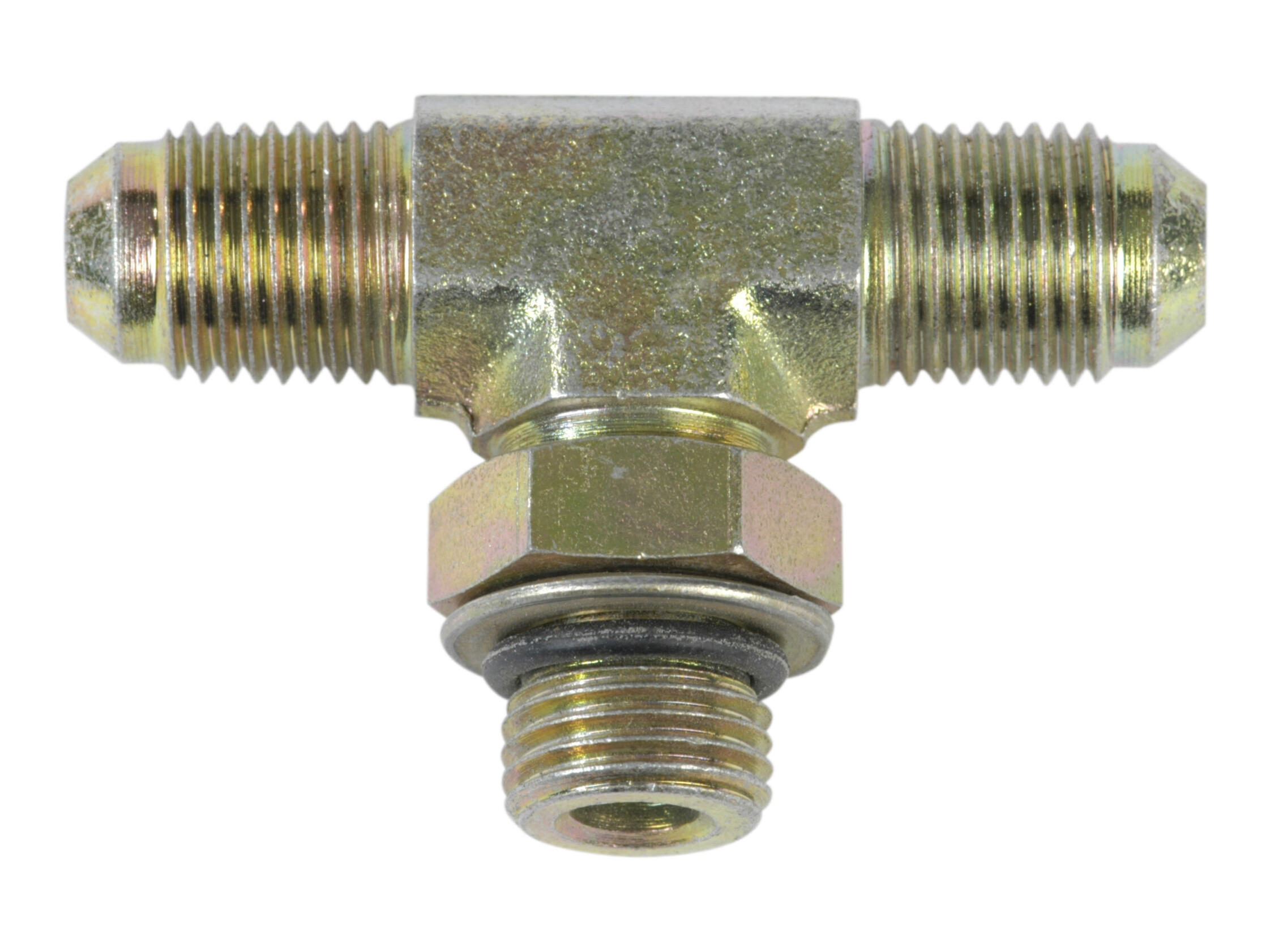

    • T-forskruning stilbar 1/2-20 JIC udv x 1/2-20 UNF udv

    T-forskruning stilbar 1/2-20 JIC udv x 1/2-20 UNF udv

    T-forskruning stilbar 1/2-20 JIC udv x 1/2-20 UNF udv

    Artikelnummer:
    TOL-08-1/2
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    B
    24 mm
    B1
    24 mm
    Brand Name
    FOR
    C
    27,5 mm
    CH
    17 mm
    Corrosion resistance
    1400 hours salt spray DIN EN ISO 9227
    Diameter pipe
    8 mm
    Dimension F
    1/2-20 UNF
    Dimension J1
    1/2-20 JIC
    J
    1/2-20 JIC
    Material
    Stål
    Pressure max.
    416 bar
    Surface treatment
    El-forzinket / hvidkromatiseret
    T
    8 mm
    T1
    8 mm
    Thread outer
    1/2-20 JIC
    Thread outer
    1/2-20 UNF
    Package size
    0 pcs
    Barcode
    5704334395164
    Gross weight
    0,05 Kg
    Net weight
    0,05 Kg
    Country of origin
    ITA
    Intrastat code
    73071110

    T-forskruning stilbar 1/2-20 JIC udv x 1/2-20 UNF udv

    3D-file

    Note: Opening 3D files requires a program that supports the file format
