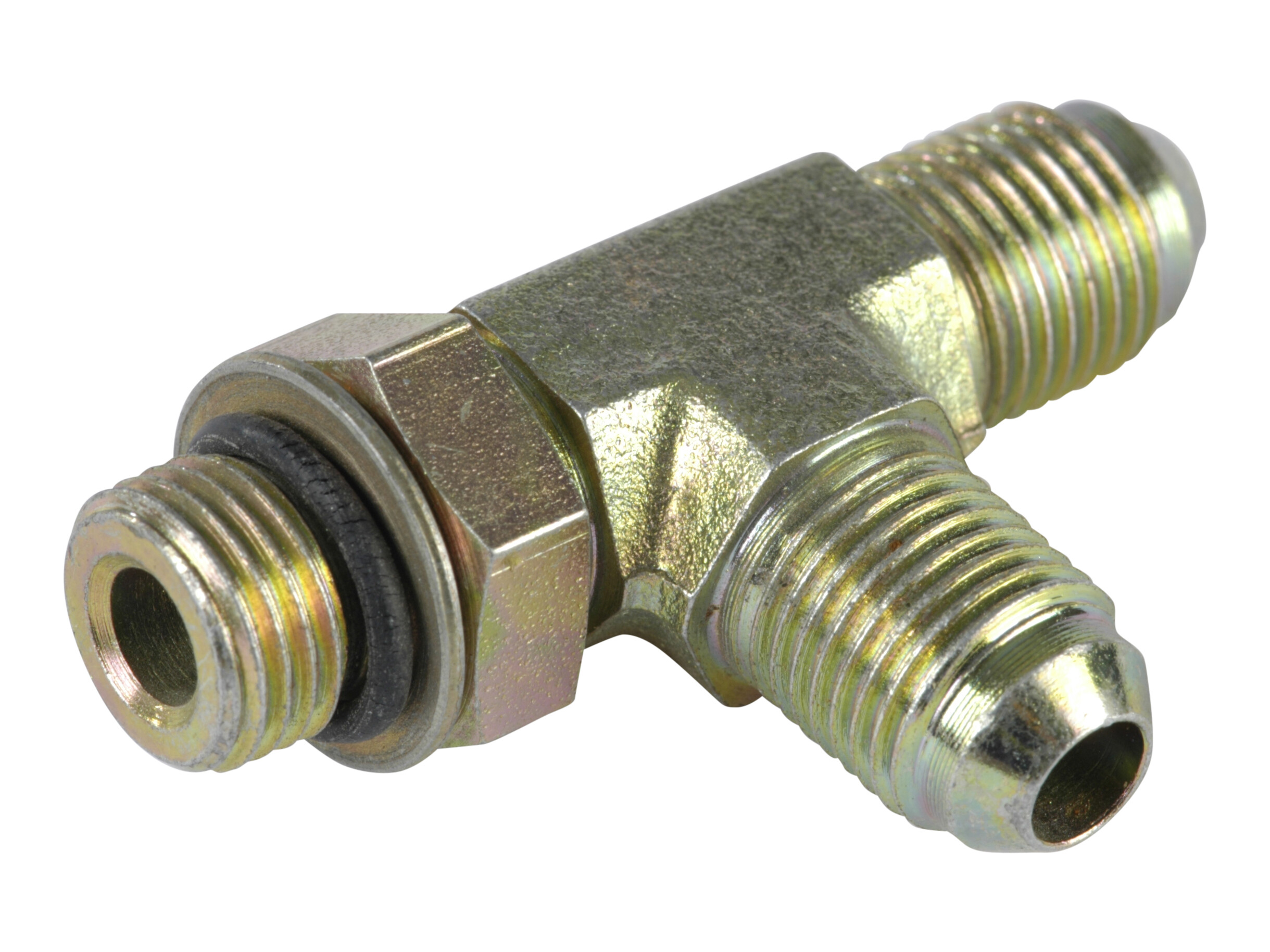

L-forskruning stilbar 1/2-20 JIC udv x 1/2-20 UNF udv
L-forskruning stilbar 1/2-20 JIC udv x 1/2-20 UNF udv
Partnumber:
TOD-08-1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
8 mm
Dimension B
24 mm
Dimension B1
24 mm
Dimension C
27.5 mm
Dimension CH
17 mm
Dimension F
1/2-20 UNF
Dimension J
1/2-20 JIC
Dimension J1
1/2-20 JIC
Dimension T
8 mm
Dimension T1
8 mm
Material
Stål
Pressure max.
416 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
1/2-20 JIC
Thread outer
1/2-20 UNF
Package size
0 pcs
Barcode
5704334274773
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
L-forskruning stilbar 1/2-20 JIC udv x 1/2-20 UNF udv
