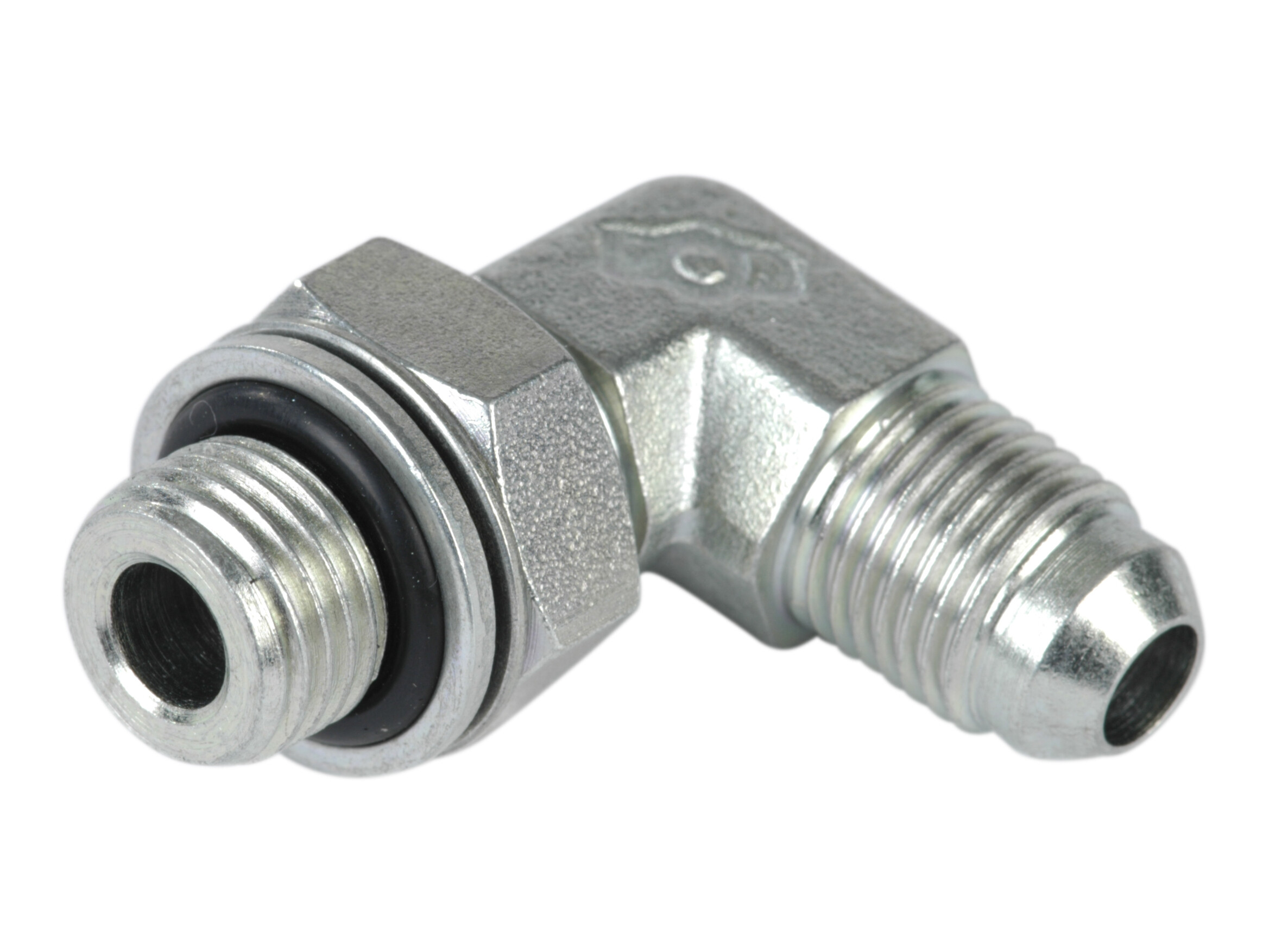

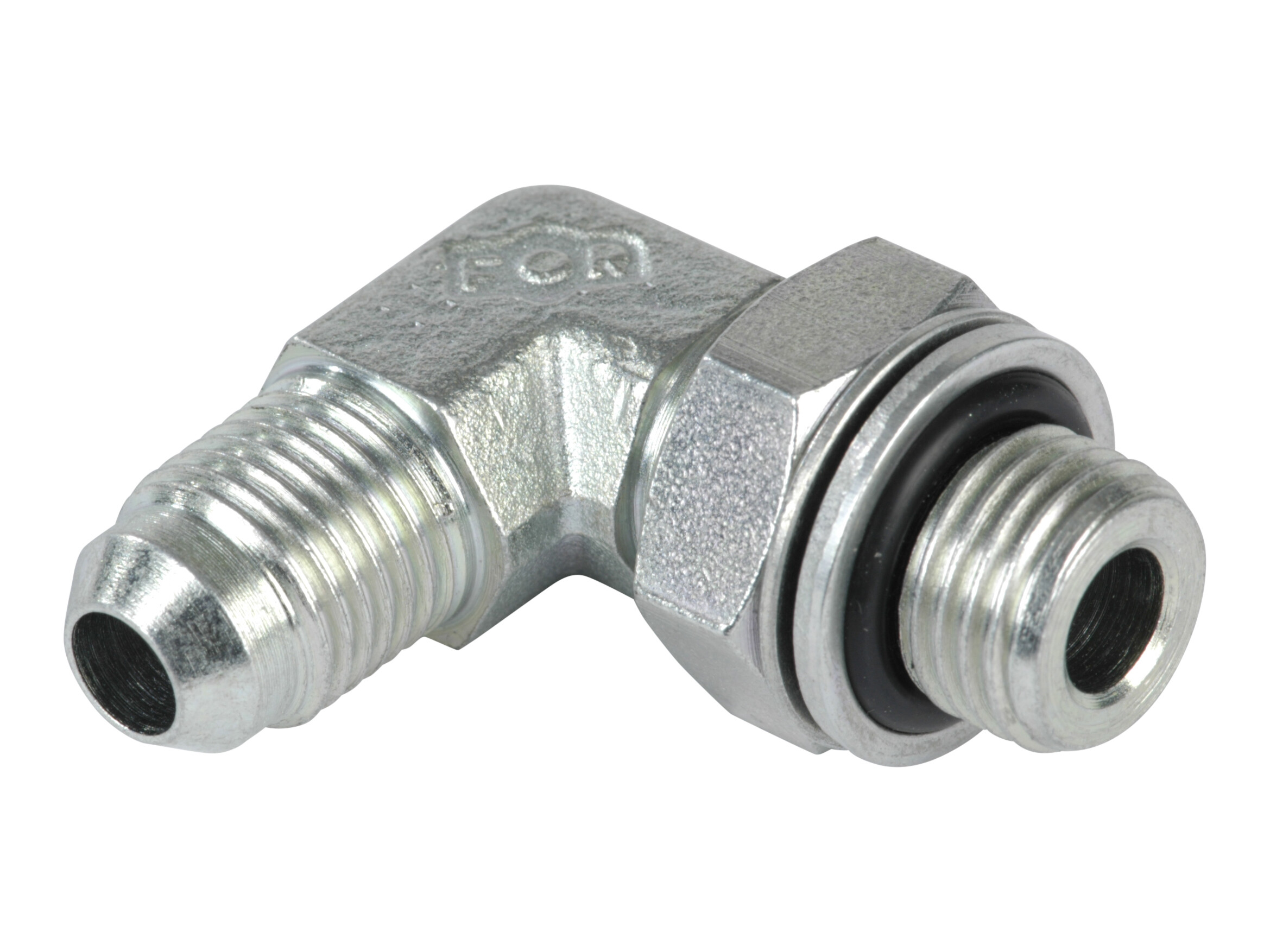

Vinkelindskruning 90 gr 1/2-20 JIC udv x 1/4 BSP udv
Vinkelindskruning 90 gr 1/2-20 JIC udv x 1/4 BSP udv
Varenummer:
CO-08-1/4
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
90 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
8 mm
Dimension B
27 mm
Dimension C
31.5 mm
Dimension CH
19 mm
Dimension F
G 1/4 BSP
Dimension J
1/2-20 JIC
Dimension T
8 mm
Material
Stål
Pressure max.
416 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
1/2-20 JIC
Thread outer
G 1/4 BSP
Package size
0 pcs
Barcode
5704334273868
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 90 gr 1/2-20 JIC udv x 1/4 BSP udv
