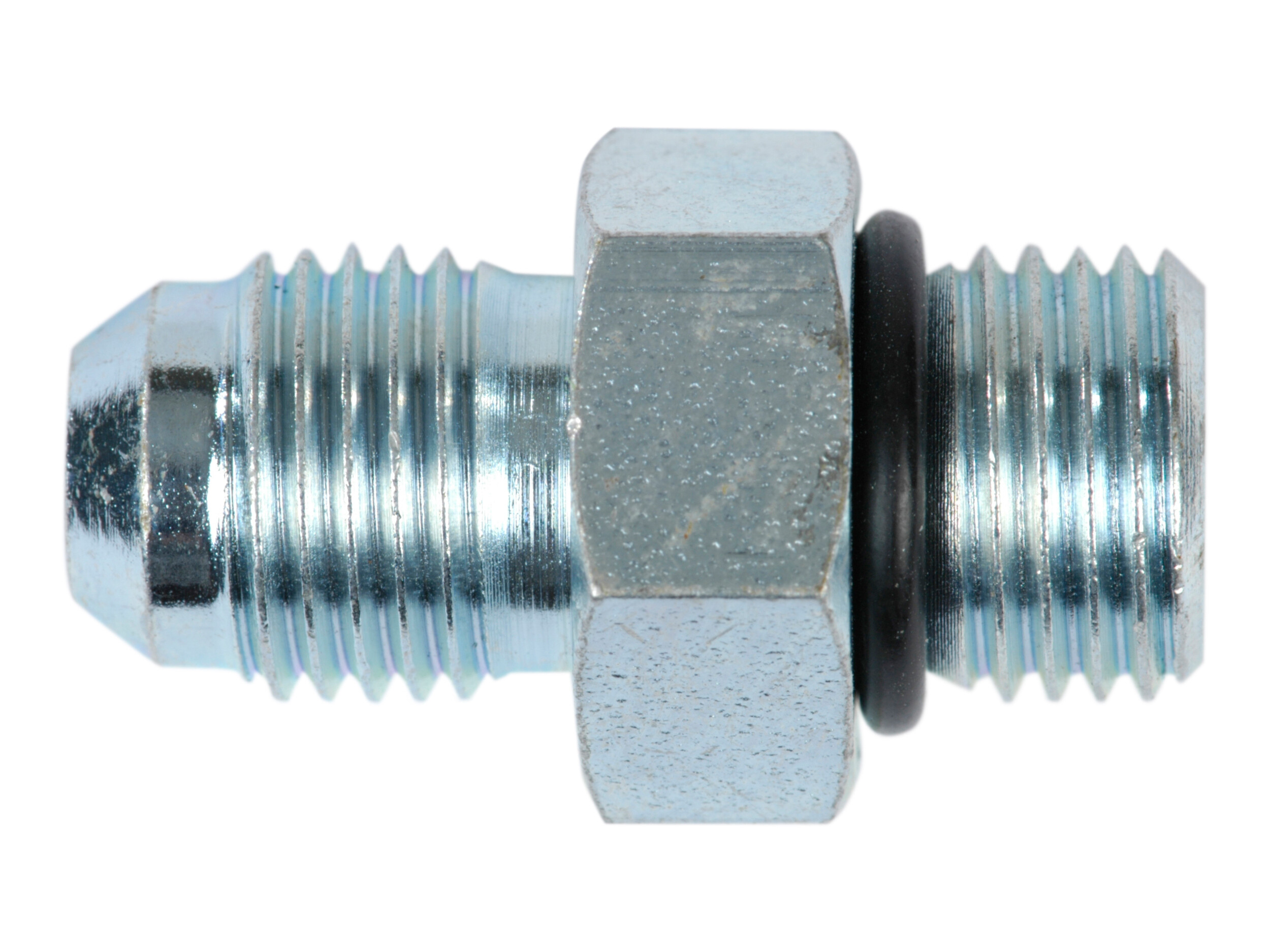

Indskruning 1/2-20 JIC udv x 1/2-20 UNF udv
Indskruning 1/2-20 JIC udv x 1/2-20 UNF udv
Partnumber:
M-08-1/2
Package size:
0 stk
Min. order quantity is:
1 stk
A
31 mm
Angle
0 °
B
14 mm
Brand Name
FOR
CH
16 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
9 mm
Diameter pipe
8 mm
F
1/2-20 UNF
J
1/2-20 JIC
Material
Stål
Model code
A102012/0812
Pressure max.
416 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket / hvidkromatiseret
T
8 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1/2-20 JIC
Thread outer
1/2-20 UNF
Package size
0 stk
Barcode
5704334274599
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 1/2-20 JIC udv x 1/2-20 UNF udv
Note: Opening 3D files requires a program that supports the file format
