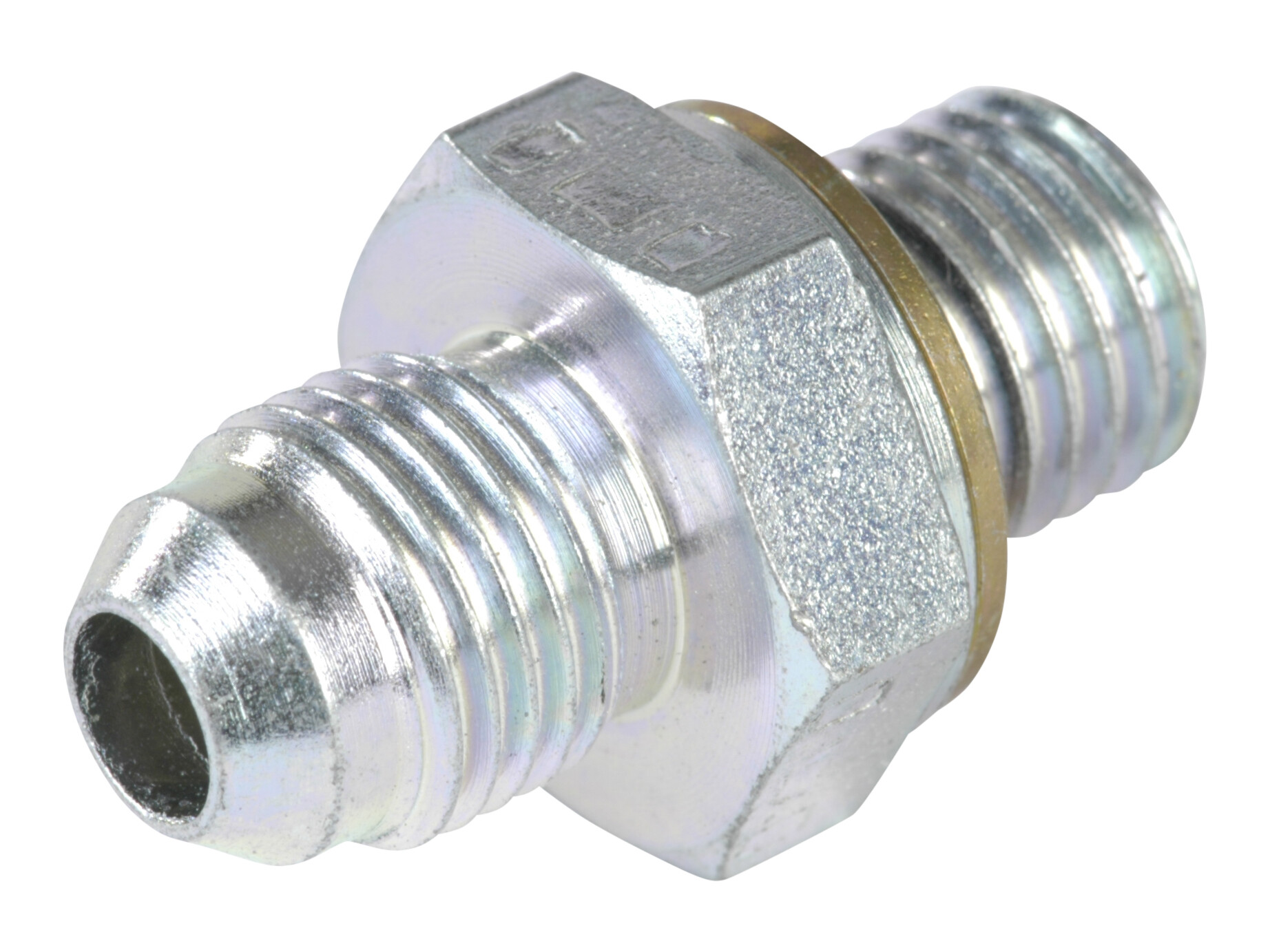

Indskruning 1/2-20 JIC udv x M12x1,5 udv

Indskruning 1/2-20 JIC udv x M12x1,5 udv

Varenummer:

M-08-12

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)

Mutter, UNF-1/2''-20

Partnumber: JM-05-8

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

8 mm

Dimension A

33 mm

Dimension B

14 mm

Dimension CH

19 mm

Dimension D

12 mm

Dimension F metric

M12x1,5

Dimension J

1/2-20 JIC

Dimension T

8 mm

Material

Stål

Pressure max.

416 bar

Surface treatment

El-forzinket / hvidkromatiseret

Thread outer

1/2-20 JIC

Thread outer metric

M12x1,5

Package size

0 pcs

Barcode

5704295981123

Gross weight

0,03 Kg

Net weight

0,03 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Indskruning 1/2-20 JIC udv x M12x1,5 udv

Note: Opening 3D files requires a program that supports the file format
