RFM-06-06 - Overgang 7/16-20 JIC omløber 7/16-20 JIC udv

RFM-06-06 - Overgang 7/16-20 JIC omløber 7/16-20 JIC udv

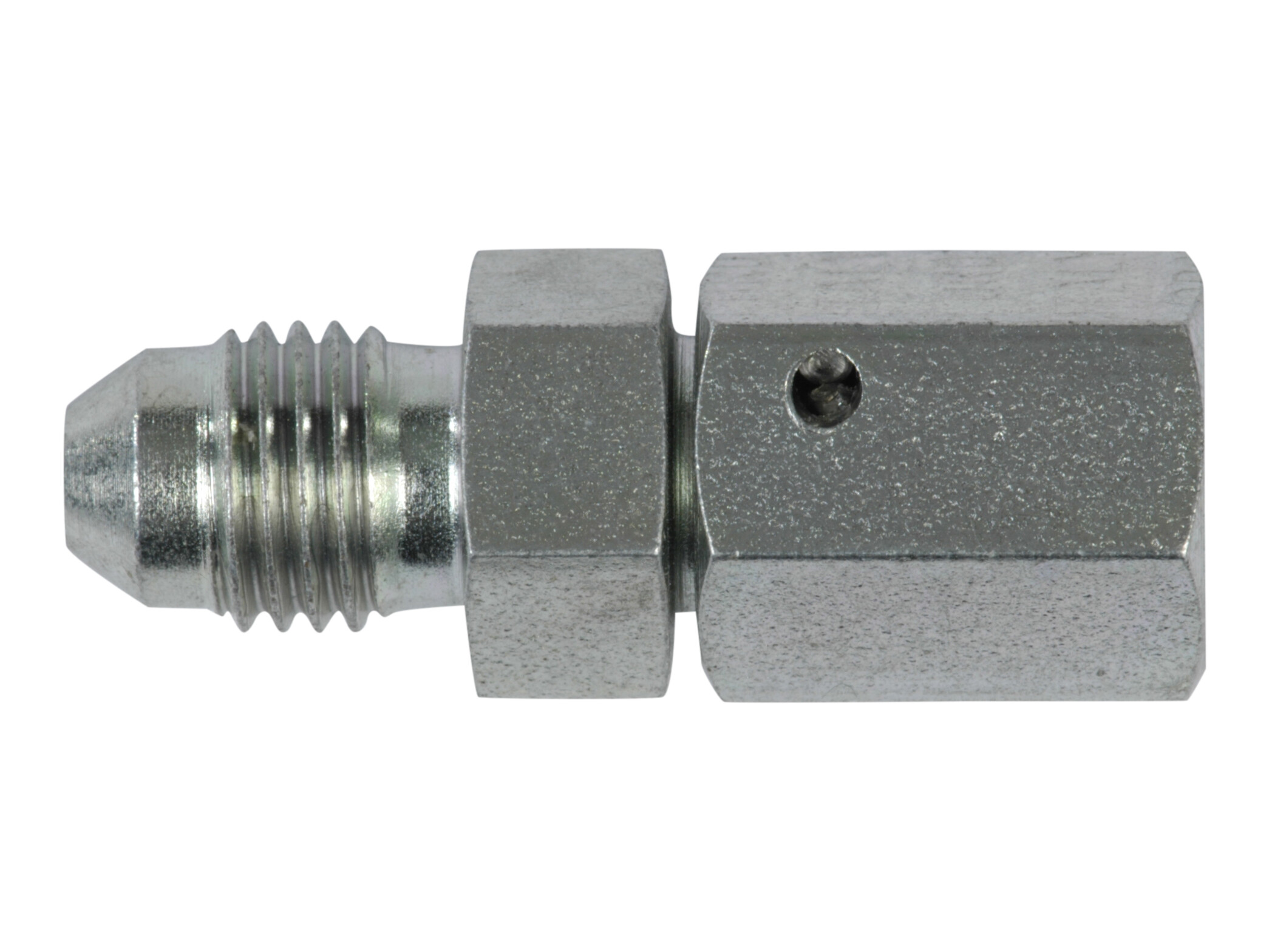

Overgang 7/16-20 JIC omløber 7/16-20 JIC udv

Partnumber:

RFM-06-06

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (2)

B-06 - Støttering Ø6

Partnumber: B-06

J-06 - Omløber 7/16-20 JIC Nøglevidde 14mm

Partnumber: J-06

Specifications
Dimensions and shipping

Diameter rør

6 mm

Dimension A

31 mm

Dimension CH

14 mm

Dimension J

9/16-18 JIC

Dimension J1

9/16-18 JIC

Gevind indvendig

7/16-20 JIC

Gevind udvendig

7/16-20 JIC

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Mærke navn

FOR

Overfladebehandling

El-forzinket / hvidkromatiseret

Tryk maks.

450 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334214410

Gross weight

0,02 Kg

Net weight

0,02 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Overgang 7/16-20 JIC omløber 7/16-20 JIC udv

Note: Opening 3D files requires a program that supports the file format
