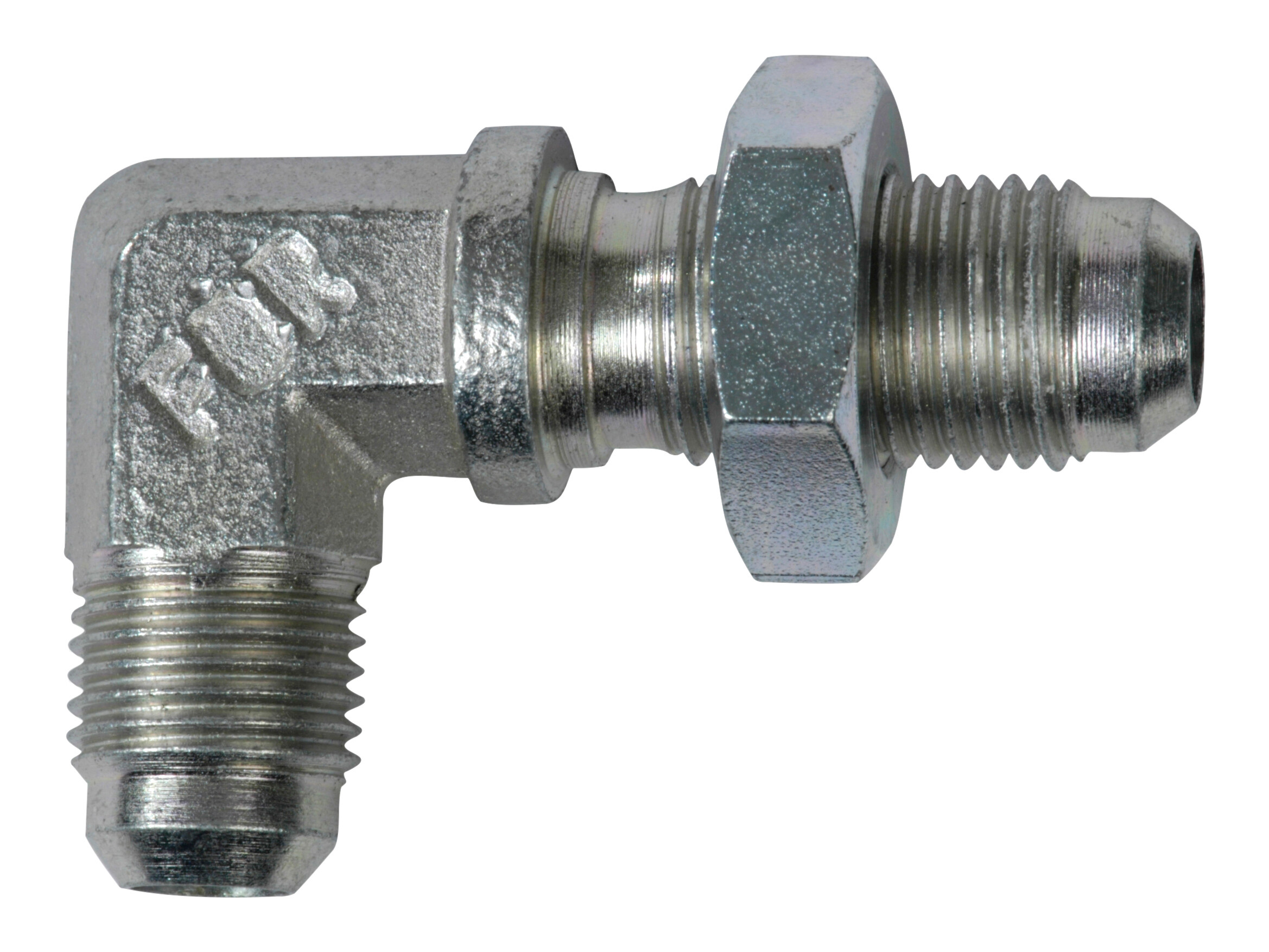

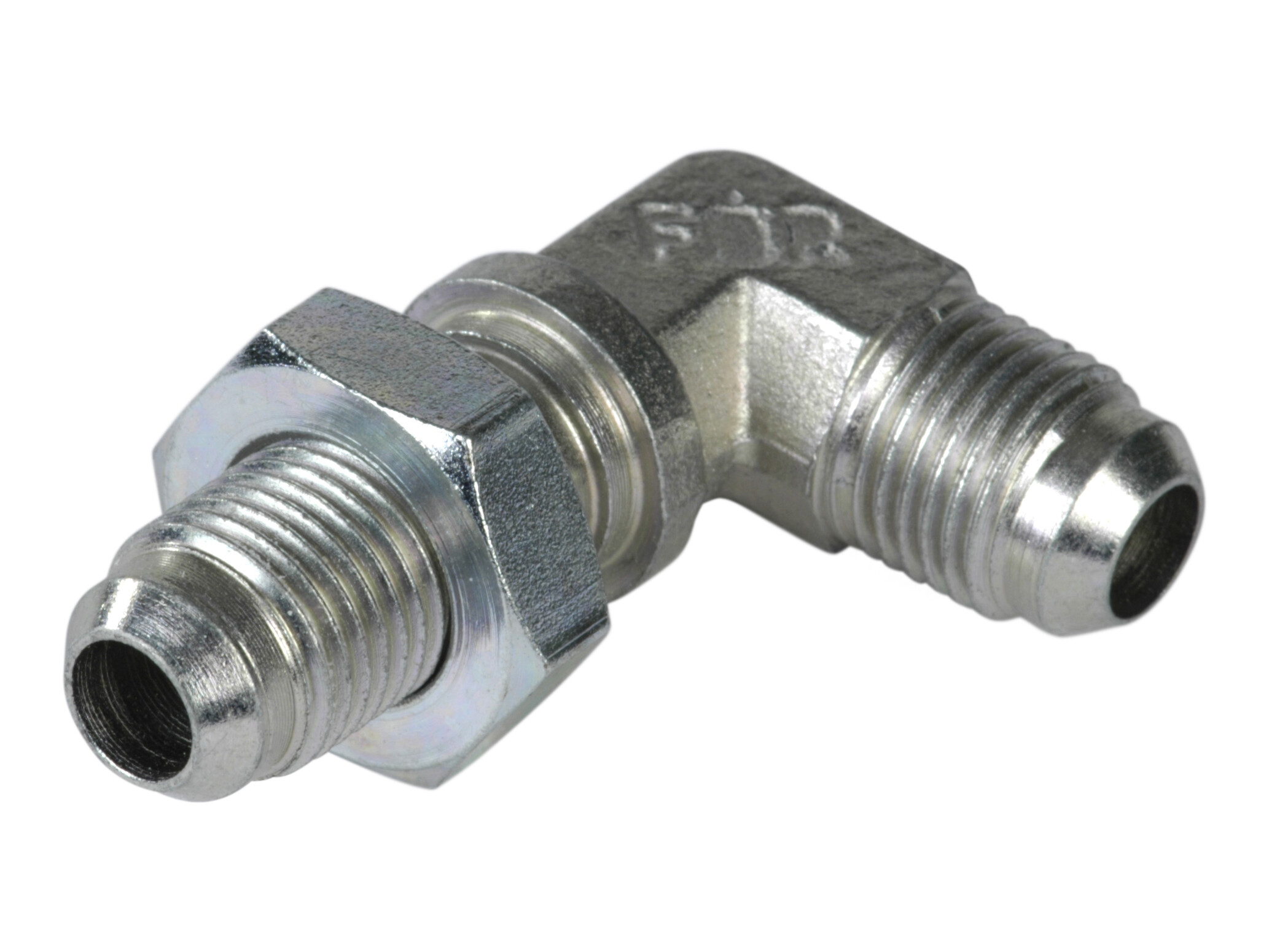

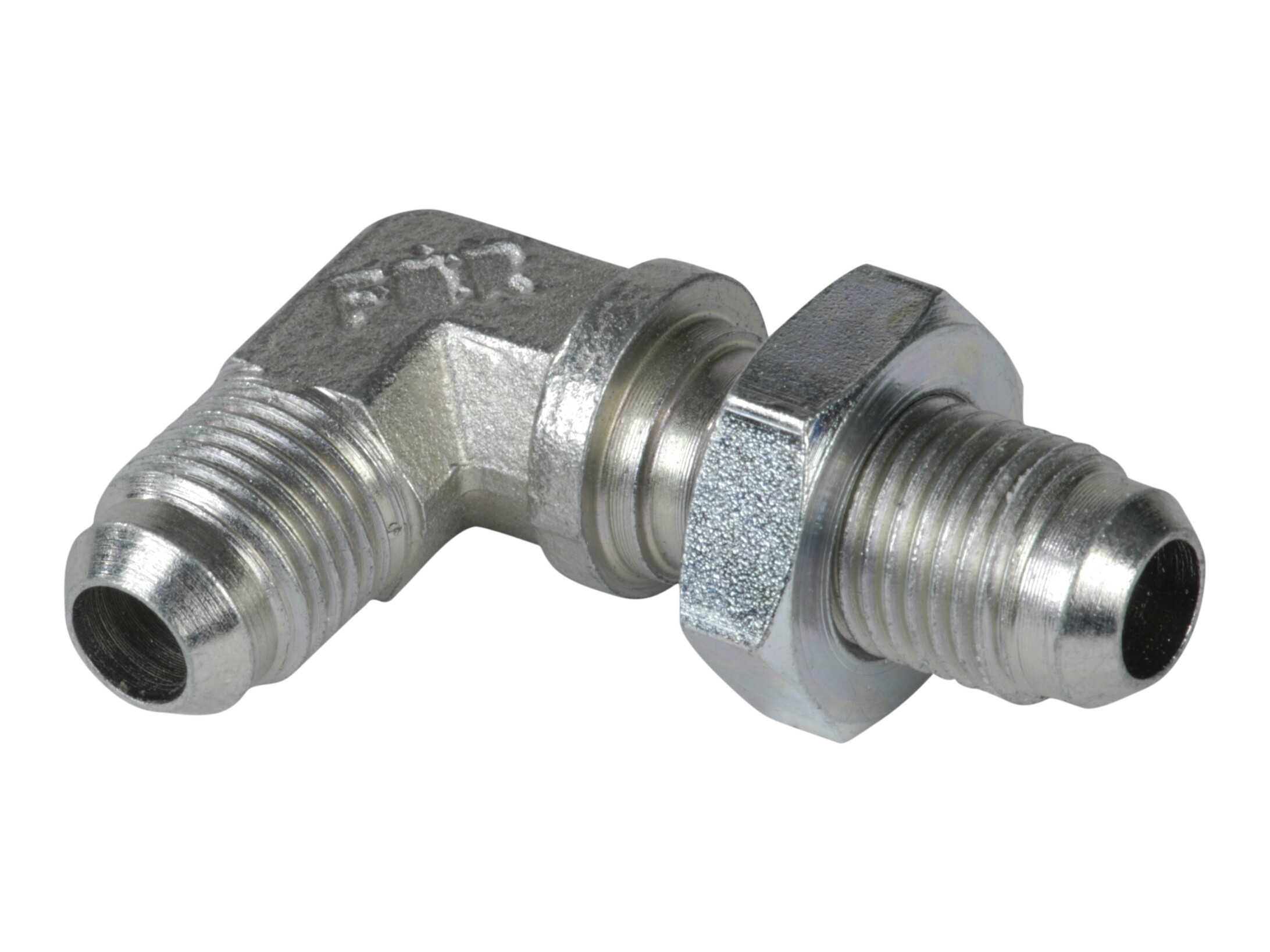

CUP-10 - Skotforskruning 90 gr 9/16-18 JIC udv x 9/16-18 JIC udv
Skotforskruning 90 gr 9/16-18 JIC udv x 9/16-18 JIC udv
Partnumber:
CUP-10
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
Dimension B
27.5 mm
Dimension C
46 mm
Dimension CH
22 mm
Dimension D
30 mm
Dimension J
9/16-18 JIC
Dimension J1
9/16-18 JIC
Dimension T
10 mm
Dimension T1
10 mm
Material
Stål
Pressure max.
350 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
9/16-18 JIC
Package size
0 pcs
Barcode
5704334103738
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
ITA
Intrastat code
73071110
Skotforskruning 90 gr 9/16-18 JIC udv x 9/16-18 JIC udv
