M-16-7/8 - Indskruning 7/8-14 JIC udv x 7/8-14 UNF udv NW27

M-16-7/8 - Indskruning 7/8-14 JIC udv x 7/8-14 UNF udv NW27

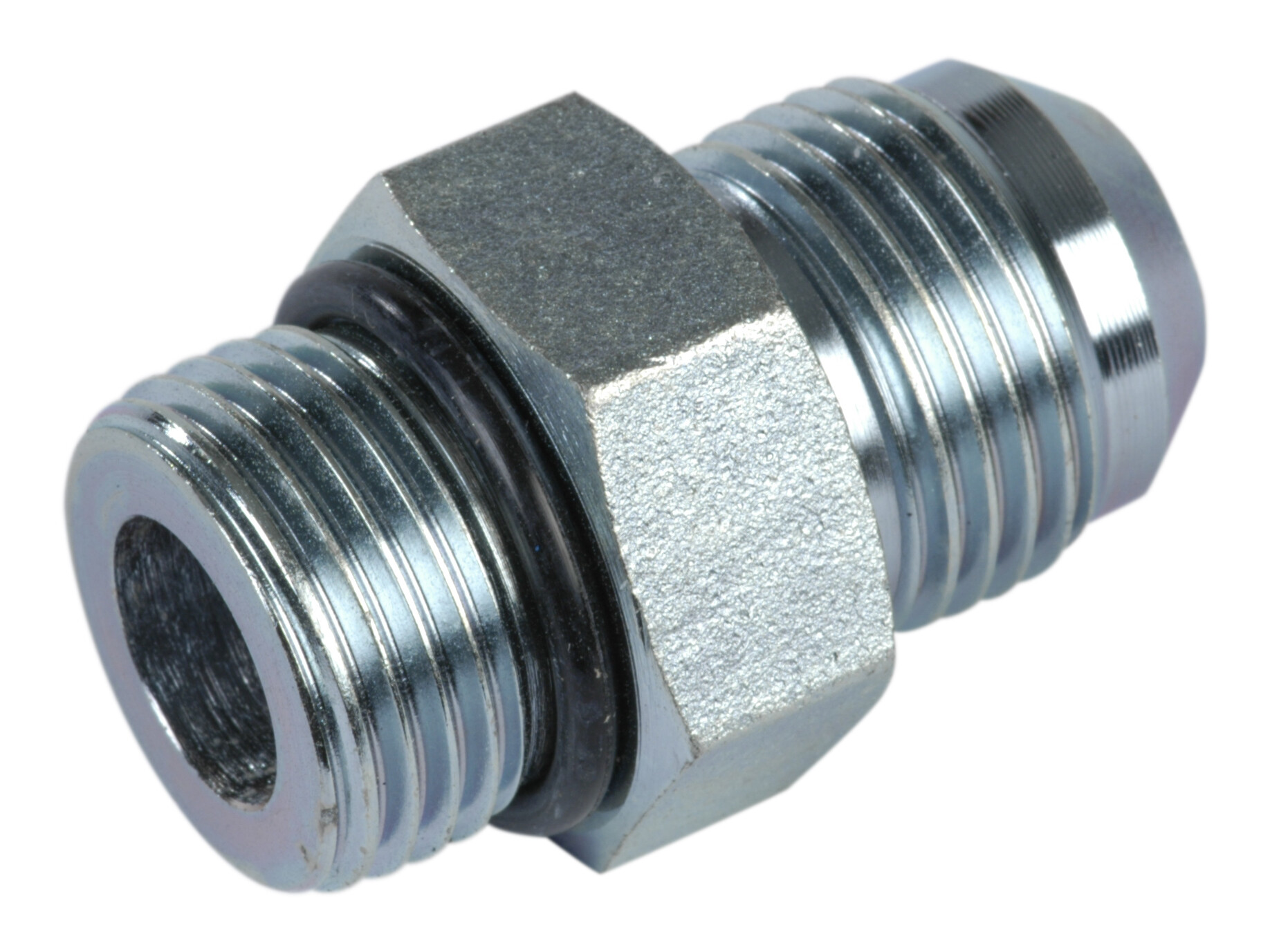

Indskruning 7/8-14 JIC udv x 7/8-14 UNF udv NW27

Varenummer:

M-16-7/8

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (2)

B-16 - Støttering Ø16

Partnumber: B-16

J-14/16 - Omløber 7/8-14 JIC Nøglevidde 27mm

Partnumber: J-14/16

Specifications
Dimensions and shipping

43 mm

19,5 mm

27 mm

13 mm

Diameter rør

14-15-16 mm

Dimension F

7/8-14 UNF

Gevind udvendig

7/8-14 JIC

Gevind udvendig

7/8-14 UNF

7/8-14 JIC

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Mærke navn

FOR

Overfladebehandling

El-forzinket / hvidkromatiseret

Pakningsmateriale

NBR

Standard ISO

ISO 11926

14-15-16 mm

Temperatur maks.

+120 °C

Temperatur min.

-20 °C

Tryk maks.

350 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334308959

Gross weight

0,15 Kg

Net weight

0,15 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Indskruning 7/8-14 JIC udv x 7/8-14 UNF udv NW27

Note: Opening 3D files requires a program that supports the file format
