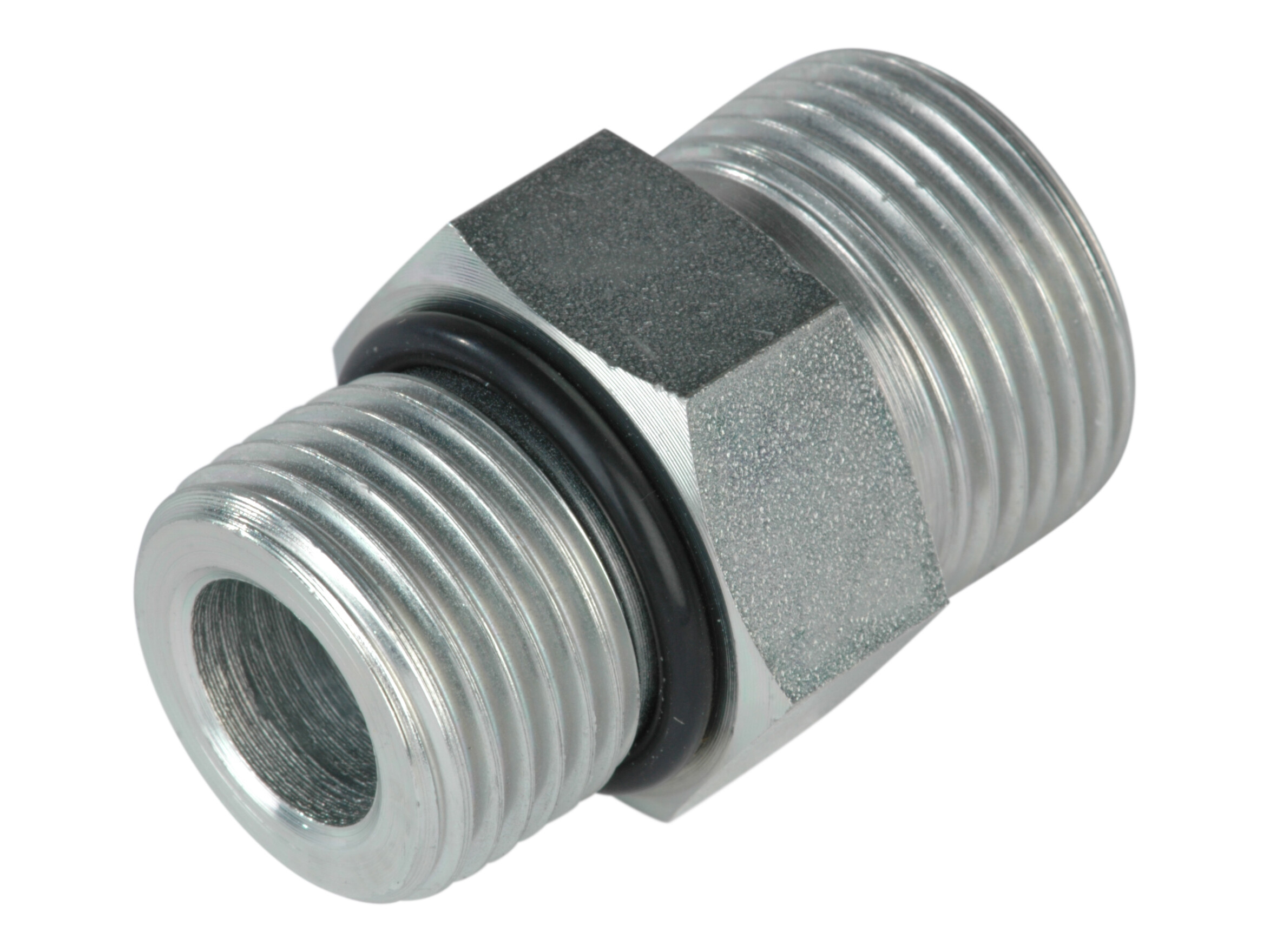

Nippel 1" ORFS x 7/8" SAE

Partnumber:

103FR1010

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Dimension A

43.1 mm

Dimension B1

15.5 mm

Dimension CH

27 mm

Dimension D

16 mm

Gevind udvendig

1-14 ORFS

Gevind udvendig

7/8-14 UNF

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Mærke navn

FOR

Overfladebehandling

El-forzinket / hvidkromatiseret

Pakningsmateriale

NBR

Temperatur maks.

+100 °C

Temperatur min.

-35 °C

Tryk maks.

420 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704295801810

Gross weight

0,12 Kg

Net weight

0,12 Kg

Country of origin

ITA

Intrastat code

73071110

Product information

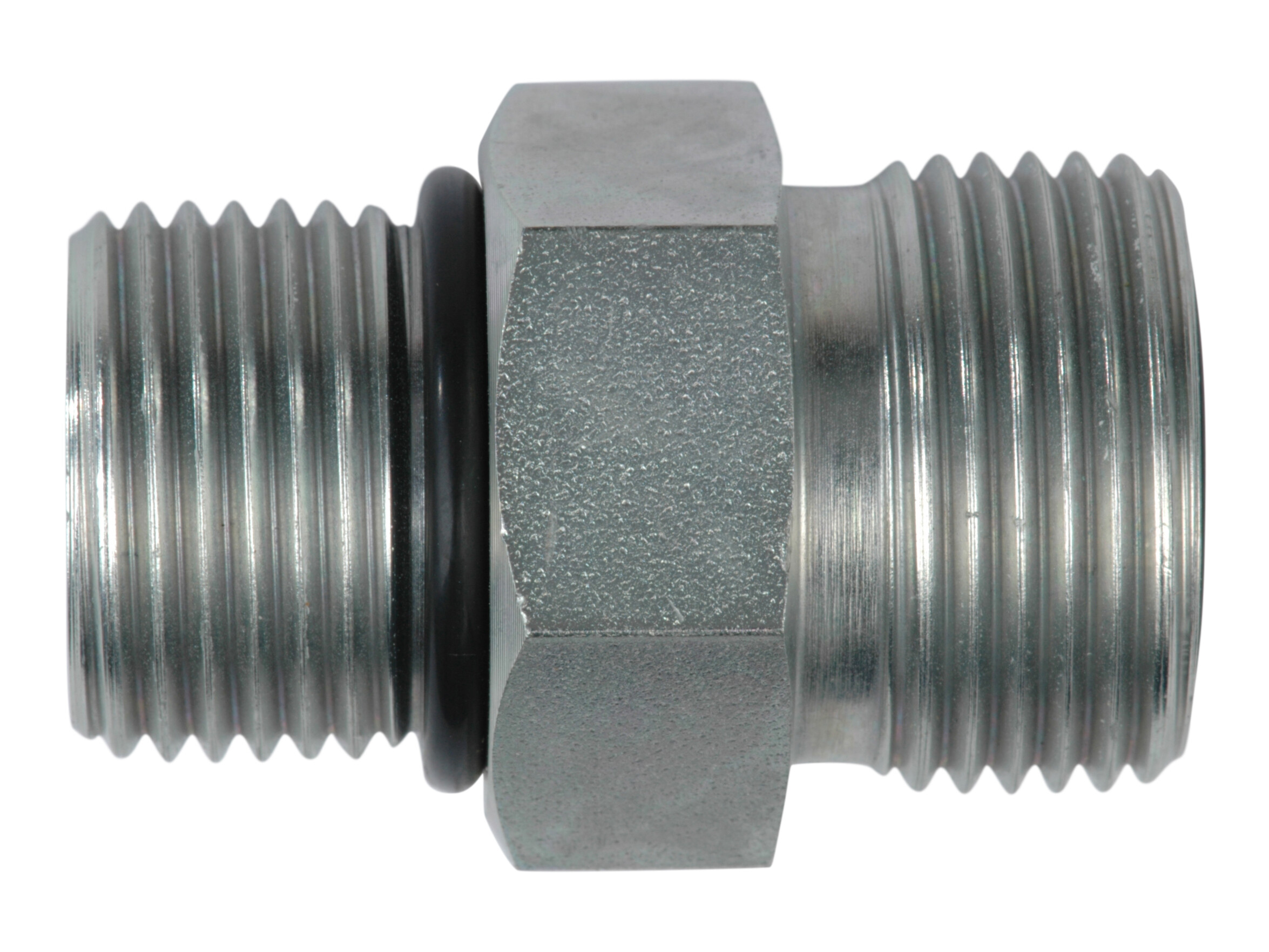

Measure sketch

Nippel 1" ORFS x 7/8" SAE

Note: Opening 3D files requires a program that supports the file format
