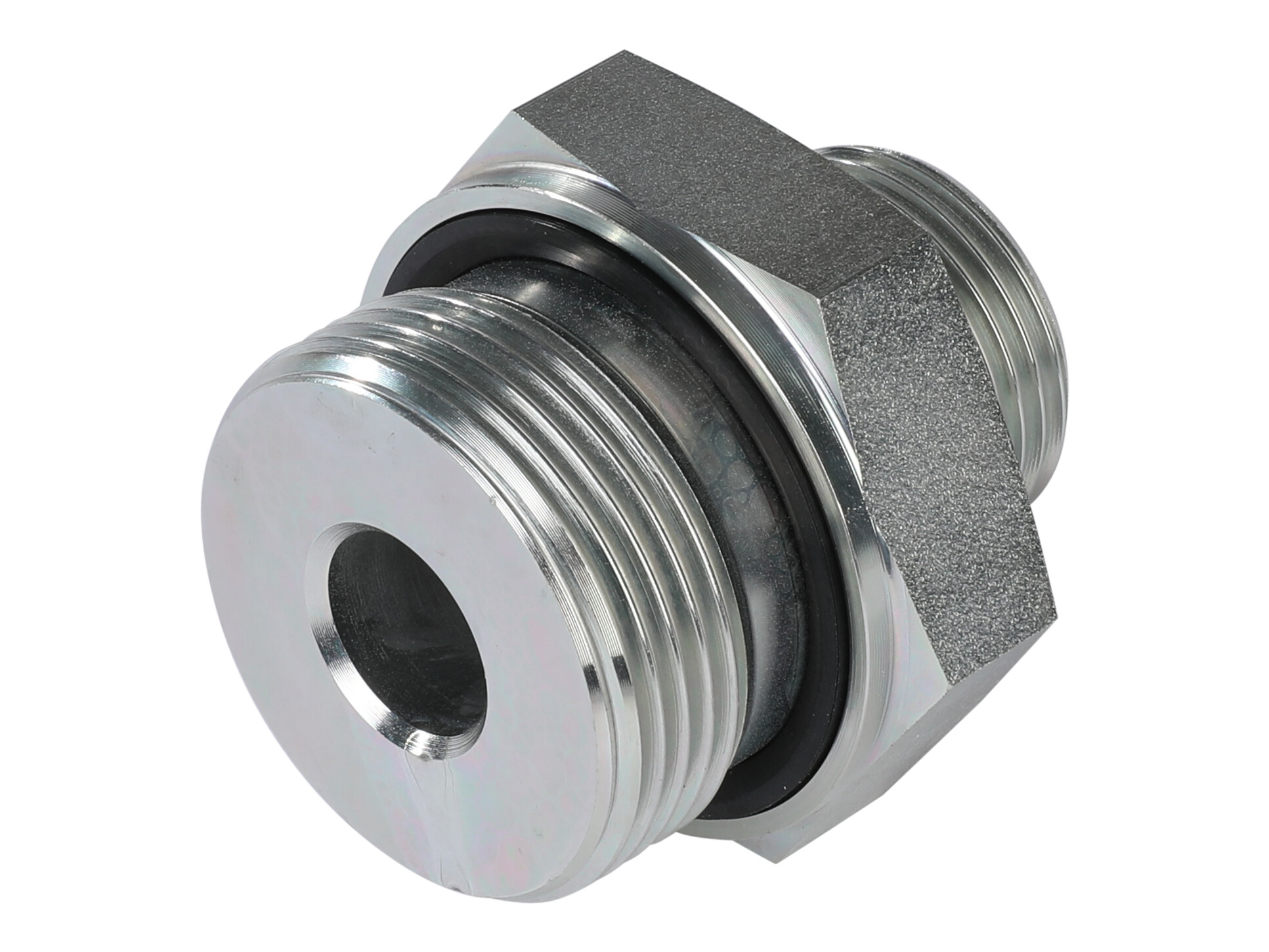

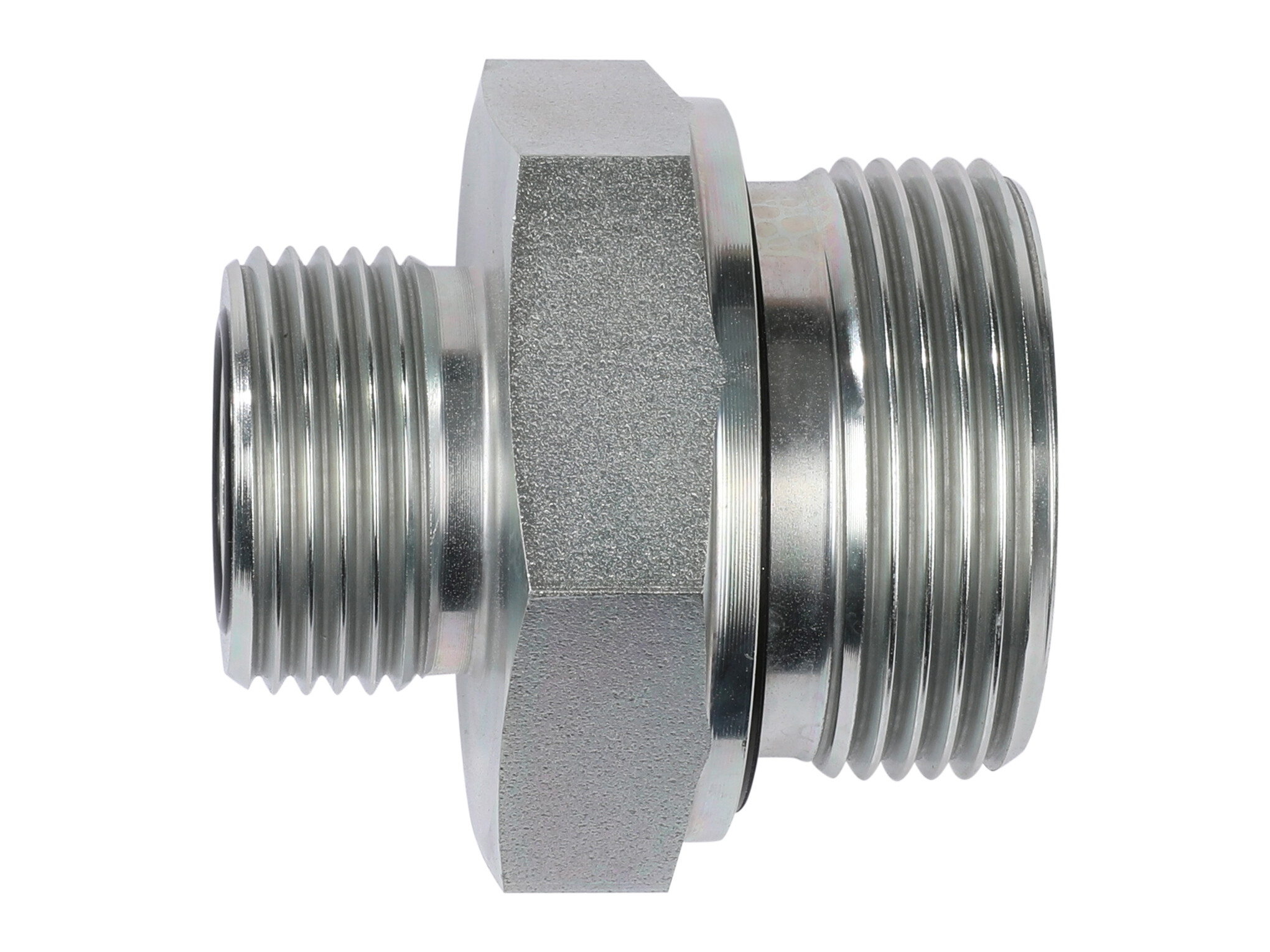

Nippel 1.1/4 BSP x 1.3/16" ORFS
Nippel 1.1/4 BSP x 1.3/16" ORFS
Partnumber:
103FB2012
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Dimension A
53 mm
Dimension B
17 mm
Dimension CH
50 mm
Dimension D
20 mm
Material
Stål
Model code
SA502146/2042
Pressure max.
250 bar
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
1.3/16-12 ORFS
Thread outer
G 1.1/4 BSP
Package size
0 pcs
Barcode
5704334584278
Gross weight
0,46 Kg
Net weight
0,46 Kg
Country of origin
ITA
Intrastat code
73071110
Nippel 1.1/4 BSP x 1.3/16" ORFS
