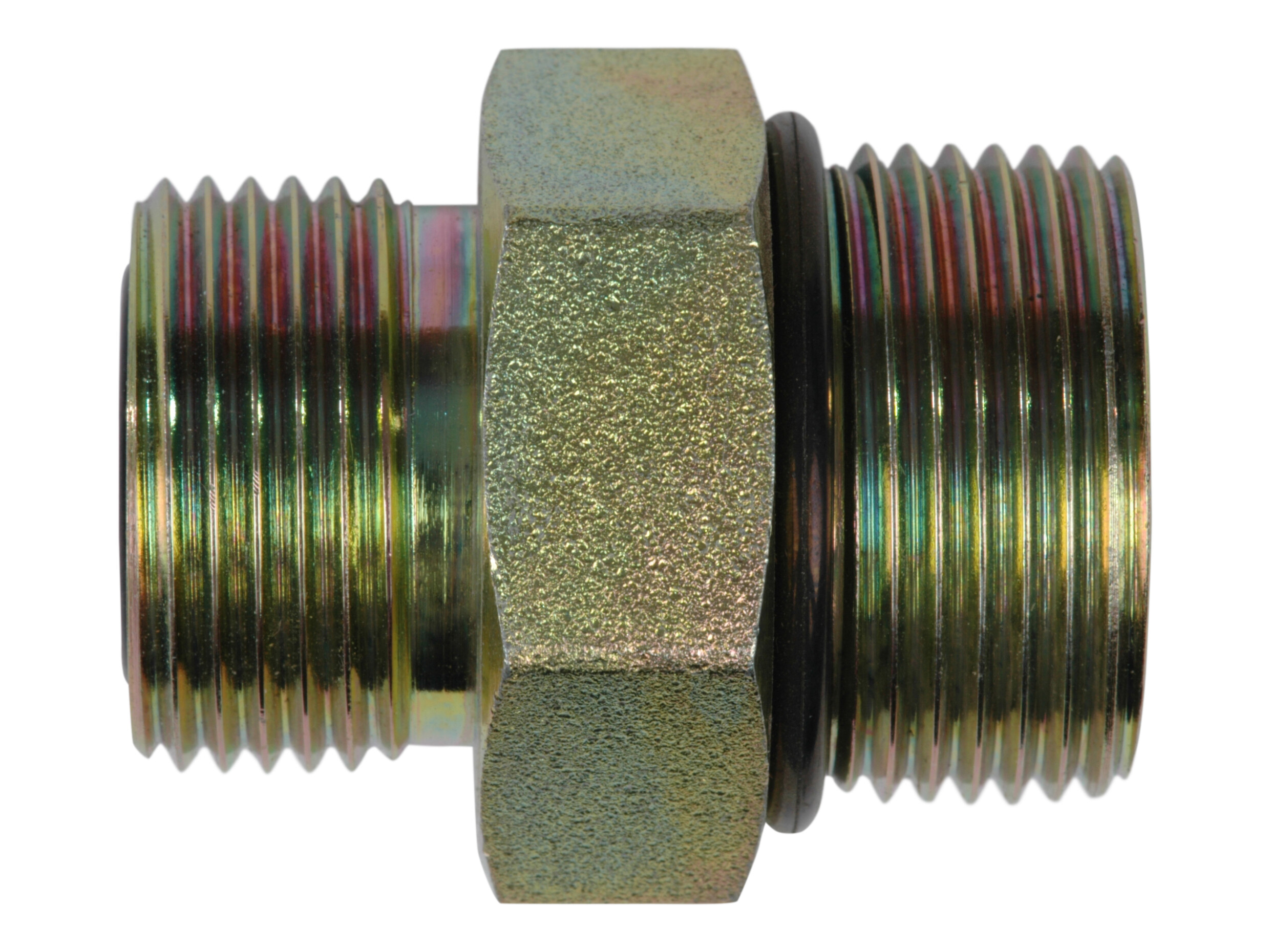

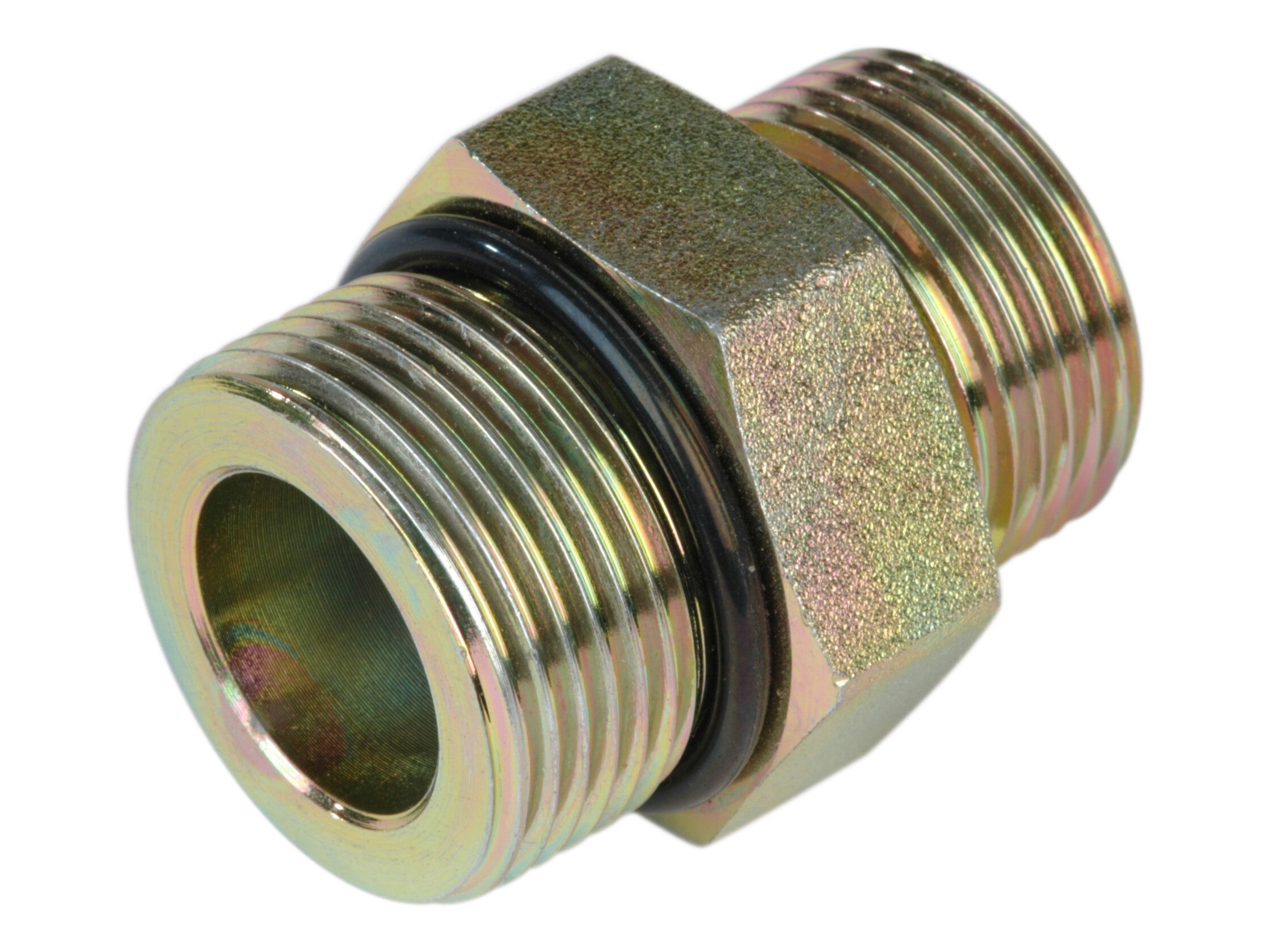

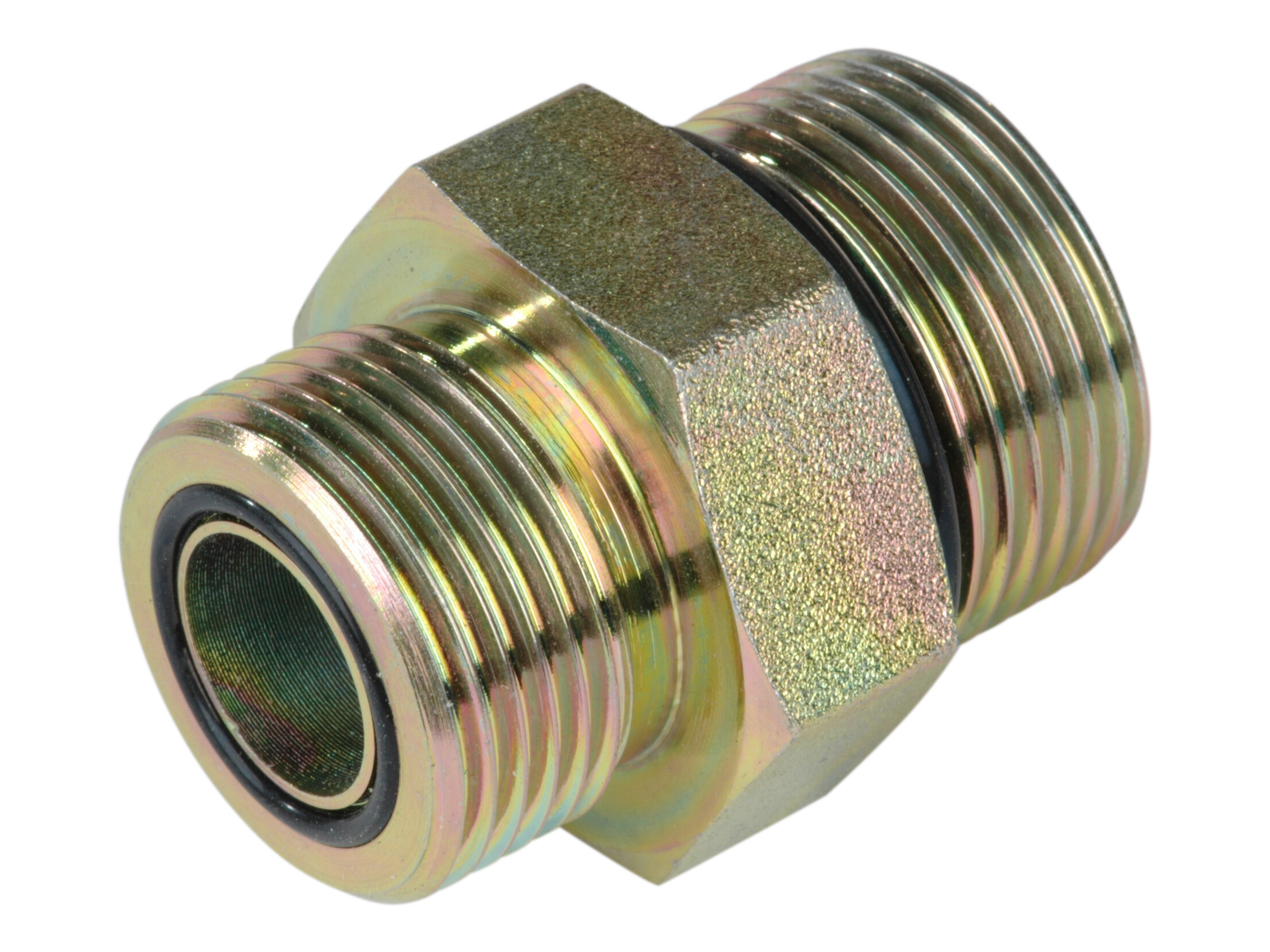

Nippel 1.3/16"ORFSx1.5/16"SAE
Nippel 1.3/16"ORFSx1.5/16"SAE
Varenummer:
103FR1216
Pakke str.:
0 stk
Min. bestillingsenhed er:
1 stk

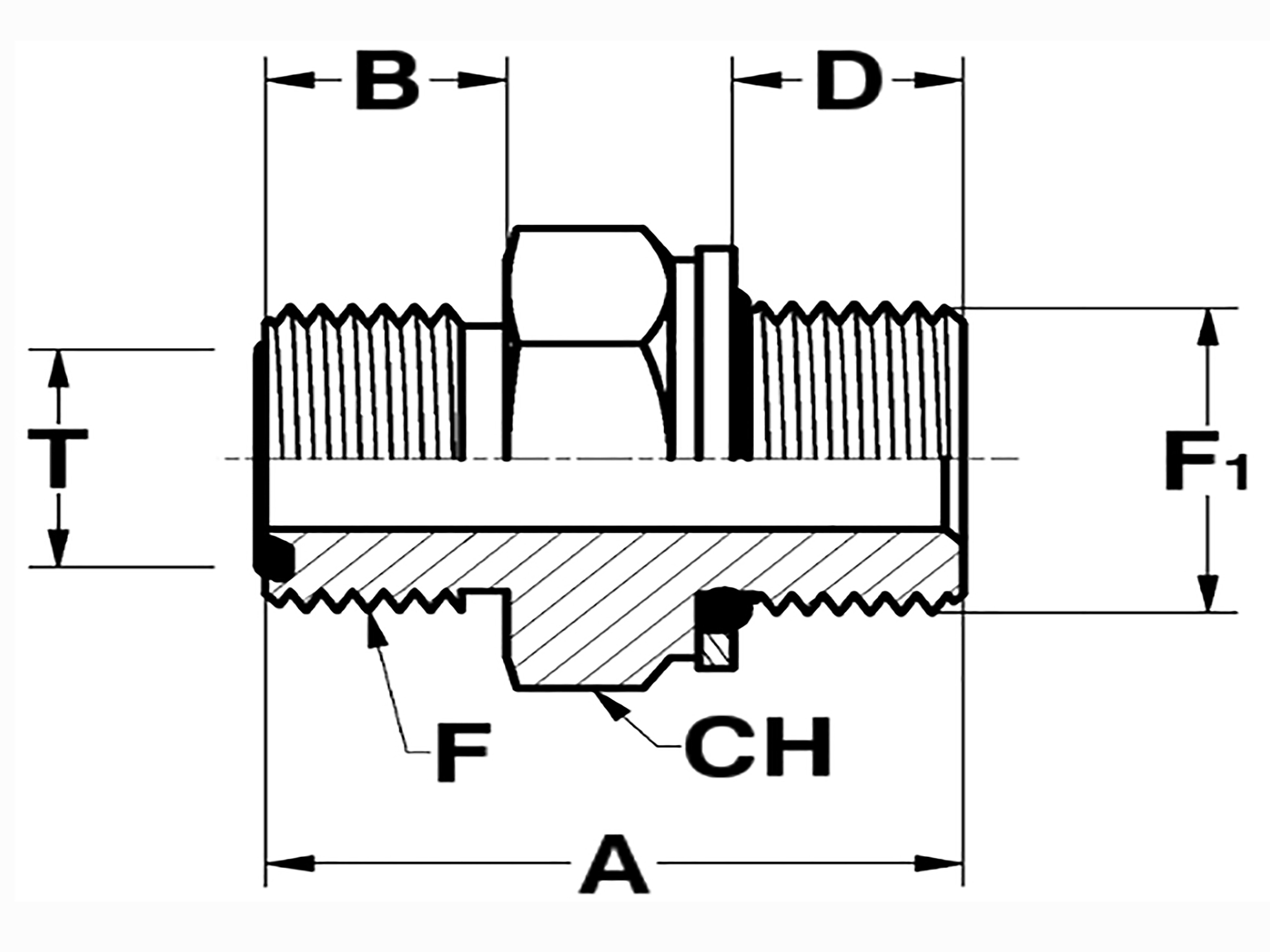

A
50 mm
Angle
0 °
B
17 mm
Brand Name
FOR
CH
38 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
18,5 mm
F
1.3/16-12 ORFS
F1
1.5/16-12 UNF
Material
Stål
Pressure max.
420 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket
T
18-20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.3/16-12 ORFS
Thread outer
1.5/16-12 UNF
Package size
0 stk
Barcode
5704295804392
Gross weight
0,23 Kg
Net weight
0,23 Kg
Country of origin
ITA
Intrastat code
73071110
Nippel 1.3/16"ORFSx1.5/16"SAE
