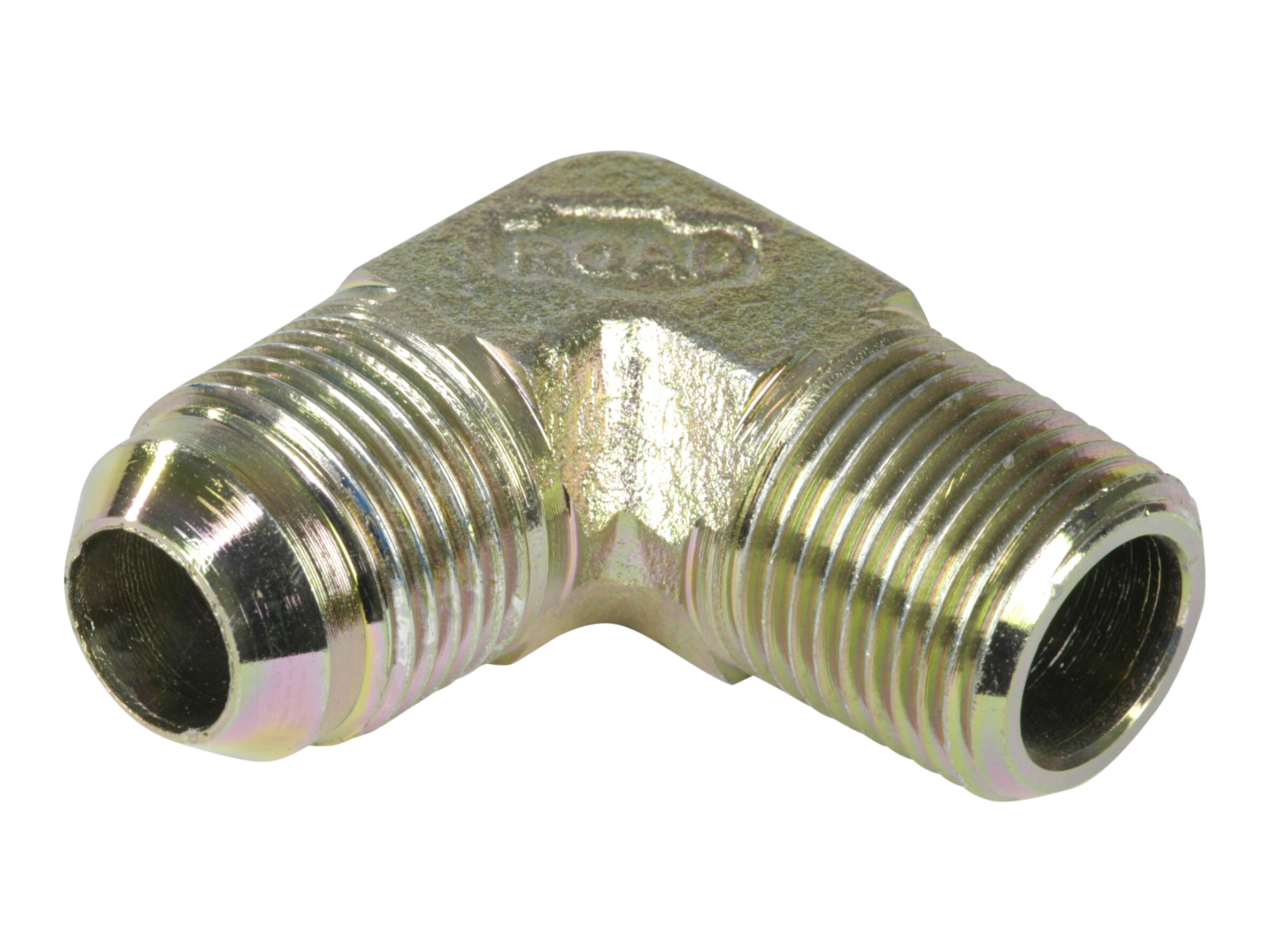

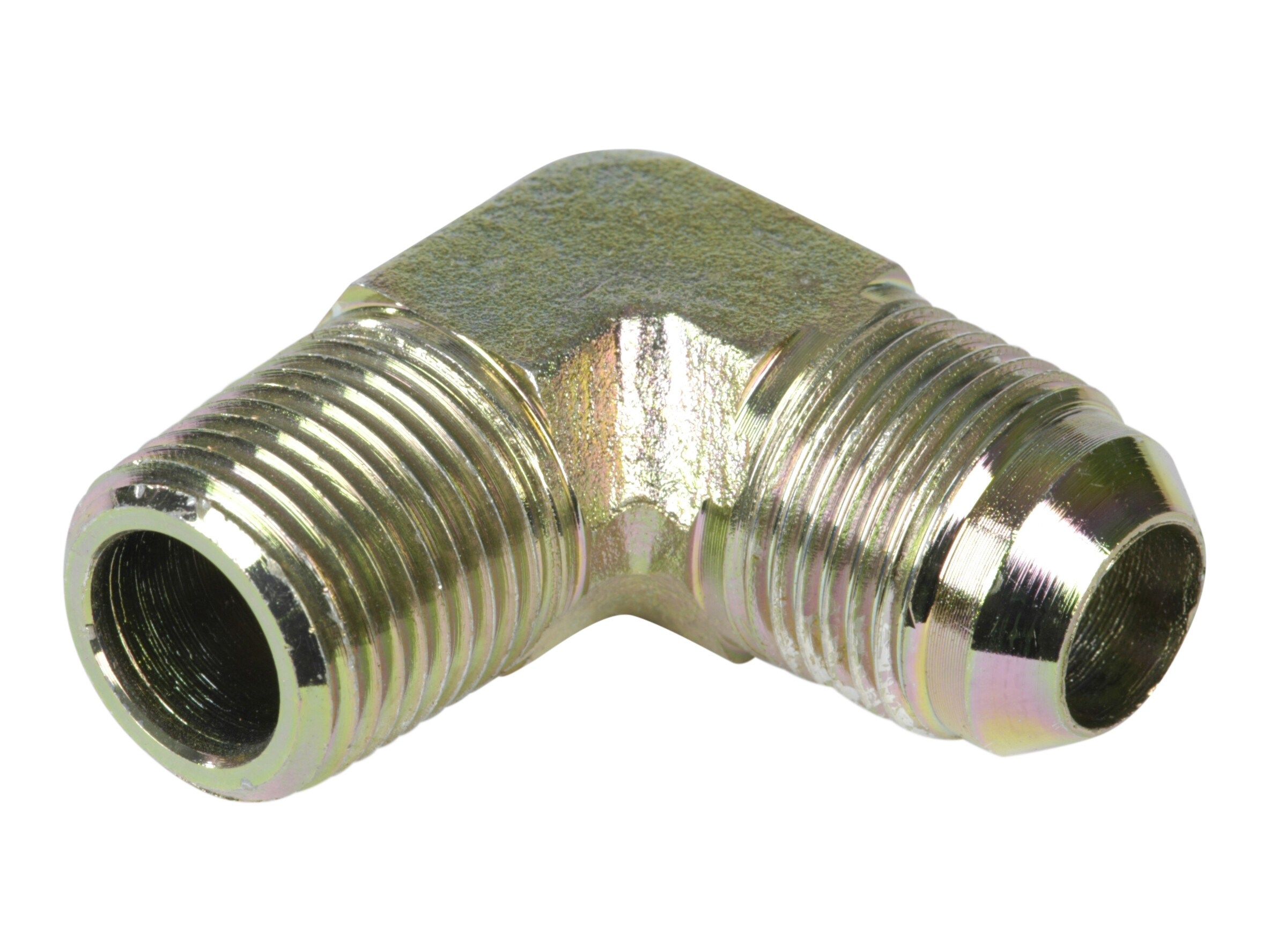

Vinkelindskruning 90 gr 7/8-14 JIC udv x 1/2 NPT udv
Vinkelindskruning 90 gr 7/8-14 JIC udv x 1/2 NPT udv
Partnumber:
C1-16-1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
16 mm
Dimension B
36.5 mm
Dimension C
37 mm
Dimension F
1/2 NPT
Dimension J
7/8-14 JIC
Dimension T
16 mm
Material
Stål
Pressure max.
350 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
1/2 NPT
Thread outer
7/8-14 JIC
Package size
0 pcs
Barcode
5704334274155
Gross weight
0,12 Kg
Net weight
0,12 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 90 gr 7/8-14 JIC udv x 1/2 NPT udv
Note: Opening 3D files requires a program that supports the file format
