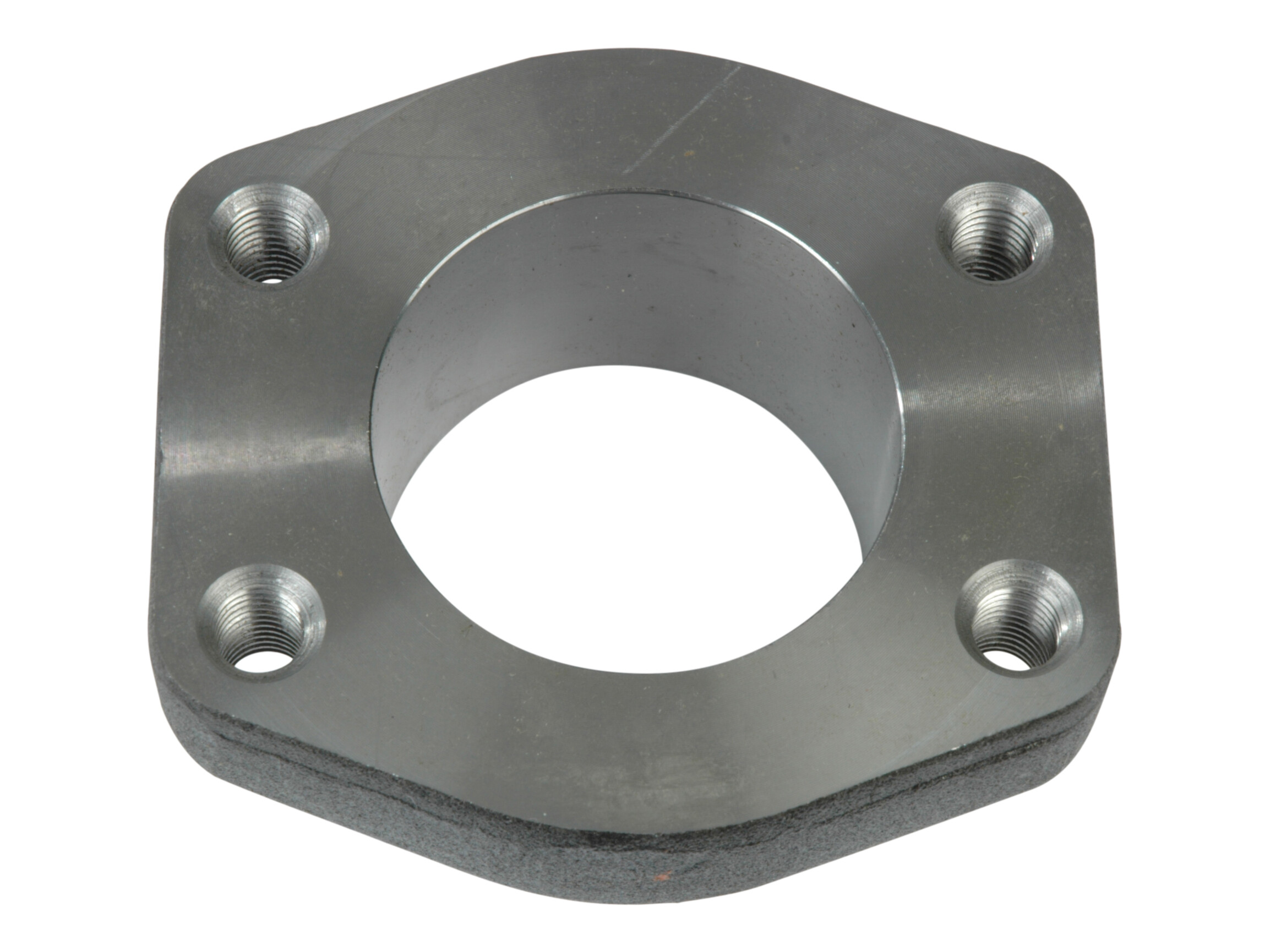

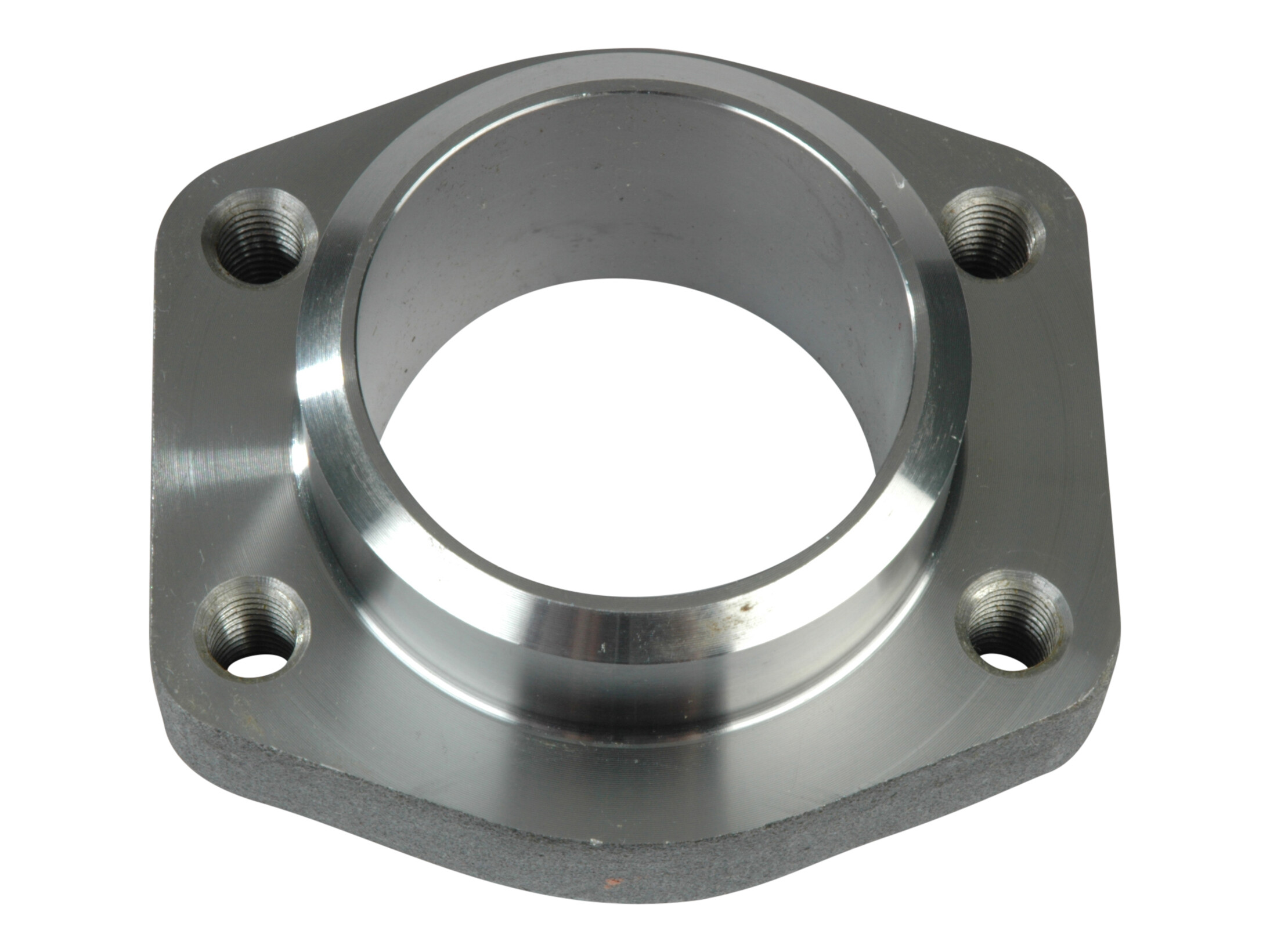

Stuksvejseflange 2.1/2" SAE3000

Partnumber:

GFS110ST

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (1)

O-ring 90S

Partnumber: 69.44X3.53S

Specifications
Dimensions and shipping

Brand Name

Havit

Diameter Weld butt

77 mm

Diameter flange

84.1 mm

Dimension C

88.9 mm

Dimension E

50.8 mm

Flange

2.1/2 "

Flange SAE/DIN

3000 PSI

Material

Stål

O-ring

69.44X3.53 mm

Pressure max.

175 bar

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperature max.

+90 °C

Temperature min.

-40 °C

Thread of bolt metric

M12

Package size

0 pcs

Barcode

5704295919287

Gross weight

1,40 Kg

Net weight

1,40 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Stuksvejseflange 2.1/2" SAE3000
