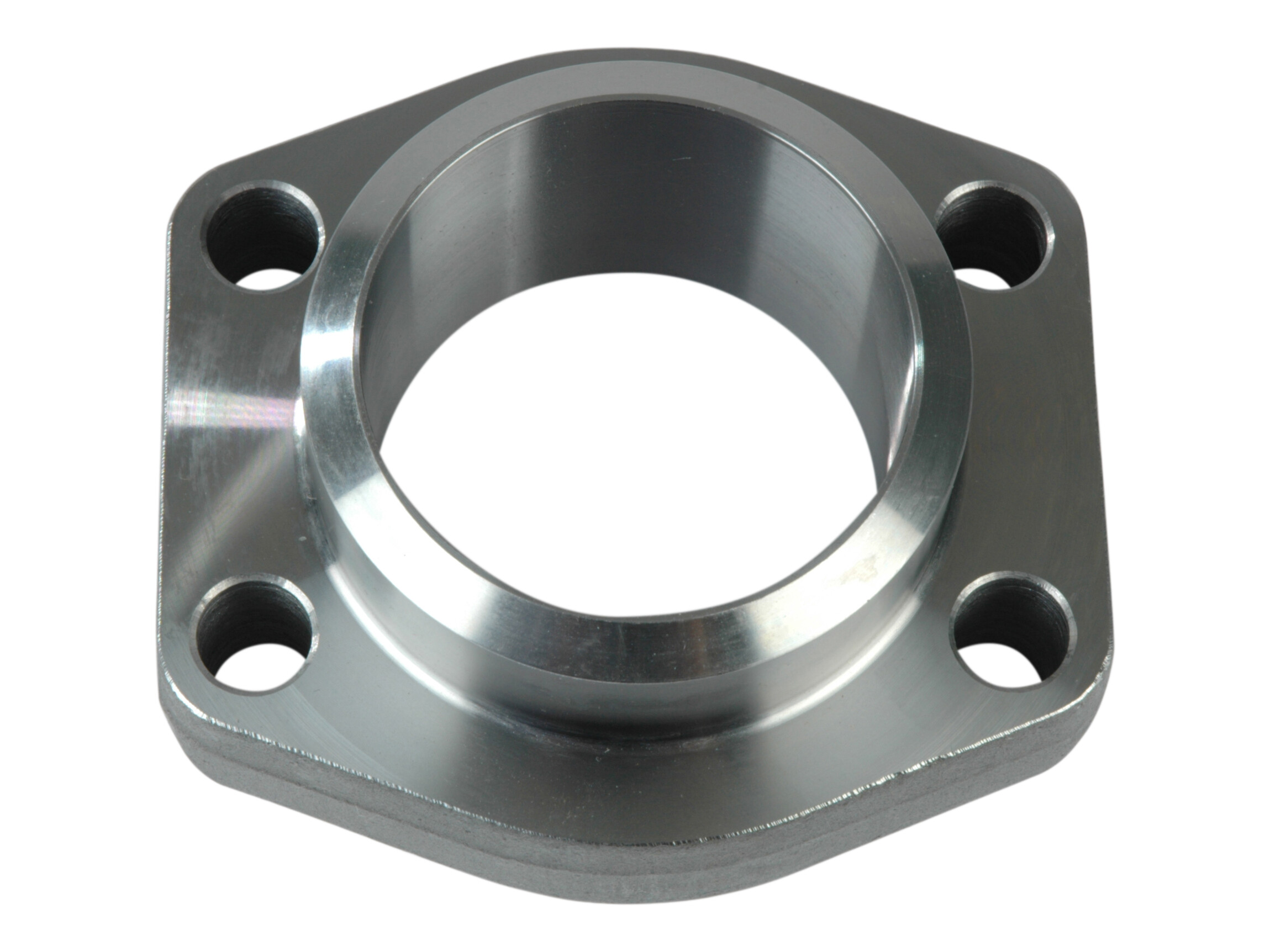

Stuksvejseflange 2.1/2" SAE3000

Varenummer:

AFS110ST

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)

O-ring 90S

Partnumber: 69.44X3.53S

Specifications
Dimensions and shipping

Antal bolte

Bolt dimension

M12x45 mm

Diameter flange

84.1 mm

Dimension C

88.9 mm

Dimension E

50.8 mm

Flange

2.1/2 "

Flange SAE/DIN

3000 PSI

Materiale

Stål

Mærke navn

Havit

O-ring

69.44X3.53 mm

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

175 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704295320700

Gross weight

1,40 Kg

Net weight

1,40 Kg

Country of origin

DEU

Intrastat code

73079100

Product information

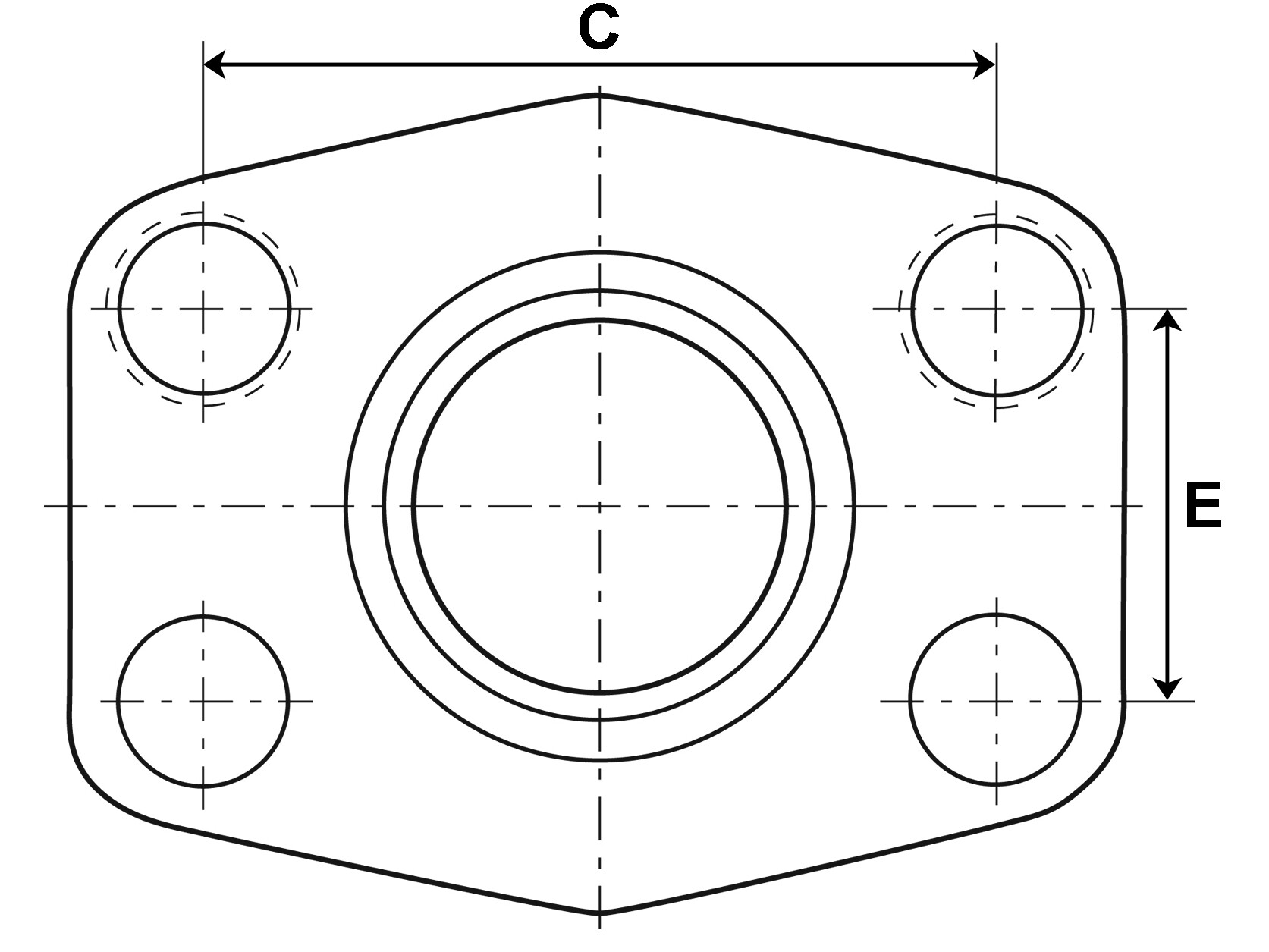

Measure sketch

Stuksvejseflange 2.1/2" SAE3000
