3/4 nåleventil, Tognella

Mængdereguleringsventil med reguleret mængde i begge flowretninger. Plastreguleringshåndtag og indstillingsskala.

Varenummer:

FT257/1-3/4

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tillbehör (1)

Panelmøtrik, Tognella(M40x1,5)

Partnumber: FT257-3/4

Specifications
Dimensions and shipping

Dimension A

G 3/4 BSP

Dimension B

17 mm

Dimension C

86 mm

Dimension CH

40 mm

Dimension D

120.5 mm

Dimension E

132.5 mm

Dimension F1

100 mm

Dimension G

26.5 mm

Dimension H metrisk

M40x1,5 mm

Flow Nominel

80 lpm

Gevind

G 3/4 BSP

Temperatur maks.

+100 °C

Temperatur min.

-20 °C

Tryk maks.

400 bar

Trykkompenseret

Nej

Package size

0 pcs

Barcode

5704295025971

Gross weight

1,25 Kg

Net weight

1,25 Kg

Country of origin

ITA

Intrastat code

84812010

Product information

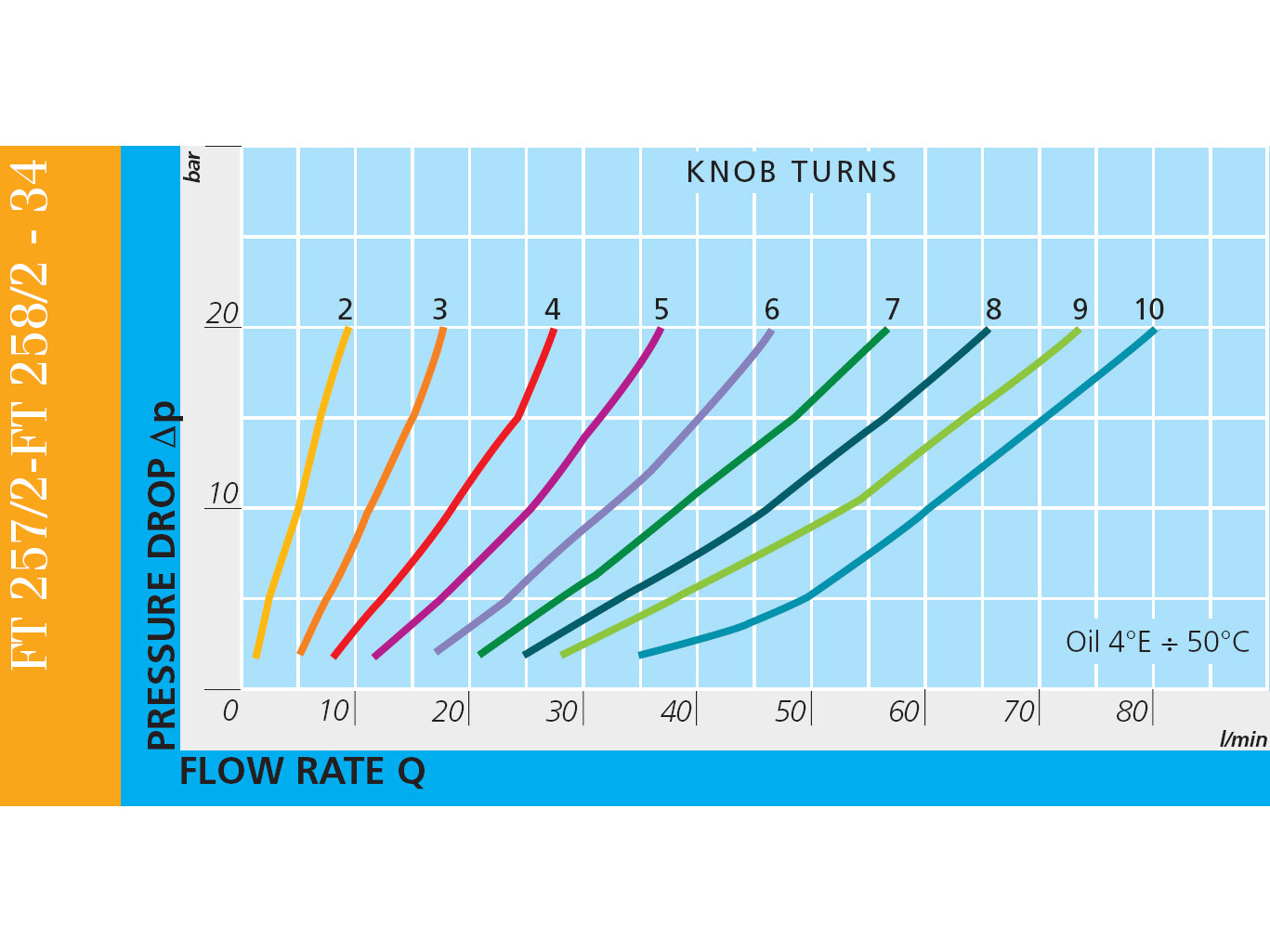

Measure sketch

Mængdereguleringsventil med reguleret mængde i begge flowretninger. Plastreguleringshåndtag og indstillingsskala.
