AFS08090G06M - Vinkelflange 1/2" SAE3000 x 3/8" BSP - komplet

AFS08090G06M - Vinkelflange 1/2" SAE3000 x 3/8" BSP - komplet

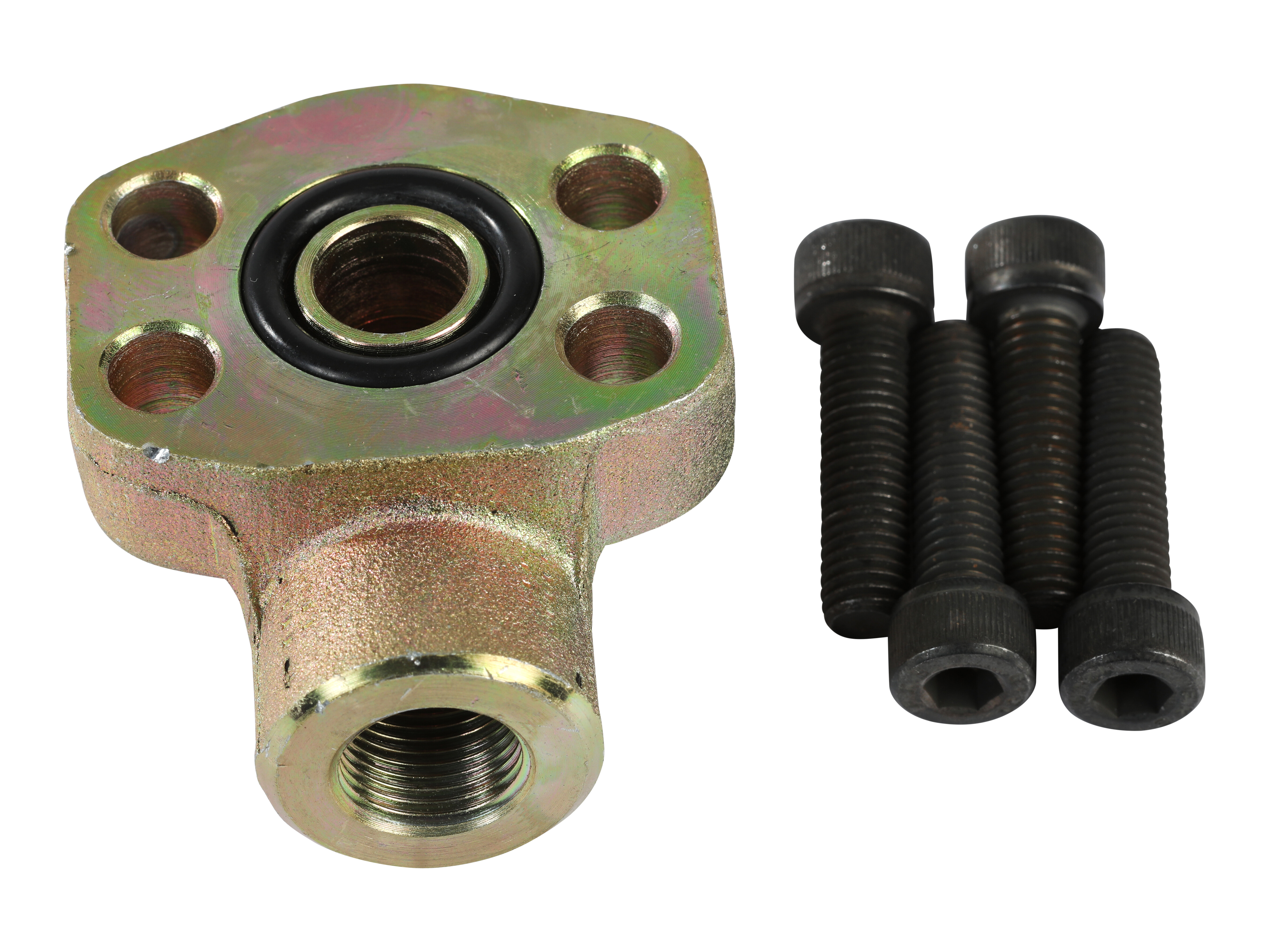

Vinkelflange 1/2" SAE3000 x 3/8" BSP - komplet

Partnumber:

AFS08090G06M

Package size:

0 pcs

Min. order quantity is:

1 pcs

Reservdelar (1)

18.64X3.53S - O-ring 90S

Partnumber: 18.64X3.53S

Specifications
Dimensions and shipping

Antal bolte

Bolt dimension

M8x30 mm

38,1 mm

Diameter flange

30.2 mm

17,5 mm

Flange

1/2 "

Flange SAE/DIN

3000 PSI

Gevind indvendig

G 3/8 BSP

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Stål

Mærke navn

Havit

O-ring

18.64X3.53 mm

Overfladebehandling

Zink-Nikkel belagt

Pakningsmateriale

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

350 bar

Vinkel

90 °

Package size

0 pcs

Barcode

5704295924366

Gross weight

0,29 Kg

Net weight

0,29 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Vinkelflange 1/2" SAE3000 x 3/8" BSP - komplet
