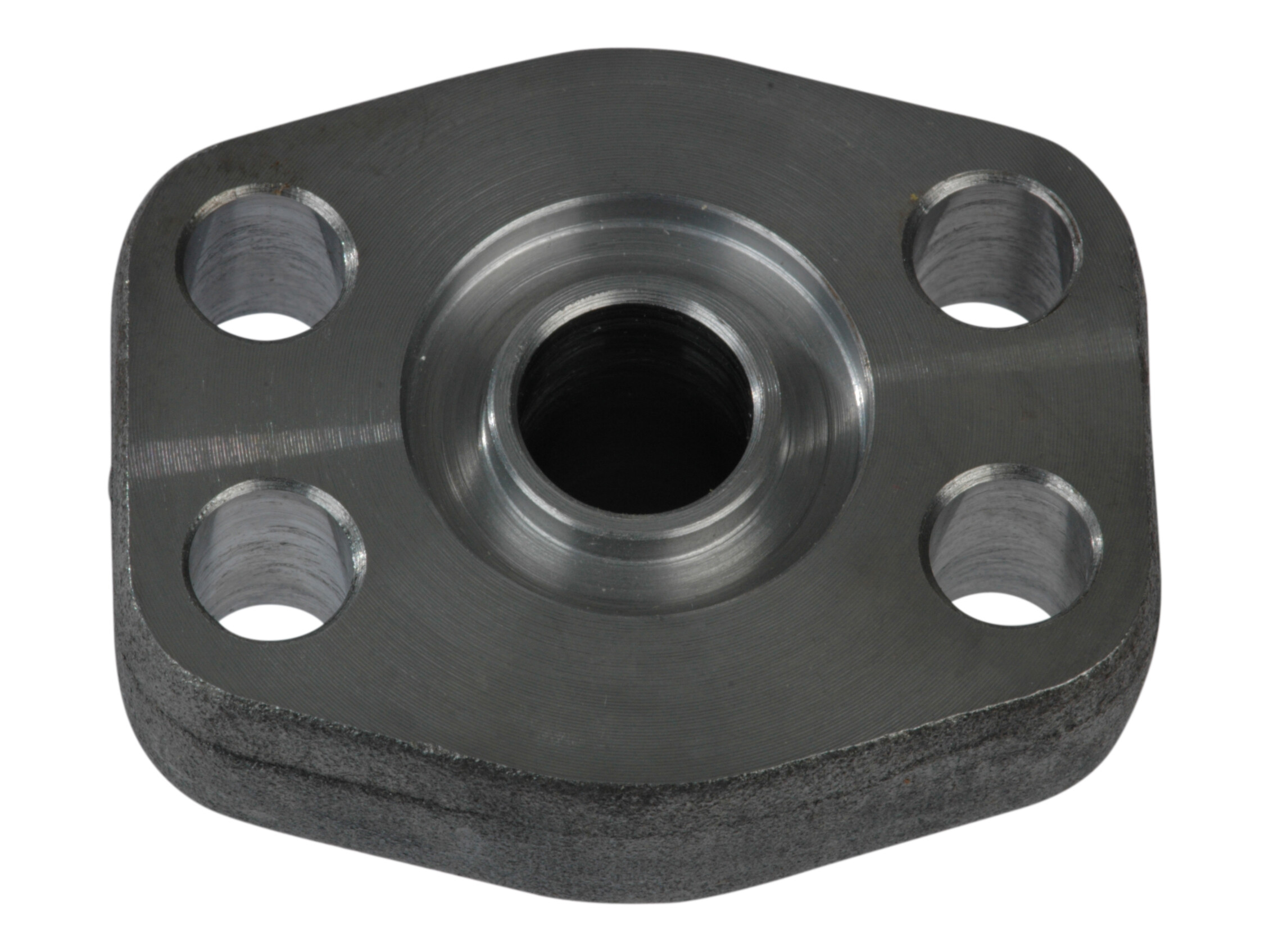

Stuksvejseflange 1/2" SAE6000
Stuksvejseflange 1/2" SAE6000
Partnumber:
AFS401ST-012
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Bolt dimension
M8x30 mm
Brand Name
Havit
Diameter Weld butt
21.5 mm
Diameter flange
31.8 mm
Dimension C
40.5 mm
Dimension E
18.2 mm
Flange
1/2 "
Flange SAE/DIN
6000 PSI
Material
Stål
O-ring
18.64X3.53 mm
Pressure max.
420 bar
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 pcs
Barcode
5704334244431
Gross weight
0,29 Kg
Net weight
0,29 Kg
Country of origin
DEU
Intrastat code
73079100
Stuksvejseflange 1/2" SAE6000
